#include <CUScene2.h>

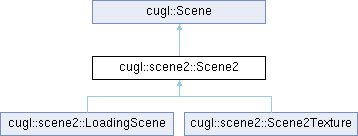

Inheritance diagram for cugl::scene2::Scene2:

Public Member Functions
	Scene2 ()

	~Scene2 ()

virtual void	dispose () override

virtual bool	init () override

virtual bool	initWithHint (Size hint) override

virtual bool	initWithHint (float width, float height) override

Color4	getColor ()

void	setColor (Color4 color)

virtual std::string	toString (bool verbose=false) const override

size_t	getChildCount () const

std::shared_ptr< scene2::SceneNode >	getChild (unsigned int pos)

const std::shared_ptr< scene2::SceneNode > &	getChild (unsigned int pos) const

template<typename T >
std::shared_ptr< T >	getChild (unsigned int pos) const

std::shared_ptr< scene2::SceneNode >	getChildByTag (unsigned int tag) const

template<typename T >
std::shared_ptr< T >	getChildByTag (unsigned int tag) const

std::shared_ptr< scene2::SceneNode >	getChildByName (const std::string name) const

template<typename T >
std::shared_ptr< T >	getChildByName (const std::string name) const

std::vector< std::shared_ptr< scene2::SceneNode > >	getChildren ()

const std::vector< std::shared_ptr< scene2::SceneNode > > &	getChildren () const

virtual void	addChild (const std::shared_ptr< scene2::SceneNode > &child)

void	addChildWithTag (const std::shared_ptr< scene2::SceneNode > &child, unsigned int tag)

void	addChildWithName (const std::shared_ptr< scene2::SceneNode > &child, const std::string name)

void	swapChild (const std::shared_ptr< scene2::SceneNode > &child1, const std::shared_ptr< scene2::SceneNode > &child2, bool inherit=false)

virtual void	removeChild (unsigned int pos)

void	removeChild (const std::shared_ptr< scene2::SceneNode > &child)

void	removeChildByTag (unsigned int tag)

void	removeChildByName (const std::string name)

virtual void	removeAllChildren ()

std::shared_ptr< graphics::SpriteBatch >	getSpriteBatch () const

void	setSpriteBatch (const std::shared_ptr< graphics::SpriteBatch > &batch)

virtual void	render () override

Public Member Functions inherited from cugl::Scene
	Scene ()

	~Scene ()

virtual void	dispose ()

virtual bool	init ()

virtual bool	initWithHint (Size hint)

virtual bool	initWithHint (float width, float height)

const std::string	getName () const

void	setName (const std::string name)

std::shared_ptr< Camera >	getCamera ()

const std::shared_ptr< Camera >	getCamera () const

virtual std::string	toString (bool verbose=false) const

	operator std::string () const

const Size	getSize () const

const Rect	getBounds () const

Vec3	screenToWorldCoords (const Vec2 screenCoords) const

Vec2	worldToScreenCoords (const Vec3 worldCoords) const

bool	isActive () const

virtual void	setActive (bool value)

virtual void	update (float timestep)

virtual void	reset ()

virtual void	render ()

Static Public Member Functions
static std::shared_ptr< Scene2 >	alloc ()

static std::shared_ptr< Scene2 >	allocWithHint (const Size hint)

static std::shared_ptr< Scene2 >	allocWithHint (float width, float height)

Protected Attributes
std::shared_ptr< graphics::SpriteBatch >	_batch

std::vector< std::shared_ptr< scene2::SceneNode > >	_children

Color4	_color

GLenum	_blendEquation

GLenum	_srcFactor

GLenum	_dstFactor

Protected Attributes inherited from cugl::Scene
std::shared_ptr< Camera >	_camera

std::string	_name

Size	_size

bool	_active

Friends
class	SceneNode

Detailed Description

This class provides the root node of a two-dimensional scene graph.

The Scene2 class is very similar to scene2::SceneNode and shares many methods in common. The major differences are that it has no parent and it has no position (so it cannot be transformed). Instead, the Scene2 is defined by an attached OrthographicCamera.

Rendering happens by traversing the the scene graph using an "Pre-Order" tree traversal algorithm ( https://en.wikipedia.org/wiki/Tree_traversal#Pre-order ). That means that parents are always draw before (and behind children). The children of each sub tree are ordered sequentially.

Scenes do support optional z-ordering. This is not a true depth value, as depth filtering is incompatible with alpha compositing. However, it does provide a way to dynamically reorder how siblings are composed.

Constructor & Destructor Documentation

◆ Scene2()

cugl::scene2::Scene2::Scene2 ( )

Creates a new degenerate Scene2 on the stack.

The scene has no camera and must be initialized.

NEVER USE A CONSTRUCTOR WITH NEW. If you want to allocate an object on the heap, use one of the static constructors instead.

◆ ~Scene2()

cugl::scene2::Scene2::~Scene2 ( )

inline

Deletes this scene, disposing all resources

Member Function Documentation

◆ addChild()

virtual void cugl::scene2::Scene2::addChild ( const std::shared_ptr< scene2::SceneNode > & child )

virtual

Adds a child to this scene.

Children are not necessarily enumerated in the order that they are added. Hence you should generally attempt to retrieve a child by tag or by name instead.

Parameters

child A child node.

◆ addChildWithName()

void cugl::scene2::Scene2::addChildWithName	(	const std::shared_ptr< scene2::SceneNode > &	child,
		const std::string	name
	)

inline

Adds a child to this scene with the given name.

Children are not necessarily enumerated in the order that they are added. Hence you should generally attempt to retrieve a child by tag or by name instead.

Parameters

child	A child node.
name	A string to identify the node.

◆ addChildWithTag()

void cugl::scene2::Scene2::addChildWithTag	(	const std::shared_ptr< scene2::SceneNode > &	child,
		unsigned int	tag
	)

inline

Adds a child to this scene with the given tag.

Children are not necessarily enumerated in the order that they are added. Hence you should generally attempt to retrieve a child by tag or by name instead.

Parameters

child	A child node.
tag	An integer to identify the node easily.

◆ alloc()

static std::shared_ptr< Scene2 > cugl::scene2::Scene2::alloc ( )

inlinestatic

Returns a newly allocated Scene to fill the entire screen.

Returns: a newly allocated Scene to fill the entire screen..

◆ allocWithHint() [1/2]

static std::shared_ptr< Scene2 > cugl::scene2::Scene2::allocWithHint ( const Size hint )

inlinestatic

Returns a newly allocated Scene with the given size hint.

Scenes are designed to fill the entire screen. If you want a scene that is only part of the screen, that should be implemented with a specific scene graph. However, the size of that screen can vary from device to device. To make scene design easier, designs are typically locked to a dimension: width or height.

This is the purpose of the size hint. If either of the values of hint are non-zero, then the scene will lock that dimension to that particular size. If both are non-zero, it will choose its dimension according to the device orientation. Landscape will be height, while portrait will pick width. Devices with no orientation will always priortize height over width.

Parameters

hint	The size hint

Returns: a newly allocated Scene with the given size hint.

◆ allocWithHint() [2/2]

static std::shared_ptr< Scene2 > cugl::scene2::Scene2::allocWithHint	(	float	width,
		float	height
	)

inlinestatic

Returns a newly allocated Scene with the given size hint.

Scenes are designed to fill the entire screen. If you want a scene that is only part of the screen, that should be implemented with a specific scene graph. However, the size of that screen can vary from device to device. To make scene design easier, designs are typically locked to a dimension: width or height.

This is the purpose of the size hint. If either of the values of hint are non-zero, then the scene will lock that dimension to that particular size. If both are non-zero, it will choose its dimension according to the device orientation. Landscape will be height, while portrait will pick width. Devices with no orientation will always priortize height over width.

Parameters

width	The width size hint
height	The height size hint

Returns: a newly allocated Scene with the given size hint.

◆ dispose()

virtual void cugl::scene2::Scene2::dispose ( )

overridevirtual

Disposes all of the resources used by this scene.

A disposed Scene2 can be safely reinitialized. Any children owned by this scene will be released. They will be deleted if no other object owns them.

Reimplemented from cugl::Scene.

Reimplemented in cugl::scene2::LoadingScene, and cugl::scene2::Scene2Texture.

◆ getChild() [1/3]

std::shared_ptr< scene2::SceneNode > cugl::scene2::Scene2::getChild ( unsigned int pos )

Returns the child at the given position.

Children are not necessarily enumerated in the order that they are added. For example, they may be resorted by their z-order. Hence you should generally attempt to retrieve a child by tag or by name instead.

Parameters

pos	The child position.

Returns: the child at the given position.

◆ getChild() [2/3]

const std::shared_ptr< scene2::SceneNode > & cugl::scene2::Scene2::getChild ( unsigned int pos ) const

Returns the child at the given position.

Children are not necessarily enumerated in the order that they are added. Hence you should generally attempt to retrieve a child by tag or by name instead.

Parameters

pos	The child position.

Returns: the child at the given position.

◆ getChild() [3/3]

template<typename T >

std::shared_ptr< T > cugl::scene2::Scene2::getChild ( unsigned int pos ) const

inline

Returns the child at the given position, typecast to a shared T pointer.

This method is provided to simplify the polymorphism of a scene graph. While all children are a subclass of type Node, you may want to access them by their specific subclass. If the child is not an instance of type T (or a subclass), this method returns nullptr.

Children are not necessarily enumerated in the order that they are added. Hence you should generally attempt to retrieve a child by tag or by name instead.

Parameters

pos	The child position.

Returns: the child at the given position, typecast to a shared T pointer.

◆ getChildByName() [1/2]

std::shared_ptr< scene2::SceneNode > cugl::scene2::Scene2::getChildByName ( const std::string name ) const

Returns the (first) child with the given name.

If there is more than one child of the given name, it returns the first one that is found. Children are not necessarily enumerated in the order that they are added. Hence it is very important that names be unique.

Parameters

name	An identifier to find the child node.

Returns: the (first) child with the given name.

◆ getChildByName() [2/2]

template<typename T >

std::shared_ptr< T > cugl::scene2::Scene2::getChildByName ( const std::string name ) const

inline

Returns the (first) child with the given name, typecast to a shared T pointer.

This method is provided to simplify the polymorphism of a scene graph. While all children are a subclass of type Node, you may want to access them by their specific subclass. If the child is not an instance of type T (or a subclass), this method returns nullptr.

If there is more than one child of the given name, it returns the first one that is found. Children are not necessarily enumerated in the order that they are added. Hence it is very important that names be unique.

Parameters

name	An identifier to find the child node.

Returns: the (first) child with the given name, typecast to a shared T pointer.

◆ getChildByTag() [1/2]

std::shared_ptr< scene2::SceneNode > cugl::scene2::Scene2::getChildByTag ( unsigned int tag ) const

Returns the (first) child with the given tag.

If there is more than one child of the given tag, it returns the first one that is found. Children are not necessarily enumerated in the order that they are added. Hence it is very important that tags be unique.

Parameters

tag	An identifier to find the child node.

Returns: the (first) child with the given tag.

◆ getChildByTag() [2/2]

template<typename T >

std::shared_ptr< T > cugl::scene2::Scene2::getChildByTag ( unsigned int tag ) const

inline

Returns the (first) child with the given tag, typecast to a shared T pointer.

This method is provided to simplify the polymorphism of a scene graph. While all children are a subclass of type Node, you may want to access them by their specific subclass. If the child is not an instance of type T (or a subclass), this method returns nullptr.

If there is more than one child of the given tag, it returns the first one that is found. Children are not necessarily enumerated in the order that they are added. Hence it is very important that tags be unique.

Parameters

tag	An identifier to find the child node.

Returns: the (first) child with the given tag, typecast to a shared T pointer.

◆ getChildCount()

size_t cugl::scene2::Scene2::getChildCount ( ) const

inline

Returns the number of immediate children of this scene.

Returns: The number of immediate children of this scene.

◆ getChildren() [1/2]

std::vector< std::shared_ptr< scene2::SceneNode > > cugl::scene2::Scene2::getChildren ( )

inline

Returns the list of the scene's immediate children.

Returns: the list of the scene's immediate children.

◆ getChildren() [2/2]

const std::vector< std::shared_ptr< scene2::SceneNode > > & cugl::scene2::Scene2::getChildren ( ) const

inline

Returns the list of the scene's immediate children.

Returns: the list of the scene's immediate children.

◆ getColor()

Color4 cugl::scene2::Scene2::getColor ( )

inline

Returns the tint color for this scene.

During the render phase, this color will be applied to any child for which hasRelativeColor() is true.

Returns: the tint color for this scene.

◆ getSpriteBatch()

std::shared_ptr< graphics::SpriteBatch > cugl::scene2::Scene2::getSpriteBatch ( ) const

inline

Returns the sprite batch for rendering this scene.

Scene2 objects are rendered with a sprite batch by default. In particular the method render traverses the scene graph in a pre-order traversal, calling SceneNode#render on each node (though this behavior can be overridden.

As sprite batches are fairly heavy-weight pipelines, we do not construct a sprite batch for each scene. Instead a sprite batch has to be assigned to the scene. If not sprite batch is assigned, nothing is drawn.

Returns: the sprite batch for rendering this scene.

◆ init()

virtual bool cugl::scene2::Scene2::init ( )

overridevirtual

Initializes a Scene to fill the entire screen.

Returns: true if initialization was successful.

Reimplemented from cugl::Scene.

Reimplemented in cugl::scene2::Scene2Texture.

◆ initWithHint() [1/2]

virtual bool cugl::scene2::Scene2::initWithHint	(	float	width,
		float	height
	)

inlineoverridevirtual

Initializes a Scene with the given size hint.

Scenes are designed to fill the entire screen. If you want a scene that is only part of the screen, that should be implemented with a specific scene graph. However, the size of that screen can vary from device to device. To make scene design easier, designs are typically locked to a dimension: width or height.

This is the purpose of the size hint. If either of the values of hint are non-zero, then the scene will lock that dimension to that particular size. If both are non-zero, it will choose its dimension according to the device orientation. Landscape will be height, while portrait will pick width. Devices with no orientation will always priortize height over width.

Parameters

width	The width size hint
height	The height size hint

Returns: true if initialization was successful.

Reimplemented from cugl::Scene.

Reimplemented in cugl::scene2::Scene2Texture.

◆ initWithHint() [2/2]

virtual bool cugl::scene2::Scene2::initWithHint ( Size hint )

overridevirtual

Initializes a Scene with the given size hint.

Scenes are designed to fill the entire screen. If you want a scene that is only part of the screen, that should be implemented with a specific scene graph. However, the size of that screen can vary from device to device. To make scene design easier, designs are typically locked to a dimension: width or height.

This is the purpose of the size hint. If either of the values of hint are non-zero, then the scene will lock that dimension to that particular size. If both are non-zero, it will choose its dimension according to the device orientation. Landscape will be height, while portrait will pick width. Devices with no orientation will always priortize height over width.

Parameters

hint	The size hint

Returns: true if initialization was successful.

Reimplemented from cugl::Scene.

Reimplemented in cugl::scene2::Scene2Texture.

◆ removeAllChildren()

virtual void cugl::scene2::Scene2::removeAllChildren ( )

virtual

Removes all children from this Node.

◆ removeChild() [1/2]

void cugl::scene2::Scene2::removeChild ( const std::shared_ptr< scene2::SceneNode > & child )

Removes a child from this Scene.

Removing a child alters the position of every child after it. Hence it is unsafe to cache child positions.

If the child is not in this node, nothing happens.

Parameters

child The child node which will be removed.

◆ removeChild() [2/2]

virtual void cugl::scene2::Scene2::removeChild ( unsigned int pos )

virtual

Removes the child at the given position from this Scene.

Removing a child alters the position of every child after it. Hence it is unsafe to cache child positions.

Parameters

pos	The position of the child node which will be removed.

◆ removeChildByName()

void cugl::scene2::Scene2::removeChildByName ( const std::string name )

Removes a child from the Scene by name.

If there is more than one child of the given name, it removes the first one that is found. Children are not necessarily enumerated in the order that they are added. Hence it is very important that names be unique.

Parameters

name	A string to identify the node.

◆ removeChildByTag()

void cugl::scene2::Scene2::removeChildByTag ( unsigned int tag )

Removes a child from the Scene by tag value.

If there is more than one child of the given tag, it removes the first one that is found. Children are not necessarily enumerated in the order that they are added. Hence it is very important that tags be unique.

Parameters

tag	An integer to identify the node easily.

◆ render()

virtual void cugl::scene2::Scene2::render ( )

overridevirtual

Draws all of the children in this scene with the given SpriteBatch.

This method with draw using getSpriteBatch. If not sprite batch has been assigned, nothing will be drawn.

Rendering happens by traversing the the scene graph using an "Pre-Order" tree traversal algorithm ( https://en.wikipedia.org/wiki/Tree_traversal#Pre-order ). That means that parents are always draw before (and behind children). To override this draw order, you should place an OrderedNode in the scene graph to specify an alternative order.

Reimplemented from cugl::Scene.

Reimplemented in cugl::scene2::Scene2Texture.

◆ setColor()

void cugl::scene2::Scene2::setColor ( Color4 color )

inline

Sets the tint color for this scene.

During the render phase, this color will be applied to any child for which hasRelativeColor() is true.

Parameters

color The tint color for this scene.

◆ setSpriteBatch()

void cugl::scene2::Scene2::setSpriteBatch ( const std::shared_ptr< graphics::SpriteBatch > & batch )

inline

Sets the sprite batch for rendering this scene.

Scene2 objects are rendered with a sprite batch by default. In particular the method render traverses the scene graph in a pre-order traversal, calling SceneNode#render on each node (though this behavior can be overridden.

As sprite batches are fairly heavy-weight pipelines, we do not construct a sprite batch for each scene. Instead a sprite batch has to be assigned to the scene. If not sprite batch is assigned, nothing is drawn.

Parameters

batch The sprite batch for rendering this scene.

◆ swapChild()

void cugl::scene2::Scene2::swapChild	(	const std::shared_ptr< scene2::SceneNode > &	child1,
		const std::shared_ptr< scene2::SceneNode > &	child2,
		bool	inherit = `false`
	)

Swaps the current child child1 with the new child child2.

If inherit is true, the children of child1 are assigned to child2 after the swap; this value is false by default. The purpose of this value is to allow transitions in the scene graph.

This method is undefined if child1 is not a child of this scene.

Parameters

child1	The current child of this node
child2	The child to swap it with.
inherit	Whether the new child should inherit the children of child1.

◆ toString()

virtual std::string cugl::scene2::Scene2::toString ( bool verbose = false ) const

overridevirtual

Returns a string representation of this scene for debugging purposes.

If verbose is true, the string will include class information. This allows us to unambiguously identify the class.

Parameters

verbose Whether to include class information

Returns: a string representation of this scene for debuggging purposes.

Reimplemented from cugl::Scene.

Member Data Documentation

◆ _batch

std::shared_ptr<graphics::SpriteBatch> cugl::scene2::Scene2::_batch

protected

The sprite batch for rendering this scene

◆ _blendEquation

GLenum cugl::scene2::Scene2::_blendEquation

protected

The blending equation for this scene

◆ _children

std::vector<std::shared_ptr<scene2::SceneNode> > cugl::scene2::Scene2::_children

protected

The array of internal nodes

◆ _color

Color4 cugl::scene2::Scene2::_color

protected

The default tint for this scene

◆ _dstFactor

GLenum cugl::scene2::Scene2::_dstFactor

protected

The destination factor for the blend function

◆ _srcFactor

GLenum cugl::scene2::Scene2::_srcFactor

protected

The source factor for the blend function

The documentation for this class was generated from the following file:

/Users/wmwhite/Developer/CUGL/include/cugl/scene2/CUScene2.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Scene2()

◆ ~Scene2()

Member Function Documentation

◆ addChild()

◆ addChildWithName()

◆ addChildWithTag()

◆ alloc()

◆ allocWithHint() [1/2]

◆ allocWithHint() [2/2]

◆ dispose()

◆ getChild() [1/3]

◆ getChild() [2/3]

◆ getChild() [3/3]

◆ getChildByName() [1/2]

◆ getChildByName() [2/2]

◆ getChildByTag() [1/2]

◆ getChildByTag() [2/2]

◆ getChildCount()

◆ getChildren() [1/2]

◆ getChildren() [2/2]

◆ getColor()

◆ getSpriteBatch()

◆ init()

◆ initWithHint() [1/2]

◆ initWithHint() [2/2]

◆ removeAllChildren()

◆ removeChild() [1/2]

◆ removeChild() [2/2]

◆ removeChildByName()

◆ removeChildByTag()

◆ render()

◆ setColor()

◆ setSpriteBatch()

◆ swapChild()

◆ toString()

Member Data Documentation

◆ _batch

◆ _blendEquation

◆ _children

◆ _color

◆ _dstFactor

◆ _srcFactor
