Assignment 11: Parallel Raycasting

Instructions: Remember, all assignments in CS 3410 are individual. You must submit work that is 100% your own. Remember to ask for help from the CS 3410 staff in office hours or on Ed! If you discuss the assignment with anyone else, be careful not to share your actual work, and include an acknowledgment of the discussion in a collaboration.txt file along with your submission.

The assignment is due via Gradescope at 11:59pm on the due date indicated on the schedule.

Submission Requirements

Submit these files to Gradescope:

Provided Files

You will find these files in your GitHub repository:

  • raycaster.h and raycaster.c, which include function definitions for you to implement. It is OK to add helper functions here.
  • test_raycaster.c, which includes some tests of raycaster.c. You will extend these tests.
  • main.c, a basic entry point that runs your raycaster on an input image and produces an output image file. This can be useful as a simple test so you can see visually what your implementation is producing.
  • timing.c, which includes a main function that can time your implementations of raycasting. You can modify this file—in particular, consider changing the constants at the top—but you will not turn it in.
  • raycaster_util.h and raycaster_util.c, which include critical helper functions for the raycaster. Use these functions in your implementation! Resist the urge to reimplement any of this functionality—these math routines can be subtle to get exactly right, so using this provided code will help your code behave predictably and pass the tests. (There is also a test_raycaster_util.c program, which you do not need to modify.)
  • image.h and image.c, which provide utilities to manipulate raw image files. Only pay attention to image.h to understand how to use these utilities; you shouldn’t need to look at the implementation. (We also include stb_image_write.h and stb_image.h, from a public-domain set of C utilities).

Overview

Raycasting is a technique for rendering 2D and 3D graphics. Among many other uses, raycasting was the underlying technique that early 3D video games used to produce 3D scenes from 2D level maps. If you’ve ever played an old 3D game where you can move around but you can’t look up or down, it may have used raycasting.

One of the cool things about raycasting is that it is amenable to parallel implementation. Parallelizing the algorithm can be critical for getting it to render images quickly enough for real-time interaction.

Your task in this assignment is to implement the original sequential algorithm and then parallelize it to make it go faster. You will try two different parallelism strategies, measure their differences in performance, and report on your observations.

Background

To render an image, computer graphics techniques start with some data about the scene: light sources, the camera or viewpoint, objects in space. The general category of ray tracing algorithms works by imagining many rays projected in straight lines outward from the camera or from lights. You can then find the first object that each ray “hits” to determine what should be visible or illuminated along that ray.

In this assignment, we will trace rays emitted from light sources. Think of following the path of imaginary photons as they leave the light in all directions. For every light source and every other point in the scene, the light illuminates the point if there are no solid obstacles in between. Here’s a diagram showing the idea:

Illustration of a 2D raycaster

This diagram shows a grid of pixels, one of which has a light source. We have also highlighted three other pixels. Only one (the one with the solid ray) is illuminated; the other rays are occluded by objects in the scene.

In this assignment, we will implement an algorithm to compute the illumination of every point in a scene. We will only consider direct rays: so no reflections or other effects that would require simulating how light “bounces” off of objects.

The effect will look something like this:

An input scene. An input scene.

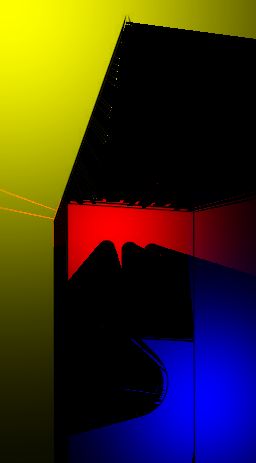

The left image is the input scene, where dark pixels are solid obstacles. The right image shows the result of lighting the scene with three lights of different colors in different positions. The light “passes through” lighter-colored pixels and stops at the obstacles.

Images

A raster image is a 2D array of pixels, each of which has a color. An extremely common way to represent colors is with three 8-bit integers for the red, green, and blue components.

See the image.h file for definitions of the Color and Image structs that reflect this strategy. The Image struct is a wrapper around a row-major array of Colors. We have also provided utilities to read and write images in the ubiquitous PNG format.

Illumination

Your work on this assignment will add lighting effects to raster images. The main task is to compute the illumination for every pixel in the image: how much the pixel is lit by the light sources in the scene.

For an unobstructed pixel (i.e., there is not a solid object between the pixel and the light source), here is a formula for the illumination of that pixel by that one light:

\[ \text{illumination} = (\text{light color}) \times e^{\frac{-(\text{distance to light})^2 }{ \text{light strength}}} \]

This formula makes illumination decay with distance. The color and strength are intrinsic properties of the light source. (The raycaster_util.h header defines a Light struct with these fields.) Multiplying a color by a number scales its intensity by multiplying the red, green, and blue components by the same amount.

We have provided an implementation of this function as the illuminate function in raycaster_util.c. Remember that this illumination formula is only relevant when there is no occlusion (no obstacle between the light and the given pixel).

A single pixel may be illuminated by multiple light sources. Use the add_colors function from image.h to combine the illumination from multiple lights.

The Input Scene

In general, there are many ways to specify the scene data for a renderer. In our setup, the scene comes as an image, where light pixels represent free space and dark pixels are solid obstacles. Specifically, a pixel is a solid obstacle if:

\[ \text{red} + \text{green} + \text{blue} \lt 10 \]

We have provided an implementation of this formula as is_obstacle in raycaster_util.h.

Casting Rays

The core of the algorithm is the occlusion check: for a given destination pixel and a given light, check every pixel on a line segment between the destination and the light for a solid obstacle.

The idea is to iteratively move along this line segment by some distance, one step at a time:

\[ \text{next pixel} = \text{current pixel} + \text{direction} \times \text{distance} \]

This strategy requires the direction (i.e., angle) from the destination pixel and the light source. Let the destination pixel be \((i, j)\) and let the light be at \((x, y)\). Recalling our trigonometry classes, we can calculate the direction as:

\[ \text{direction} = \text{atan}\left(\frac{y - j}{x - i}\right) \]

We have provided an implementation of this formula as direction_pair in raycaster_util.h.

This step-by-step strategy also requires a distance. We want to step in the calculated direction just far enough to reach the next pixel. We have implemented the distance calculation in a function called step (also in raycaster_util.h), which moves from an input pixel in a given direction to a neighboring pixel.

To trace a ray, iteratively call step to test every pixel on the line segment between the light and the destination pixel. The light-source pixel itself is always illuminated. Pixels containing solid objects are never illuminated.

Task 1: Sequential Raycast Implementation

Your first task is to implement the 2D raycasting algorithm described above. Implement the raycast_sequential function in raycaster.c:

Image* raycast_sequential(Image* scene, Light* lights, int light_count);

This function takes in an input image that describes the scene and an array of light sources. It produces a rendered image of the same size.

For every pixel \((i, j)\) in the image, compute the illumination of that pixel for every light. Remember to handle occlusion, i.e., do not include contributions from lights that have a solid obstacle “in the way.”

Let the original color of a given pixel in image be called orig. Call the combined illumination color, across all lights, illum. The final output color of that pixel in image should be mul_colors(illum, orig). (The mul_colors function in image.h performs a normalized multiplication in each of the red, green, and blue channels.) The result is an image that looks like the original but colors the “empty space” according to the illumination at that point.

Some Useful Functions

Please look through raycaster_util.h and image.h for many functions you can use to implement your algorithm. Here are some particularly important ones, most of which we have already alluded to above:

  • Color illuminate(Light light, int x, int y) calculates our equation for illumination for a single point at a single non-occluded point.
  • int is_obstacle(Color color) decides whether a given pixel is a solid obstacle.
  • Pair direction_pair(PixelLocation start, PixelLocation end) finds the direction (angle) between two points.
  • PixelLocation step(Pair* pos, Pair direction) moves a pixel position by one pixel in the given direction, which is useful for tracing the line segment representing each light ray. The in/out parameter pos is a floating-point position that can represent fractional coordinates; it is mutated to reflect the new location. See the documentation comment in raycaster_util.h for more details.
  • Color add_colors(Color color1, Color color2) adds two color values together, for combining the effects of multiple lights.
  • Color mul_colors(Color color1, Color color2) multiplies two colors, for applying the illumination color to the original pixel.
  • Image* new_image(int width, int height) allocates a new, empty image. Use this to create the output image for all your raycaster implementations.
  • Color* image_pixel(Image* image, int x, int y) gets a pointer to one pixel in an image at the given coordinates. This is just a one-liner that does the row-major index math (which some might prefer to write themselves).

Running and Testing

For a quick-and-dirty smoke test, use main.c. This program uses a hard-coded input image and light arrangement; you should experiment with different images and lights by manually modifying main.c. Use rv make raycaster to produce the raycaster executable. Running this executable produces raycast.png, which you can open in any image viewer.

We have also provided a more systematic testing framework in test_raycaster.c. Use rv make test_raycaster to build a test_raycaster executable. This tool uses inputs from your images/ directory and compares the results against reference outputs in images/test_references/. It also saves the actual output images from your raycaster in images/sequential_results/ so you can inspect them visually if you like.

Expand the Test Suite

You must add at least 5 new tests to the test suite in test_raycaster.c. For the sequential implementation, this means adding new input image files (scenes) and corresponding lines in test_raycast_sequential, possibly with different light positions.

Here are some ideas for kinds of tests you might add:

  • Very small images that act as “unit tests” for specific edge cases.
  • Different light positions for the existing images in the images/ directory.
  • New input scenes that you draw yourself using an image editor.

Make sure your implementation passes the given tests and your own new tests. It is important to be confident that your sequential implementation is correct before moving on to the parallel versions.

If you add new image files to go with your tests, you can optionally turn these in alongside your test code.

Task 2: Light-Parallel Raycast Implementation

In this and the next task, you will implement parallel versions of the raycaster. The first strategy uses parallelism over the light sources. The insight is that it is possible to independently compute the illumination due to each light. So we can use multiple threads to process subsets of the lights. The threads will then need to somehow coordinate to combine the contributions from separate lights and to produce the final image.

Complete this function in raycaster.c:

Image* raycast_parallel_lights(Image* scene, Light* lights, int light_count, int max_threads);

Your implementation may use up to max_threads parallel threads. If there are fewer lights than max_threads, then you can use light_count threads (with one light per thread). If there are more lights than max_threads, then each thread will have to process more than one light.

Use the pthreads library for all your thread creation, management, and synchronization needs. The exact strategy for how to distribute work among threads and when to synchronize is up to you. But be sure to unsynchronized accesses to shared data: if two different threads might write the same variable, for example, use some pthreads synchronization construct to enforce exclusive access.

Test your implementation with test_raycaster.c. Your parallel implementation should produce the same results as your sequential implementation.

Task 3: Row-Parallel Raycast Implementation

Next, we will use a different strategy to parallelize the same work. The idea is to parallelize the computation for different parts of the image. Namely, we will divide the rows (\(y\)-coordinates) of pixels among threads.

Implement this function in raycaster.c:

Image* raycast_parallel_rows(Image* scene, Light* lights, int light_count, int max_threads);

Again, the max_threads parameter describes how many threads your implementation can use. You must divide the image’s rows among max_threads threads (unless the height is less than max_threads, in which case you will have one thread per row).

And once again, test your work using test_raycaster.c to ensure that your new implementation matches your sequential implementation.

Task 4: Performance Analysis

Your final task is to measure and compare the performance of your three implementations. There are many factors that can influence which raycaster implementation is fastest:

  • The size of the image.
  • The number of lights.
  • The fraction of pixels containing solid obstacles.
  • The number of threads. (Of course, only the parallel implementations support more than one thread.)

Conduct performance measurements to understand how your implementations’ running time changes as these parameters vary. For each of these four parameters, select at least 3 different values: 3 different images of different sizes, 3 light counts, 3 images with different obstacle densities, and 3 thread counts. Now, compare the running time of your three implementations on each of these different values. For each parameter, produce a single overlapping plot comparing the 3 implementations over your different values. You will have a total of four plots.

Write a short report consisting of these sections:

  1. Implementation: A brief summary of your implementation strategies for the three styles.
  2. Experimental setup: What parameters did you choose, and why?
  3. Results: Four plots examining the impact of the four parameters outlined above. (And any other data collect that you think is helpful.)
  4. Analysis: Attempt to explain what the results mean and why they look the way they do.

Submit your report as a PDF named raycast_writeup.pdf. There is no minimum length, but please keep it to 3 pages or fewer.

Collecting Timing Data

If you add it up, the requirements above ask for a total of at least 33 data points:

  • 27 total for the first three parameters (3 per implementation, per parameter)
  • 6 total for varying the thread count (because only the 2 parallel implementations support more than one thread).

So it will be a good use of your time to partially or completely automate the data collection process. The strategy is up to you.

To help you get started, we have provided a basic data-collection program timing.c that you can adapt to your needs. Modify this as much as you like; you will not turn it in. You can start by changing the constants at the top of the file: FILENAME (the input image), LIGHT_NUMBER (the program generates lights in a grid pattern), ITERATIONS (how many times to repeat the raycasting execution to measure an average execution time), and THREAD_COUNT. The current program only measures one parameter configuration at a time; you might consider extending it to try multiple configurations in a single run.

Use rv make timing to build the timing executable from timing.c.

Submission

On Gradescope, submit raycaster.c, test_raycaster.c (with your 5 additional tests), and raycast_writeup.pdf.

Rubric

  • Implementation: 60 points
    • raycast_sequential: 20
    • raycast_parallel_lights: 20
    • raycast_parallel_rows: 20
  • Performance Analysis: 20 points
  • Additional Tests: 10 points
