#include <CUSimpleObstacle.h>

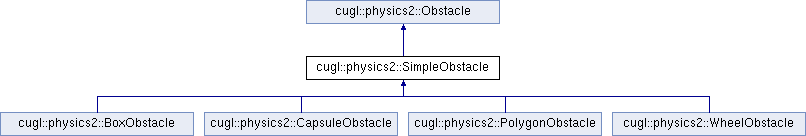

Inheritance diagram for cugl::physics2::SimpleObstacle:

Public Member Functions
	SimpleObstacle ()

virtual	~SimpleObstacle ()

virtual b2BodyType	getBodyType () const override

virtual void	setBodyType (b2BodyType value) override

virtual Vec2	getPosition () const override

virtual void	setPosition (const Vec2 value) override

virtual void	setPosition (float x, float y) override

virtual float	getX () const override

virtual void	setX (float value) override

virtual float	getY () const override

virtual void	setY (float value) override

virtual float	getAngle () const override

virtual void	setAngle (float value) override

virtual Vec2	getLinearVelocity () const override

virtual void	setLinearVelocity (const Vec2 value) override

virtual void	setLinearVelocity (float x, float y) override

virtual float	getVX () const override

virtual void	setVX (float value) override

virtual float	getVY () const override

virtual void	setVY (float value) override

virtual float	getAngularVelocity () const override

virtual void	setAngularVelocity (float value) override

virtual bool	isEnabled () const override

virtual void	setEnabled (bool value) override

virtual bool	isAwake () const override

virtual void	setAwake (bool value) override

virtual bool	isSleepingAllowed () const override

virtual void	setSleepingAllowed (bool value) override

virtual bool	isBullet () const override

virtual void	setBullet (bool value) override

virtual bool	isFixedRotation () const override

virtual void	setFixedRotation (bool value) override

virtual float	getGravityScale () const override

virtual void	setGravityScale (float value) override

virtual float	getLinearDamping () const override

virtual void	setLinearDamping (float value) override

virtual float	getAngularDamping () const override

virtual void	setAngularDamping (float value) override

virtual void	setDensity (float value) override

virtual void	setFriction (float value) override

virtual void	setRestitution (float value) override

virtual void	setSensor (bool value) override

virtual void	setFilterData (b2Filter value) override

virtual Vec2	getCentroid () const override

virtual void	setCentroid (const Vec2 value) override

virtual void	setCentroid (float x, float y) override

virtual float	getInertia () const override

virtual void	setInertia (float value) override

virtual float	getMass () const override

virtual void	setMass (float value) override

virtual void	resetMass () override

virtual b2Body *	getBody () override

virtual bool	activatePhysics (b2World &world) override

virtual void	deactivatePhysics (b2World &world) override

virtual void	createFixtures ()

virtual void	releaseFixtures ()

virtual void	update (float delta) override

int	getPositionSnap ()

void	setPositionSnap (unsigned int snap)

int	getAngleSnap ()

void	setAngleSnap (unsigned int snap)

Public Member Functions inherited from cugl::physics2::Obstacle
	Obstacle (void)

virtual	~Obstacle ()

virtual bool	init ()

virtual bool	init (const Vec2 vec)

void	setBodyState (const b2Body &body)

float	getDensity () const

float	getFriction () const

float	getRestitution () const

bool	isSensor () const

b2Filter	getFilterData () const

bool	isRemoved () const

void	markRemoved (bool value)

bool	isDirty () const

void	markDirty (bool value)

const std::function< void(Obstacle *obstacle)> &	getListener () const

void	setListener (const std::function< void(Obstacle *obstacle)> &listener)

std::string	getName () const

void	setName (std::string value)

std::string	toString () const

Color4	getDebugColor () const

virtual void	setDebugColor (Color4 color)

scene2::SceneNode *	getDebugScene () const

scene2::WireNode *	getDebugNode () const

virtual void	setDebugScene (const std::shared_ptr< scene2::SceneNode > &node)

bool	hasDebug ()

Protected Member Functions
virtual void	updateDebug () override

Protected Member Functions inherited from cugl::physics2::Obstacle
virtual void	resetDebug ()

Protected Attributes
b2Body *	_body

int	_posSnap

unsigned long	_posFact

int	_angSnap

unsigned long	_angFact

Protected Attributes inherited from cugl::physics2::Obstacle
b2BodyDef	_bodyinfo

b2FixtureDef	_fixture

b2MassData	_massdata

bool	_masseffect

std::shared_ptr< scene2::SceneNode >	_scene

std::shared_ptr< scene2::WireNode >	_debug

Color4	_dcolor

std::string	_tag

std::function< void(Obstacle *obstacle)>	_listener

Detailed Description

Base model class to support collisions.

This is an instance of a Physics object with just one body. It does not have any joints. It is the primary type of physics object. This class does not provide Shape information, and should not be instantiated directly.

Many of the method comments in this class are taken from the Box2d manual by Erin Catto (2011).

Constructor & Destructor Documentation

◆ SimpleObstacle()

cugl::physics2::SimpleObstacle::SimpleObstacle ( )

inline

Creates a new simple physics object at the origin.

NEVER USE A CONSTRUCTOR WITH NEW. If you want to allocate an object on the heap, use one of the static constructors instead (in this case, in one of the subclasses).

◆ ~SimpleObstacle()

virtual cugl::physics2::SimpleObstacle::~SimpleObstacle ( )

inlinevirtual

Deletes this physics object and all of its resources.

We have to make the destructor public so that we can polymorphically delete physics objects.

The purpose of this destructor is to warn us if we delete an object pre-maturely.

Member Function Documentation

◆ activatePhysics()

virtual bool cugl::physics2::SimpleObstacle::activatePhysics ( b2World & world )

overridevirtual

Creates the physics Body(s) for this object, adding them to the world.

Implementations of this method should NOT retain ownership of the Box2D world. That is a tight coupling that we should avoid.

Parameters

world Box2D world to store body

Returns: true if object allocation succeeded

Reimplemented from cugl::physics2::Obstacle.

◆ createFixtures()

virtual void cugl::physics2::SimpleObstacle::createFixtures ( )

inlinevirtual

Create new fixtures for this body, defining the shape

This is the primary method to override for custom physics objects.

Reimplemented in cugl::physics2::CapsuleObstacle, cugl::physics2::PolygonObstacle, cugl::physics2::BoxObstacle, and cugl::physics2::WheelObstacle.

◆ deactivatePhysics()

virtual void cugl::physics2::SimpleObstacle::deactivatePhysics ( b2World & world )

overridevirtual

Destroys the physics Body(s) of this object if applicable.

This removes the body from the Box2D world.

Parameters

world Box2D world that stores body

Reimplemented from cugl::physics2::Obstacle.

◆ getAngle()

virtual float cugl::physics2::SimpleObstacle::getAngle ( ) const

inlineoverridevirtual

Returns the angle of rotation for this body (about the center).

The value returned is in radians

Returns: the angle of rotation for this body

Reimplemented from cugl::physics2::Obstacle.

◆ getAngleSnap()

int cugl::physics2::SimpleObstacle::getAngleSnap ( )

inline

Returns the number of decimal places to snap rotation to the physics body

Physics bodies will have very precise angles, but these fractional angles may not be ideal for drawing, and may produce artifacts. When the value of snap is nonnegative, CUGL will round the rotation (measured in degrees, as that is the value used by images) of the image to snap decimal places.

For example, if the snap is 0, it will always round the angle to the nearest degree. If it is 1, it will round it to the nearest 10th of a degree. If it is -1 (or any negative value) it will not snap at all.

Returns: the number of decimal places to snap rotation to the physics body

◆ getAngularDamping()

virtual float cugl::physics2::SimpleObstacle::getAngularDamping ( ) const

inlineoverridevirtual

Returns the angular damping for this body.

Angular damping is use to reduce the angular velocity. Damping is different than friction because friction only occurs with contact. Damping is not a replacement for friction and the two effects should be used together.

Damping parameters should be between 0 and infinity, with 0 meaning no damping, and infinity meaning full damping. Normally you will use a damping value between 0 and 0.1.

Returns: the angular damping for this body.

Reimplemented from cugl::physics2::Obstacle.

◆ getAngularVelocity()

virtual float cugl::physics2::SimpleObstacle::getAngularVelocity ( ) const

inlineoverridevirtual

Returns the angular velocity for this physics body

The rate of change is measured in radians per step

Returns: the angular velocity for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ getBody()

virtual b2Body* cugl::physics2::SimpleObstacle::getBody ( )

inlineoverridevirtual

Returns a (weak) reference to Box2D body for this obstacle.

You use this body to add joints and apply forces. As a weak reference, this physics obstacle does not transfer ownership of this body. In addition, the value may be a nullptr.

Returns: a (weak) reference to Box2D body for this obstacle.

Reimplemented from cugl::physics2::Obstacle.

◆ getBodyType()

virtual b2BodyType cugl::physics2::SimpleObstacle::getBodyType ( ) const

inlineoverridevirtual

Returns the body type for Box2D physics

If you want to lock a body in place (e.g. a platform) set this value to STATIC. KINEMATIC allows the object to move (and some limited collisions), but ignores external forces (e.g. gravity). DYNAMIC makes this is a full-blown physics object.

Returns: the body type for Box2D physics

Reimplemented from cugl::physics2::Obstacle.

◆ getCentroid()

virtual Vec2 cugl::physics2::SimpleObstacle::getCentroid ( ) const

inlineoverridevirtual

Returns the center of mass of this body

This method converts from a Box2D vector type to a CUGL vector type. This cuts down on the confusion between vector types. It also means that changes to the returned vector will have no effect on this object.

Returns: the center of mass for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ getGravityScale()

virtual float cugl::physics2::SimpleObstacle::getGravityScale ( ) const

inlineoverridevirtual

Returns the gravity scale to apply to this body

This allows isolated objects to float. Be careful with this, since increased gravity can decrease stability.

Returns: the gravity scale to apply to this body

Reimplemented from cugl::physics2::Obstacle.

◆ getInertia()

virtual float cugl::physics2::SimpleObstacle::getInertia ( ) const

inlineoverridevirtual

Returns the rotational inertia of this body

For static bodies, the mass and rotational inertia are set to zero. When a body has fixed rotation, its rotational inertia is zero.

Returns: the rotational inertia of this body

Reimplemented from cugl::physics2::Obstacle.

◆ getLinearDamping()

virtual float cugl::physics2::SimpleObstacle::getLinearDamping ( ) const

inlineoverridevirtual

Returns the linear damping for this body.

Linear damping is use to reduce the linear velocity. Damping is different than friction because friction only occurs with contact. Damping is not a replacement for friction and the two effects should be used together.

Damping parameters should be between 0 and infinity, with 0 meaning no damping, and infinity meaning full damping. Normally you will use a damping value between 0 and 0.1. Most people avoid linear damping because it makes bodies look floaty.

Returns: the linear damping for this body.

Reimplemented from cugl::physics2::Obstacle.

◆ getLinearVelocity()

virtual Vec2 cugl::physics2::SimpleObstacle::getLinearVelocity ( ) const

inlineoverridevirtual

Returns the linear velocity for this physics body

This method converts from a Box2D vector type to a CUGL vector type. This cuts down on the confusion between vector types. It also means that changes to the returned vector will have no effect on this object.

Returns: the linear velocity for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ getMass()

virtual float cugl::physics2::SimpleObstacle::getMass ( ) const

inlineoverridevirtual

Returns the mass of this body

The value is usually in kilograms.

Returns: the mass of this body

Reimplemented from cugl::physics2::Obstacle.

◆ getPosition()

virtual Vec2 cugl::physics2::SimpleObstacle::getPosition ( ) const

inlineoverridevirtual

Returns the current position for this physics body

This method converts from a Box2D vector type to a CUGL vector type. This cuts down on the confusion between vector types. It also means that changes to the returned vector will have no effect on this object.

Returns: the current position for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ getPositionSnap()

int cugl::physics2::SimpleObstacle::getPositionSnap ( )

inline

Returns the number of decimal places to snap the node to the physics body

Physics bodies will have very precise positions, but these fractional positions may not be ideal for drawing, and may produce artifacts. When the value of snap is nonnegative, CUGL will round the position of the node to snap decimal places.

For example, if the snap is 0, it will always round position to the nearest integer. If it is 1, it will round it to the nearest 10th of a point. If it is -1 (or any negative value) it will not snap at all.

Returns: the number of decimal places to snap the node to the physics body

◆ getVX()

virtual float cugl::physics2::SimpleObstacle::getVX ( ) const

inlineoverridevirtual

Returns the x-velocity for this physics body

Returns: the x-velocity for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ getVY()

virtual float cugl::physics2::SimpleObstacle::getVY ( ) const

inlineoverridevirtual

Returns the y-velocity for this physics body

Returns: the y-velocity for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ getX()

virtual float cugl::physics2::SimpleObstacle::getX ( ) const

inlineoverridevirtual

Returns the x-coordinate for this physics body

Returns: the x-coordinate for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ getY()

virtual float cugl::physics2::SimpleObstacle::getY ( ) const

inlineoverridevirtual

Returns the x-coordinate for this physics body

Returns: the x-coordinate for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ isAwake()

virtual bool cugl::physics2::SimpleObstacle::isAwake ( ) const

inlineoverridevirtual

Returns true if the body is awake

An sleeping body is one that has come to rest and the physics engine has decided to stop simulating it to save CPU cycles. If a body is awake and collides with a sleeping body, then the sleeping body wakes up. Bodies will also wake up if a joint or contact attached to them is destroyed. You can also wake a body manually.

Returns: true if the body is awake

Reimplemented from cugl::physics2::Obstacle.

◆ isBullet()

virtual bool cugl::physics2::SimpleObstacle::isBullet ( ) const

inlineoverridevirtual

Returns true if this body is a bullet

By default, Box2D uses continuous collision detection (CCD) to prevent dynamic bodies from tunneling through static bodies. Normally CCD is not used between dynamic bodies. This is done to keep performance reasonable. In some game scenarios you need dynamic bodies to use CCD. For example, you may want to shoot a high speed bullet at a stack of dynamic bricks. Without CCD, the bullet might tunnel through the bricks.

Fast moving objects in Box2D can be labeled as bullets. Bullets will perform CCD with both static and dynamic bodies. You should decide what bodies should be bullets based on your game design.

Returns: true if this body is a bullet

Reimplemented from cugl::physics2::Obstacle.

◆ isEnabled()

virtual bool cugl::physics2::SimpleObstacle::isEnabled ( ) const

inlineoverridevirtual

Returns true if the body is enabled

A disabled body not participate in collision or dynamics. This state is similar to sleeping except the body will not be woken by other bodies and the body's fixtures will not be placed in the broad-phase. This means the body will not participate in collisions, ray casts, etc.

Returns: true if the body is activenablede

Reimplemented from cugl::physics2::Obstacle.

◆ isFixedRotation()

virtual bool cugl::physics2::SimpleObstacle::isFixedRotation ( ) const

inlineoverridevirtual

Returns true if this body be prevented from rotating

This is very useful for characters that should remain upright.

Returns: true if this body be prevented from rotating

Reimplemented from cugl::physics2::Obstacle.

◆ isSleepingAllowed()

virtual bool cugl::physics2::SimpleObstacle::isSleepingAllowed ( ) const

inlineoverridevirtual

Returns false if this body should never fall asleep

An sleeping body is one that has come to rest and the physics engine has decided to stop simulating it to save CPU cycles. If a body is awake and collides with a sleeping body, then the sleeping body wakes up. Bodies will also wake up if a joint or contact attached to them is destroyed. You can also wake a body manually.

Returns: false if this body should never fall asleep

Reimplemented from cugl::physics2::Obstacle.

◆ releaseFixtures()

virtual void cugl::physics2::SimpleObstacle::releaseFixtures ( )

inlinevirtual

Release the fixtures for this body, reseting the shape

This is the primary method to override for custom physics objects.

Reimplemented in cugl::physics2::CapsuleObstacle, cugl::physics2::PolygonObstacle, cugl::physics2::BoxObstacle, and cugl::physics2::WheelObstacle.

◆ resetMass()

virtual void cugl::physics2::SimpleObstacle::resetMass ( )

inlineoverridevirtual

Resets this body to use the mass computed from the its shape and density

Reimplemented from cugl::physics2::Obstacle.

◆ setAngle()

virtual void cugl::physics2::SimpleObstacle::setAngle ( float value )

inlineoverridevirtual

Sets the angle of rotation for this body (about the center).

Parameters

value the angle of rotation for this body (in radians)

Reimplemented from cugl::physics2::Obstacle.

◆ setAngleSnap()

void cugl::physics2::SimpleObstacle::setAngleSnap ( unsigned int snap )

inline

Sets the number of decimal places to snap rotation to the physics body

Physics bodies will have very precise angles, but these fractional angles may not be ideal for drawing, and may produce artifacts. When the value of snap is nonnegative, CUGL will round the rotation (measured in degrees, as that is the value used by images) of the image to snap decimal places.

For example, if the snap is 0, it will always round the angle to the nearest degree. If it is 1, it will round it to the nearest 10th of a degree. If it is -1 (or any negative value) it will not snap at all.

Parameters

snap	the number of decimal places to snap rotation to the physics body

◆ setAngularDamping()

virtual void cugl::physics2::SimpleObstacle::setAngularDamping ( float value )

inlineoverridevirtual

Sets the angular damping for this body.

Angular damping is use to reduce the angular velocity. Damping is different than friction because friction only occurs with contact. Damping is not a replacement for friction and the two effects should be used together.

Damping parameters should be between 0 and infinity, with 0 meaning no damping, and infinity meaning full damping. Normally you will use a damping value between 0 and 0.1.

Parameters

value the angular damping for this body.

Reimplemented from cugl::physics2::Obstacle.

◆ setAngularVelocity()

virtual void cugl::physics2::SimpleObstacle::setAngularVelocity ( float value )

inlineoverridevirtual

Sets the angular velocity for this physics body

Parameters

value the angular velocity for this physics body (in radians)

Reimplemented from cugl::physics2::Obstacle.

◆ setAwake()

virtual void cugl::physics2::SimpleObstacle::setAwake ( bool value )

inlineoverridevirtual

Sets whether the body is awake

An sleeping body is one that has come to rest and the physics engine has decided to stop simulating it to save CPU cycles. If a body is awake and collides with a sleeping body, then the sleeping body wakes up. Bodies will also wake up if a joint or contact attached to them is destroyed. You can also wake a body manually.

Parameters

value whether the body is awake

Reimplemented from cugl::physics2::Obstacle.

◆ setBodyType()

virtual void cugl::physics2::SimpleObstacle::setBodyType ( b2BodyType value )

inlineoverridevirtual

Sets the body type for Box2D physics

If you want to lock a body in place (e.g. a platform) set this value to STATIC. KINEMATIC allows the object to move (and some limited collisions), but ignores external forces (e.g. gravity). DYNAMIC makes this is a full-blown physics object.

Parameters

value the body type for Box2D physics

Reimplemented from cugl::physics2::Obstacle.

◆ setBullet()

virtual void cugl::physics2::SimpleObstacle::setBullet ( bool value )

inlineoverridevirtual

Sets whether this body is a bullet

By default, Box2D uses continuous collision detection (CCD) to prevent dynamic bodies from tunneling through static bodies. Normally CCD is not used between dynamic bodies. This is done to keep performance reasonable. In some game scenarios you need dynamic bodies to use CCD. For example, you may want to shoot a high speed bullet at a stack of dynamic bricks. Without CCD, the bullet might tunnel through the bricks.

Fast moving objects in Box2D can be labeled as bullets. Bullets will perform CCD with both static and dynamic bodies. You should decide what bodies should be bullets based on your game design.

Parameters

value whether this body is a bullet

Reimplemented from cugl::physics2::Obstacle.

◆ setCentroid() [1/2]

virtual void cugl::physics2::SimpleObstacle::setCentroid ( const Vec2 value )

inlineoverridevirtual

Sets the center of mass for this physics body

This method converts from a CUGL vector type to a Box2D vector type. This cuts down on the confusion between vector types.

Parameters

value the center of mass for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ setCentroid() [2/2]

virtual void cugl::physics2::SimpleObstacle::setCentroid	(	float	x,
		float	y
	)

inlineoverridevirtual

Sets the center of mass for this physics body

Parameters

x	the x-coordinate of the center of mass for this physics body
y	the y-coordinate of the center of mass for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ setDensity()

virtual void cugl::physics2::SimpleObstacle::setDensity ( float value )

overridevirtual

Sets the density of this body

The density is typically measured in usually in kg/m^2. The density can be zero or positive. You should generally use similar densities for all your fixtures. This will improve stacking stability.

Parameters

value the density of this body

Reimplemented from cugl::physics2::Obstacle.

Reimplemented in cugl::physics2::CapsuleObstacle.

◆ setEnabled()

virtual void cugl::physics2::SimpleObstacle::setEnabled ( bool value )

inlineoverridevirtual

Sets whether the body is enabled

An disabled body not participate in collision or dynamics. This state is similar to sleeping except the body will not be woken by other bodies and the body's fixtures will not be placed in the broad-phase. This means the body will not participate in collisions, ray casts, etc.

Parameters

value whether the body is enabled

Reimplemented from cugl::physics2::Obstacle.

◆ setFilterData()

virtual void cugl::physics2::SimpleObstacle::setFilterData ( b2Filter value )

overridevirtual

Sets the filter data for this object

Collision filtering allows you to prevent collision between fixtures. For example, say you make a character that rides a bicycle. You want the bicycle to collide with the terrain and the character to collide with the terrain, but you don't want the character to collide with the bicycle (because they must overlap). Box2D supports such collision filtering using categories and groups.

A value of null removes all collision filters.

Parameters

value the filter data for this object

Reimplemented from cugl::physics2::Obstacle.

◆ setFixedRotation()

virtual void cugl::physics2::SimpleObstacle::setFixedRotation ( bool value )

inlineoverridevirtual

Sets whether this body be prevented from rotating

This is very useful for characters that should remain upright.

Parameters

value whether this body be prevented from rotating

Reimplemented from cugl::physics2::Obstacle.

◆ setFriction()

virtual void cugl::physics2::SimpleObstacle::setFriction ( float value )

overridevirtual

Sets the friction coefficient of this body

The friction parameter is usually set between 0 and 1, but can be any non-negative value. A friction value of 0 turns off friction and a value of 1 makes the friction strong. When the friction force is computed between two shapes, Box2D must combine the friction parameters of the two parent fixtures. This is done with the geometric mean.

Parameters

value the friction coefficient of this body

Reimplemented from cugl::physics2::Obstacle.

◆ setGravityScale()

virtual void cugl::physics2::SimpleObstacle::setGravityScale ( float value )

inlineoverridevirtual

Sets the gravity scale to apply to this body

This allows isolated objects to float. Be careful with this, since increased gravity can decrease stability.

Parameters

value the gravity scale to apply to this body

Reimplemented from cugl::physics2::Obstacle.

◆ setInertia()

virtual void cugl::physics2::SimpleObstacle::setInertia ( float value )

inlineoverridevirtual

Sets the rotational inertia of this body

For static bodies, the mass and rotational inertia are set to zero. When a body has fixed rotation, its rotational inertia is zero.

Parameters

value the rotational inertia of this body

Reimplemented from cugl::physics2::Obstacle.

◆ setLinearDamping()

virtual void cugl::physics2::SimpleObstacle::setLinearDamping ( float value )

inlineoverridevirtual

Sets the linear damping for this body.

Linear damping is use to reduce the linear velocity. Damping is different than friction because friction only occurs with contact. Damping is not a replacement for friction and the two effects should be used together.

Damping parameters should be between 0 and infinity, with 0 meaning no damping, and infinity meaning full damping. Normally you will use a damping value between 0 and 0.1. Most people avoid linear damping because it makes bodies look floaty.

Parameters

value the linear damping for this body.

Reimplemented from cugl::physics2::Obstacle.

◆ setLinearVelocity() [1/2]

virtual void cugl::physics2::SimpleObstacle::setLinearVelocity ( const Vec2 value )

inlineoverridevirtual

Sets the linear velocity for this physics body

This method converts from a CUGL vector type to a Box2D vector type. This cuts down on the confusion between vector types.

Parameters

value the linear velocity for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ setLinearVelocity() [2/2]

virtual void cugl::physics2::SimpleObstacle::setLinearVelocity	(	float	x,
		float	y
	)

inlineoverridevirtual

Sets the linear velocity for this physics body

Parameters

x	the x-coordinate of the linear velocity
y	the y-coordinate of the linear velocity

Reimplemented from cugl::physics2::Obstacle.

◆ setMass()

virtual void cugl::physics2::SimpleObstacle::setMass ( float value )

inlineoverridevirtual

Sets the mass of this body

The value is usually in kilograms.

Parameters

value the mass of this body

Reimplemented from cugl::physics2::Obstacle.

◆ setPosition() [1/2]

virtual void cugl::physics2::SimpleObstacle::setPosition ( const Vec2 value )

inlineoverridevirtual

Sets the current position for this physics body

This method converts from a CUGL vector type to a Box2D vector type. This cuts down on the confusion between vector types.

Parameters

value the current position for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ setPosition() [2/2]

virtual void cugl::physics2::SimpleObstacle::setPosition	(	float	x,
		float	y
	)

inlineoverridevirtual

Sets the current position for this physics body

Parameters

x	the current x-coordinate for this physics body
y	the current y-coordinate for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ setPositionSnap()

void cugl::physics2::SimpleObstacle::setPositionSnap ( unsigned int snap )

inline

Sets the number of decimal places to snap the node to the physics body

Physics bodies will have very precise positions, but these fractional positions may not be ideal for drawing, and may produce artifacts. When the value of snap is nonnegative, CUGL will round the position of the node to snap decimal places.

For example, if the snap is 0, it will always round position to the nearest integer. If it is 1, it will round it to the nearest 10th of a point. If it is -1 (or any negative value) it will not snap at all.

Parameters

snap	the number of decimal places to snap the node to the physics body

◆ setRestitution()

virtual void cugl::physics2::SimpleObstacle::setRestitution ( float value )

overridevirtual

Sets the restitution of this body

The friction parameter is usually set between 0 and 1, but can be any non-negative value. A friction value of 0 turns off friction and a value of 1 makes the friction strong. When the friction force is computed between two shapes, Box2D must combine the friction parameters of the two parent fixtures. This is done with the geometric mean.

Parameters

value the restitution of this body

Reimplemented from cugl::physics2::Obstacle.

◆ setSensor()

virtual void cugl::physics2::SimpleObstacle::setSensor ( bool value )

overridevirtual

Sets whether this object is a sensor.

Sometimes game logic needs to know when two entities overlap yet there should be no collision response. This is done by using sensors. A sensor is an entity that detects collision but does not produce a response.

Parameters

value whether this object is a sensor.

Reimplemented from cugl::physics2::Obstacle.

◆ setSleepingAllowed()

virtual void cugl::physics2::SimpleObstacle::setSleepingAllowed ( bool value )

inlineoverridevirtual

Sets whether the body should ever fall asleep

An sleeping body is one that has come to rest and the physics engine has decided to stop simulating it to save CPU cycles. If a body is awake and collides with a sleeping body, then the sleeping body wakes up. Bodies will also wake up if a joint or contact attached to them is destroyed. You can also wake a body manually.

Parameters

value whether the body should ever fall asleep

Reimplemented from cugl::physics2::Obstacle.

◆ setVX()

virtual void cugl::physics2::SimpleObstacle::setVX ( float value )

inlineoverridevirtual

Sets the x-velocity for this physics body

Parameters

value the x-velocity for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ setVY()

virtual void cugl::physics2::SimpleObstacle::setVY ( float value )

inlineoverridevirtual

Sets the y-velocity for this physics body

Parameters

value the y-velocity for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ setX()

virtual void cugl::physics2::SimpleObstacle::setX ( float value )

inlineoverridevirtual

Sets the x-coordinate for this physics body

Parameters

value the x-coordinate for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ setY()

virtual void cugl::physics2::SimpleObstacle::setY ( float value )

inlineoverridevirtual

Sets the y-coordinate for this physics body

Parameters

value the y-coordinate for this physics body

Reimplemented from cugl::physics2::Obstacle.

◆ update()

virtual void cugl::physics2::SimpleObstacle::update ( float delta )

overridevirtual

Updates the object's physics state (NOT GAME LOGIC).

This method is called AFTER the collision resolution state. Therefore, it should not be used to process actions or any other gameplay information. Its primary purpose is to adjust changes to the fixture, which have to take place after collision.

In other words, this is the method that updates the scene graph. If you forget to call it, it will not draw your changes.

Parameters

delta Timing values from parent loop

Reimplemented from cugl::physics2::Obstacle.

◆ updateDebug()

virtual void cugl::physics2::SimpleObstacle::updateDebug ( )

overrideprotectedvirtual

Repositions the debug wireframe so that it agrees with the physics object.

The debug wireframe is use to outline the fixtures attached to this object. This is very useful when the fixtures have a very different shape than the texture (e.g. a circular shape attached to a square texture).

Reimplemented from cugl::physics2::Obstacle.

Member Data Documentation

◆ _angFact

unsigned long cugl::physics2::SimpleObstacle::_angFact

protected

Cache of factor to snap rotation of image to physics body

◆ _angSnap

int cugl::physics2::SimpleObstacle::_angSnap

protected

Number of decimal places to snap rotation of image to physics body

◆ _body

b2Body* cugl::physics2::SimpleObstacle::_body

protected

The physics body for Box2D.

◆ _posFact

unsigned long cugl::physics2::SimpleObstacle::_posFact

protected

Cache of factor to snap position of image to physics body

◆ _posSnap

int cugl::physics2::SimpleObstacle::_posSnap

protected

Number of decimal places to snap position of image to physics body

The documentation for this class was generated from the following file:

include/cugl/physics2/CUSimpleObstacle.h

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SimpleObstacle()

◆ ~SimpleObstacle()

Member Function Documentation

◆ activatePhysics()

◆ createFixtures()

◆ deactivatePhysics()

◆ getAngle()

◆ getAngleSnap()

◆ getAngularDamping()

◆ getAngularVelocity()

◆ getBody()

◆ getBodyType()

◆ getCentroid()

◆ getGravityScale()

◆ getInertia()

◆ getLinearDamping()

◆ getLinearVelocity()

◆ getMass()

◆ getPosition()

◆ getPositionSnap()

◆ getVX()

◆ getVY()

◆ getX()

◆ getY()

◆ isAwake()

◆ isBullet()

◆ isEnabled()

◆ isFixedRotation()

◆ isSleepingAllowed()

◆ releaseFixtures()

◆ resetMass()

◆ setAngle()

◆ setAngleSnap()

◆ setAngularDamping()

◆ setAngularVelocity()

◆ setAwake()

◆ setBodyType()

◆ setBullet()

◆ setCentroid() [1/2]

◆ setCentroid() [2/2]

◆ setDensity()

◆ setEnabled()

◆ setFilterData()

◆ setFixedRotation()

◆ setFriction()

◆ setGravityScale()

◆ setInertia()

◆ setLinearDamping()

◆ setLinearVelocity() [1/2]

◆ setLinearVelocity() [2/2]

◆ setMass()

◆ setPosition() [1/2]

◆ setPosition() [2/2]

◆ setPositionSnap()

◆ setRestitution()

◆ setSensor()

◆ setSleepingAllowed()

◆ setVX()

◆ setVY()

◆ setX()

◆ setY()

◆ update()

◆ updateDebug()

Member Data Documentation

◆ _angFact

◆ _angSnap

◆ _body

◆ _posFact

◆ _posSnap
