cugl::scene2::Action Class Reference

#include <CUAction.h>

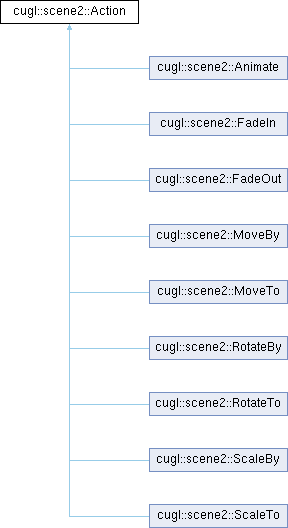

Inheritance diagram for cugl::scene2::Action:

Public Member Functions
	Action ()
	~Action ()
float	getDuration () const
void	setDuration (float time)
virtual std::shared_ptr< Action >	clone ()
virtual void	load (const std::shared_ptr< SceneNode > &target, Uint64 *state)
virtual void	update (const std::shared_ptr< SceneNode > &target, Uint64 *state, float dt)
virtual std::string	toString (bool verbose=false) const
	operator std::string () const

Protected Attributes
float	_duration

Detailed Description

This class provides an template for an animation action template.

An action contains only the definition of the animation. This can include information about the transform to use or the duration of the animation. However, it does not contain any attribute of the target. Hence, an action can be reapplied to different targets.

By itself, an action does nothing. It only specifies an action that may take place. To use an action, it must be passed to the ActionManager. The manager will create an action instance and animate that instance. While an action may be reused many times, an action instance corresponds to a single animation.

To define a custom action, simply create a subclass and override the uppdate method. This is the method that an action uses to update its target Node.

Constructor & Destructor Documentation

Action()

cugl::scene2::Action::Action ( )

inline

Creates an uninitialized action.

NEVER USE A CONSTRUCTOR WITH NEW. If you want to allocate an object on the heap, use one of the static constructors instead.

~Action()

cugl::scene2::Action::~Action ( )

inline

Deletes this action, disposing all resources

Member Function Documentation

clone()

virtual std::shared_ptr< Action > cugl::scene2::Action::clone ( )

virtual

Returns a newly allocated copy of this Action.

Returns

a newly allocated copy of this Action.

Reimplemented in cugl::scene2::Animate, cugl::scene2::FadeOut, cugl::scene2::FadeIn, cugl::scene2::MoveBy, cugl::scene2::MoveTo, cugl::scene2::RotateBy, cugl::scene2::RotateTo, cugl::scene2::ScaleBy, and cugl::scene2::ScaleTo.

getDuration()

float cugl::scene2::Action::getDuration ( ) const

inline

Returns the duration (in seconds) of this animation

Changing this value in mid-animation has undefined side-effects.

Returns

the duration (in seconds) of this animation

load()

virtual void cugl::scene2::Action::load ( const std::shared_ptr< SceneNode > &  target, Uint64 *  state  )

inlinevirtual

Prepares a target for action

The important state of the target is stored in the given state parameter. The semantics of this state is action-dependent.

Parameters

target	The node to act on
state	The relevant node state

Reimplemented in cugl::scene2::Animate, cugl::scene2::FadeOut, cugl::scene2::FadeIn, cugl::scene2::MoveTo, cugl::scene2::RotateTo, cugl::scene2::ScaleBy, and cugl::scene2::ScaleTo.

operator std::string()

cugl::scene2::Action::operator std::string ( ) const

inline

Cast from an Action to a string.

setDuration()

void cugl::scene2::Action::setDuration ( float  time )

inline

Sets the duration (in seconds) of this animation

Changing this value in mid-animation has undefined side-effects.

Parameters

time	the duration (in seconds) of this animation

toString()

virtual std::string cugl::scene2::Action::toString ( bool  verbose = false ) const

virtual

Returns a string representation of the action for debugging purposes.

If verbose is true, the string will include class information. This allows us to unambiguously identify the class.

Parameters

verbose

Whether to include class information

Returns

a string representation of this action for debuggging purposes.

Reimplemented in cugl::scene2::Animate, cugl::scene2::FadeOut, cugl::scene2::FadeIn, cugl::scene2::MoveBy, cugl::scene2::MoveTo, cugl::scene2::RotateBy, cugl::scene2::RotateTo, cugl::scene2::ScaleBy, and cugl::scene2::ScaleTo.

update()

virtual void cugl::scene2::Action::update ( const std::shared_ptr< SceneNode > &  target, Uint64 *  state, float  dt  )

inlinevirtual

Executes an action on the given target node.

The important state of the target is stored in the given state parameter. The semantics of this state is action-dependent.

Parameters

target	The node to act on
state	The relevant node state
dt	The elapsed time to animate.

Reimplemented in cugl::scene2::Animate, cugl::scene2::FadeOut, cugl::scene2::FadeIn, cugl::scene2::MoveBy, cugl::scene2::MoveTo, cugl::scene2::RotateBy, cugl::scene2::RotateTo, cugl::scene2::ScaleBy, and cugl::scene2::ScaleTo.

Member Data Documentation

_duration

float cugl::scene2::Action::_duration

protected

The duration (in seconds) of the animation

---

The documentation for this class was generated from the following file:

• cugl/include/cugl/scene2/actions/CUAction.h
