cugl::Sound Class Reference

#include <CUSound.h>

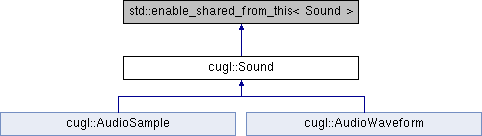

Inheritance diagram for cugl::Sound:

Public Member Functions
	Sound ()
	~Sound ()
virtual void	dispose ()
Uint32	getRate () const
Uint32	getChannels () const
virtual Sint64	getLength () const
virtual double	getDuration () const
const std::string	getFile () const
const std::string	getSuffix () const
float	getVolume () const
void	setVolume (float volume)
virtual std::shared_ptr< audio::AudioNode >	createNode ()

Protected Attributes
Uint8	_channels
Uint32	_rate
std::string	_file
float	_volume

Detailed Description

This class is the base type for a sound asset.

Eventually, our goal is to support arbitrary audio graphs as assets (e.g. PureData patch files). But we need a way of distinguishing a graph as an asset and a graph as an active audio instance. That is the purpose of this class. While an audio::AudioNode is an active sound instance, this is the class of an asset file.

This is an abstract class. You should never make a sound object directly. The factory allocator will create the proper subclass. Currently there are only two completed subclass: AudioSample and AudioWaveform. Will expand on this in future releases.

Constructor & Destructor Documentation

Sound()

cugl::Sound::Sound

(

)

Creates a degenerate sound with no resources.

NEVER USE A CONSTRUCTOR WITH NEW. If you want to allocate an asset on the heap, use one of the static constructors instead.

~Sound()

cugl::Sound::~Sound ( )

inline

Deletes this sound, disposing of all resources.

Member Function Documentation

createNode()

virtual std::shared_ptr<audio::AudioNode> cugl::Sound::createNode ( )

inlinevirtual

Returns a playble audio node for this asset.

This audio node may be attached to an audio::AudioOutput for immediate playback. Nodes are distinct. Each call to this method allocates a new audio node.

Returns

a playble audio node for this asset.

Reimplemented in cugl::AudioWaveform, and cugl::AudioSample.

dispose()

virtual void cugl::Sound::dispose ( )

virtual

Deletes the sound resources and resets all attributes.

This will delete the file reference and any allocated resources. You must reinitialize the sound data to use the object.

Reimplemented in cugl::AudioWaveform, and cugl::AudioSample.

getChannels()

Uint32 cugl::Sound::getChannels ( ) const

inline

Returns the number of channels used by this sound.

A value of 1 means mono, while 2 means stereo. Depending on the file format, other channels are possible. For example, 6 channels means support for 5.1 surround sound. 8 channels (7.1 surround) is the current maximum.

We support up to 32 possible channels.

Returns

the number of channels used by this sound.

getDuration()

virtual double cugl::Sound::getDuration ( ) const

inlinevirtual

Returns the length of this sound in seconds.

The accuracy of this method depends on the specific implementation. If the asset is infinite (e.g. AudioWaveform), then this method returns a negative value.

Returns

the length of this sound in seconds.

Reimplemented in cugl::AudioWaveform, and cugl::AudioSample.

getFile()

const std::string cugl::Sound::getFile ( ) const

inline

Returns the file for this sound

This value is the empty string if there was no source file.

Returns

the file for this sound

getLength()

virtual Sint64 cugl::Sound::getLength ( ) const

inlinevirtual

Returns the frame length of this sound.

The frame length is the number of audio samples in the asset. If the asset is infinite (e.g. AudioWaveform), then this method returns a negative value.

Returns

the frame length of this sound.

Reimplemented in cugl::AudioWaveform, and cugl::AudioSample.

getRate()

Uint32 cugl::Sound::getRate ( ) const

inline

Returns the sample rate of this sound.

Returns

the sample rate of this sound.

getSuffix()

const std::string cugl::Sound::getSuffix

(

)

const

Returns the file suffix for this sound asset.

Until we expose more functionality about the encoding, this is a poor man's way of determining the file format.

Returns

the file suffix for this sound asset.

getVolume()

float cugl::Sound::getVolume ( ) const

inline

Returns the default volume of this sound asset.

This default value will be used when the sound is played without a specified volume. The value is between 0 and 1, where 0 means muted and 1 is maximum volume.

Changing this value will only affect future calls to createNode().

Returns

the default volume of this sound asset.

setVolume()

void cugl::Sound::setVolume

(

float

volume

)

Sets the default volume of this sound asset.

This default value will be used when the sound is played without a specified volume. The value is between 0 and 1, where 0 means muted and 1 is maximum volume.

Changing this value will only affect future calls to createNode().

Parameters

volume

The default volume of this sound asset.

Member Data Documentation

_channels

Uint8 cugl::Sound::_channels

protected

The number of channels in this sound (max 32)

_file

std::string cugl::Sound::_file

protected

The source for this buffer (may be empty)

_rate

Uint32 cugl::Sound::_rate

protected

The sampling rate (frequency) of this sound

_volume

float cugl::Sound::_volume

protected

The default volume for this sound

---

The documentation for this class was generated from the following file:

• include/cugl/audio/CUSound.h
