Experimenting with FuTIL

by Theodore Bauer December 18, 2020

The Capra lab at Cornell is building FuTIL, which is, quoted from its GitHub README, "an intermediate language and infrastructure for building compilers that generate custom hardware accelerators." One area of focus lately has been compiler optimizations; if we can write a good range of effective optimizations for FuTIL, it helps to build the case that it's a suitable target for new hardware programming languages.

For my CS6120 final project, I experimented with adding a few pieces of functionality to Calyx, FuTIL's compiler. I added a compiler pass that attempts to statically infer latencies of subportions of FuTIL programs, and I experimented with adding another compiler pass that augments while loops with speculative execution.

FuTIL Basics

The FuTIL documentation has a great tutorial that illustrates the structure of FuTIL programs, and would be worth walking through to contextualize the rest of this blog post. Briefly paraphrased from the tutorial, FuTIL programs are composed of three sections:

• a cells section, containing the hardware subcomponents contained in the program. Those subcomponents are hereafter in this post called cells. For example, the FuTIL standard library contains definitions for cells such as memories or registers.
• a wires section, specifying the wires that connect cells to one another via cell ports. For example, a wires section might contain the statement x.in = y.out;, which would represent connecting a wire between the out port of y, and the in port of x. These definitions can be organized into groups.
• a control section, defining when groups execute. FuTIL supports various control constructs, like while loops and if/else statements, as well as par and seq statements, to signal to execute groups in parallel or in sequence.

Static Timing Inference Compiler Pass

Introduction

The Calyx compiler features an optimization pass that leverages static knowledge about group latencies. Generated programs are sped up, because the compiler doesn't need to insert extra logic to wait for a group to finish, if it already knows the latency of the group. Frontends that are targeting FuTIL can supply this information with group annotations:

group a<"static"=5> {
  ...
}

The static timing inference pass attempts to infer this "static" value and insert it automatically, or error out if its inferred value doesn't match an already existing (and then necessarily incorrect) annotation.

Inferring group Latencies

FuTIL cells have go/done interfaces. The go port for a cell, when high, indicates that the cell should start its computation. When the cell finishes executing, it will make its done port high. The names of these ports can be anything. For example, the FuTIL standard library contains a definition for a register cell, which has a go port called write_en, indicating that it's time to write a value, and a done port, indicating that the write is complete.

Inferring the latency of any group is uncomputable, as it almost directly amounts to solving the halting problem, so the static timing inference pass targets a subset of groups that meet some specific criteria:

1. All go ports are written to only by done ports or constants.
2. All done ports are only written to by other done signals.
3. The latency of each cell in this chain of go/done signals is known statically.

Expanding a little on condition 3, we know the static latency of some cells---that is, the number of cycles it takes from the moment a go signal is raised to when the done signal is raised. For example, registers, as they are defined in the FuTIL standard library, have a latency of 1 cycle.

Here's an example of a group, named a, that meets the three criteria outlined above:

group a {
  register1.write_en = 1'd1;
  a[done] = register1.done;
}

The go port of register1 is driven by a constant, and the done signal of the group is written by the done signal of register1, so the compiler pass infers that a takes 1 cycle to execute.

This idea can be extended to form these sort of go/done chains:

group b {
  r1.write_en = 1'd1;
  r2.write_en = r1.done;
  r3.write_en = r2.done;
  b[done] = r3.done;
}

The pass implementation infers latencies for these groups with a graph-based approach. The FuTIL codebase provides a convenient library for generating graphs representing different parts of FuTIL programs. The inference pass uses this graph library to generate a graph with the following algorithm:

1. Create nodes for every port in the group.
2. Draw an edge between each node $(u, v)$ if $u$ writes to $v$.
3. Draw an edge between each node $(u, v)$ if $u$ is a done signal, and $v$ is a go signal.
4. Delete isolated vertices (vertices with indegree and outdegree $0$).
5. Weight each edge after a go port with the latency of its parent cell.

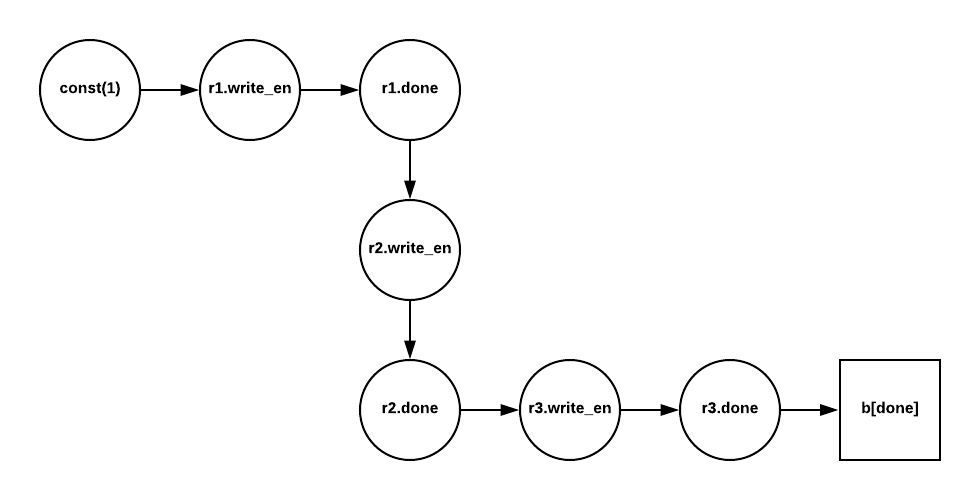

For example, the group b would have this graph built from it:

The pass then simply traverses the path between the start node and end node (which can be found by computing the first and last elements of a topological sort), summing the edge weights along the way. If there is no path, then this sort of go/done chain pattern isn't in the group, and the pass conservatively gives up.

Evaluation

I added some simple unit tests to the FuTIL test suite, to ensure some testing coverage of the compiler pass. The pass also runs during the existing FuTIL correctness tests, of which there are over 10 FuTIL programs, 3 of which are generated by a systolic array-to-FuTIL compiler.

While Loop Speculative Execution

Overview

I also added an experimental compiler pass that converts some FuTIL while loops to use speculative execution. For instance, this program performs a sequence of multiplications, until the value stored in register r2 is greater than or equal to a number target:

while lt.out with cond { // while r2 < target
  seq {
    write_r1;    // r1 := r1 * 5;
    write_r2_s1; // r2 := r1 * 3;
    write_r2_s2; // r2 := r2 : 4;
  }
}

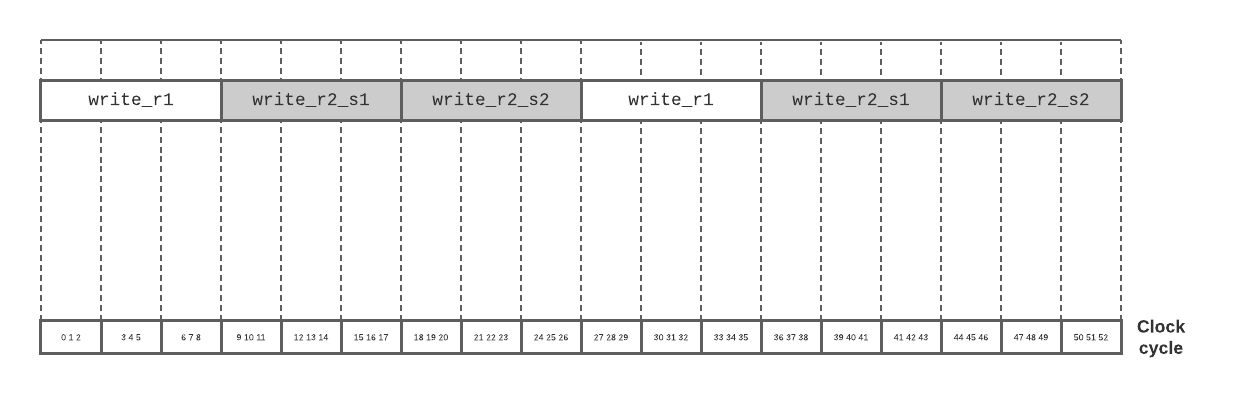

The multipliers used to perform these operations are engineered to take 3 clock cycles each. A normal, non-speculative schedule for this loop would look like this:

The pass transforms the loop to start with part of the body, namely write_r1, and then continue on to execute the rest of the loop, but in parallel with a speculative execution of the next iteration:

while lt.out with cond {
  seq {
    write_r1;

    par {
      seq { write_r2_s1; write_r2_s2; };
      seq { write_r1_spec; write_r2_s1_spec; write_r2_s2_spec; }
    }

    if lt.out with cond {
      commit_spec;
    }
  }
}

The speculative groups write_r1_spec, write_r2_s1_spec and write_r2_s2_spec are copies of their similarly named counterparts, but they write to buffer registers that are not committed to real registers (done with the group commit_spec) until the speculative iteration is confirmed to be required.

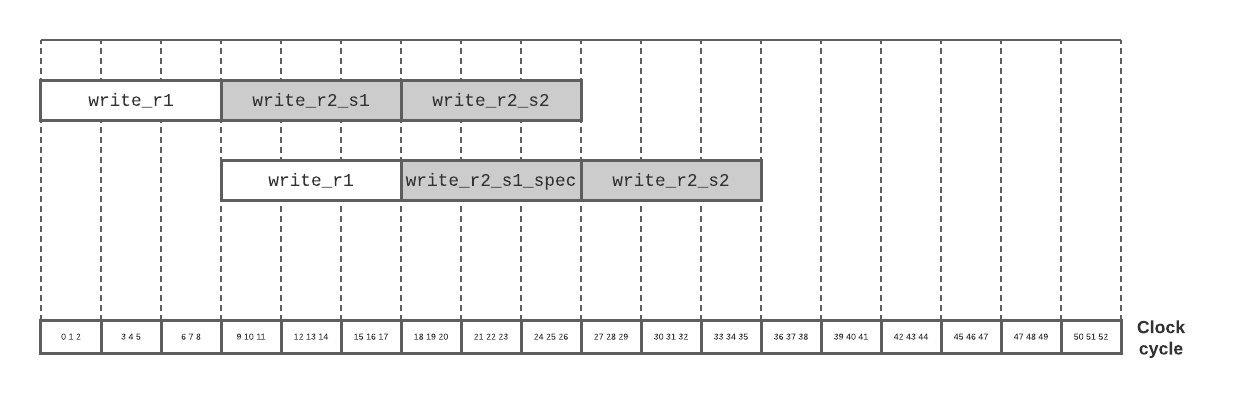

Such a transformed loop would be able to perform two iterations worth of work with a schedule like this, and save on clock cycles:

Evaluation

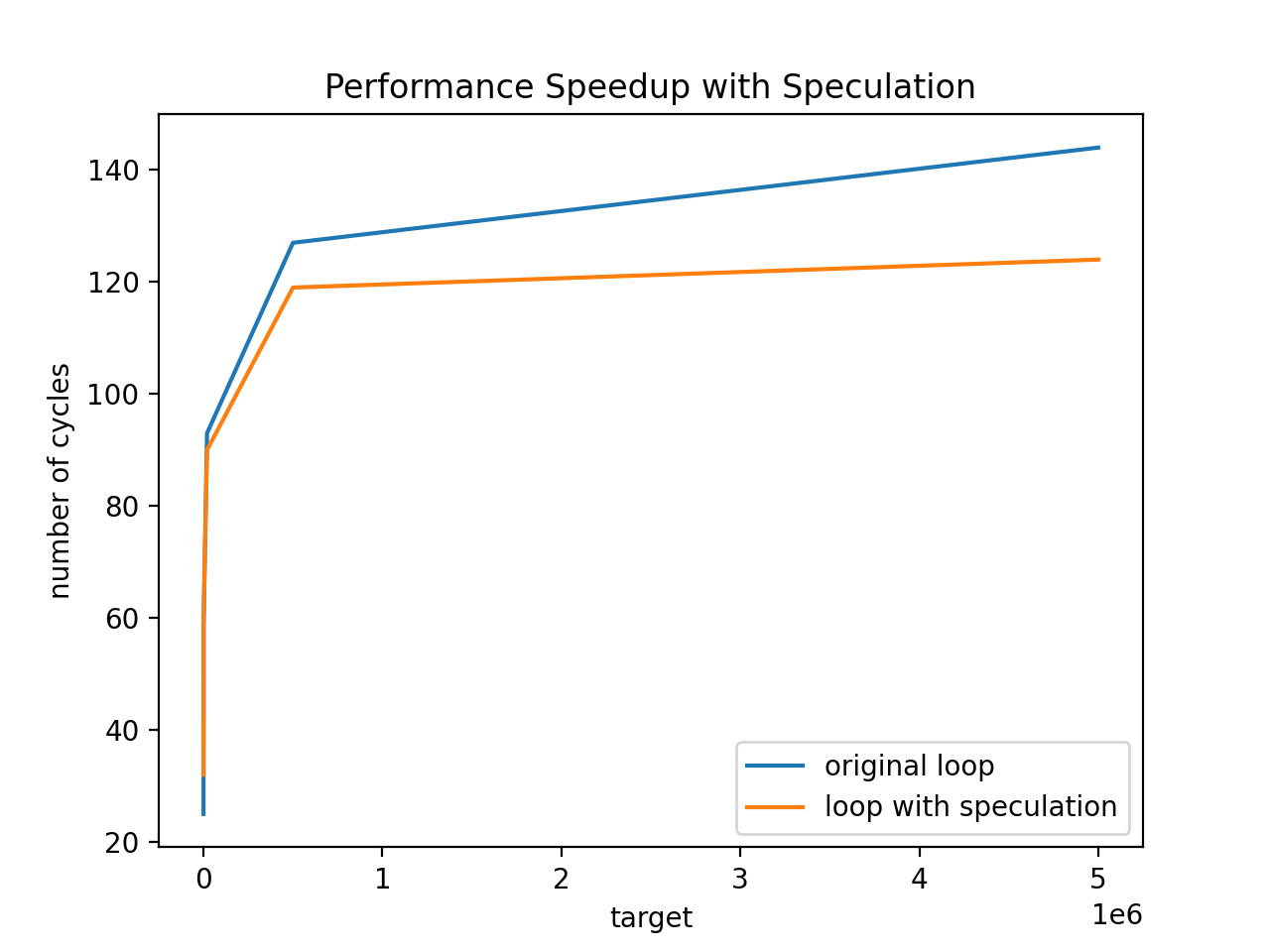

I tried out the speculation-augmented loop above with varying values for target. At first, the overhead of the extra hardware needed to implement the speculative execution made the loop slightly more inefficient, for small values of target, but then quickly the performance speedup outweighed that cost:

Future Directions

The speculative execution compiler pass transforms only a small number of loops that meet fairly specific criteria; it would be interesting to see how to make the pass applicable to a broader range of programs.

Conclusion

The static inference pass and speculative execution pass both support the claim that FuTIL is a flexible and effective hardware intermediate representation. The static inference pass makes writing frontends a little bit easier, as the frontend developer doesn't need to supply as much static latency information; and the speculative execution pass demonstrates an example of a hardware optimization at the FuTIL level that brings tangible performance benefit.
