Bringing You Up to Speed on How Compiling WebAssembly is Faster

by Sachille Atapattu

If you're a geography buff like me (you're probably not, but one can hope), you might remember the time when you downloaded an app to get the exhilarating experience of zooming on top of a volcano, or onto an island in the middle of the Pacific, or onto the top of the Eiffel. Then do you remember when you could do these feats from the convenience of the Chrome browser? Well, then you might have just heard that now you can do it in (almost) any browser out there. For me, that's what WebAssembly brings.

In this article, I don't expect to talk much about the language (or binary code format) itself, but implications of its compilation which makes things like Google Earth on a browser possible.

What is WebAssembly?

WebAssembly is a binary code format to transfer web applications from the server to the browser. It is incorporated in modern browsers to be used in tandem with existing JavaScript applications, and uses components from existing JavaScript engines to interpret and execute. It has taken the world wide web by storm as,

What this means is you could write a web application in C, compile it to WebAssembly and use it on any browser on any hardware. This gives much more performance in general than a JavaScript program, which has type classification overheads and overheads at parsing and verification. Existing technologies also has performance implications based on which browser you target (different browsers used different techniques to optimize applications on browsers).

Is WebAssembly just C on browsers?

WebAssembly does brings the performance of pre-compiled languages to web browsers. But it does so side-by-side with traditional JavaScript running on the same engines. This allows browsers to have best of both worlds, drive the Ferrari on the race track--- run performant WebAssembly when it needs performance--- or drive the Prius to the grocery store--- quickly getting a simple web application up and running.

With WebAssembly, you could use JavaScript for fast development, but also use C where you need performance. You could use C (and many other languages) where static typing is useful, but JavaScript where dynamic typing is a necessity for productivity. And you could combine these modules, leveraging interoperability to balance productivity and performance, as both these styles can now be executed in the same compiler flow. So WebAssembly is more than just C on browsers, it's a carefully coordinated, well-designed, massive engineering effort to reconcile two worlds at odds.

How does it differ from existing tools?

So WebAssembly is portable, but doesn't the Java Virtual Machine (JVM) already offer portability? Even though the overall goal has some similarities, Java cannot be run on a browser without plugins and has doesn't have the language flexibilty WebAssembly provides. This is due to Java's portability coming from the ability to run Java programs in different platforms, and therefore not designed to run programs written in multiple languages in a browser. Java also doesn't solve the issues JavaScript poses through interpreter based execution and garbage collection. Moreover, WebAssembly is designed to make validation easier. Java was not designed with formalization in mind, and therefore is complex to validate. Structured control flow and single pass compilation and validation places WebAssembly as a mature option compared to existing bytecode formats such as JVM and CIL (Common Intermediate Language) which contain irreducible loops and unbalanced locking features that are hard to be handled with JIT compilers and are relegated to the interpreter. And these design decisions has made WebAssembly a better candidate to implement performant and portable to run different languages natively on a browser.

WebAssembly also performs better compared to recent technologies with a similar goal. Firstly, it can outperform asm.js from optimizations beyond what can be done with JavaScript, WebAssembly has faster download with smaller code size, it does not require parsing as it's already in a binary format. Even though asm.js compilation is different from regular JavaScript interpretation, and is statically typed as WebAssembly, it is still limited by JavaScript. It is not as compact as WebAssembly as a transporting format. Moreover, WebAssembly is designed to use CPU features that are not expressible in JavaScript, such as 64-bit integers. Secondly, it replaces NaCL as a go-to tool to run C programs in a browser, as WebAssembly is well integrated to the JavaScript ecosystem. Meanwhile, NaCL used sandboxing within applications to integrate. In fact, the two optimization fronts offered from these two tools gave the incentive to merge them as WebAssembly.

Compiling for WebAssembly

The overall execution flow of WebAssembly has two phases. The frontend
compiles and optimizes C (and other) programs to WebAssembly. The WebAssembly bytecode is downloaded to the browser, where the time-critical compilation to machine code occurs. This phase is compared to the conventional JavaScript execution.

A major component of speedup from WebAssembly comes from the compilation. Using JavaScript, your JavaScript engine would go through the phases of parsing, baseline compilation, optimizing compiler, re-optimizing and bail out, execute and garbage collection to run an application. WebAssembly affects each of these stages to be more performant, and even completely obviating the need of some.

To begin with, WebAssembly is more compact than JavaScript source code, making it faster to fetch from the server. Then WebAssembly doesn't need parsing; it's already compiled down to virtual instructions which only need decoding like in actual hardware. The WebAssembly compiler can do this decode much faster than the JavaScript engine parsing JavaScript code to an IR.

Then benefits of WebAssembly from actual compilation kick in. JavaScript needs to be compiled to multiple versions based on what types are in use (similar to any other dynamically typed language). WebAssembly is a sound, statically typed language, which has its types encoded during offline compilation on to WebAssembly. Therefore, it doesn't need monitoring to figure out the types, and maintain multiple versions. Unlike in the JavaScript engine, WebAssembly also doesn't need to do most optimizations, except for platform and hardware dependent ones, as everything else is already done in static compile time.

Since WebAssembly doesn't need assumptions (such as which type certain object is) during interpretting, the compiler doesn't need to bail out and reoptimize as such errors never occur. Finally, WebAssembly also allows you to manage memory manually (it only supports manual memory management as of now, but automation is to be added as an option) which allows you to avoid expensive garbage collection.

Therefore, WebAssembly only requires compiler backend, module loading frontend, security sandboxing and supporting VM components in the existing JavaScript engine, and skips parsing, most compiler optimizations, bail out and garbage collection.

Implementing WebAssembly compilers

WebAssembly is walking a tight rope between high performance (C world), and safety and portability (JS world). It is hard to theorize how to optimize for it, so the WebAssembly team implemented extensions in different browsers to validate that it is indeed possible to achieve the said goal.

V8 (from Chrome) and SpiderMonkey (from Firefox) reuse their optimizing JIT compilers to compile ahead of time. This provides them predictable high performance, as opposed to the unpredictable warmup times with JavaScript. Chakra (from Edge) uses lazy translation and optimizes only hot code. This achieves faster startup time.

To permit efficient use of baseline JIT compilers, WebAssembly is designed to do fast validation and ability to track registers for allocation without IR generation. This is done by careful design of WebAssembly instructions, which the pass can use to extract register information. To integrate well with optimizing JIT compilers, WebAssembly is designed to do direct-to-SSA translation (WebAssembly is not in SSA form, but offers some tools to derive an SSA form). Moreover, structured control flow makes decoding simpler.

Another key aspect in running native code in a browser is security. Sandboxing for C/C++ has required extensive code rewriting. However, WebAssembly is executed in a sandboxed environment clearly separated from the host, making it possible to provide some security guarantees. WebAssembly avoids performance overheads through sandboxing to run at near native speed with the model created by Native Client which employs static validation of x86 machine code by mandating code generators to follow certain patterns.

How good is it?

Writing code in WebAssembly doesn't mean it'll be automatically faster. However, programs are already optimized during compilation to WebAssembly (more time for the compiler to optimize) by trading off flexibility for an optimized general case and WebAssembly compiler can leverage its generality to do additional optimizations better than on generic JavaScript. So in practice WebAssembly can be much more performant.

The following bar graph demonstrates how WebAssembly performs comparative to native code (running a C application). Most benchmarks are within 10% of native performance.

An article from some designers of WebAssembly suggests that WebAssembly can run at about 80% performance of native applications. The paper also reports that performance compared to the state-of-the-art mechanism to execute native programs in a browser, asm.js, is about 33.7% better.

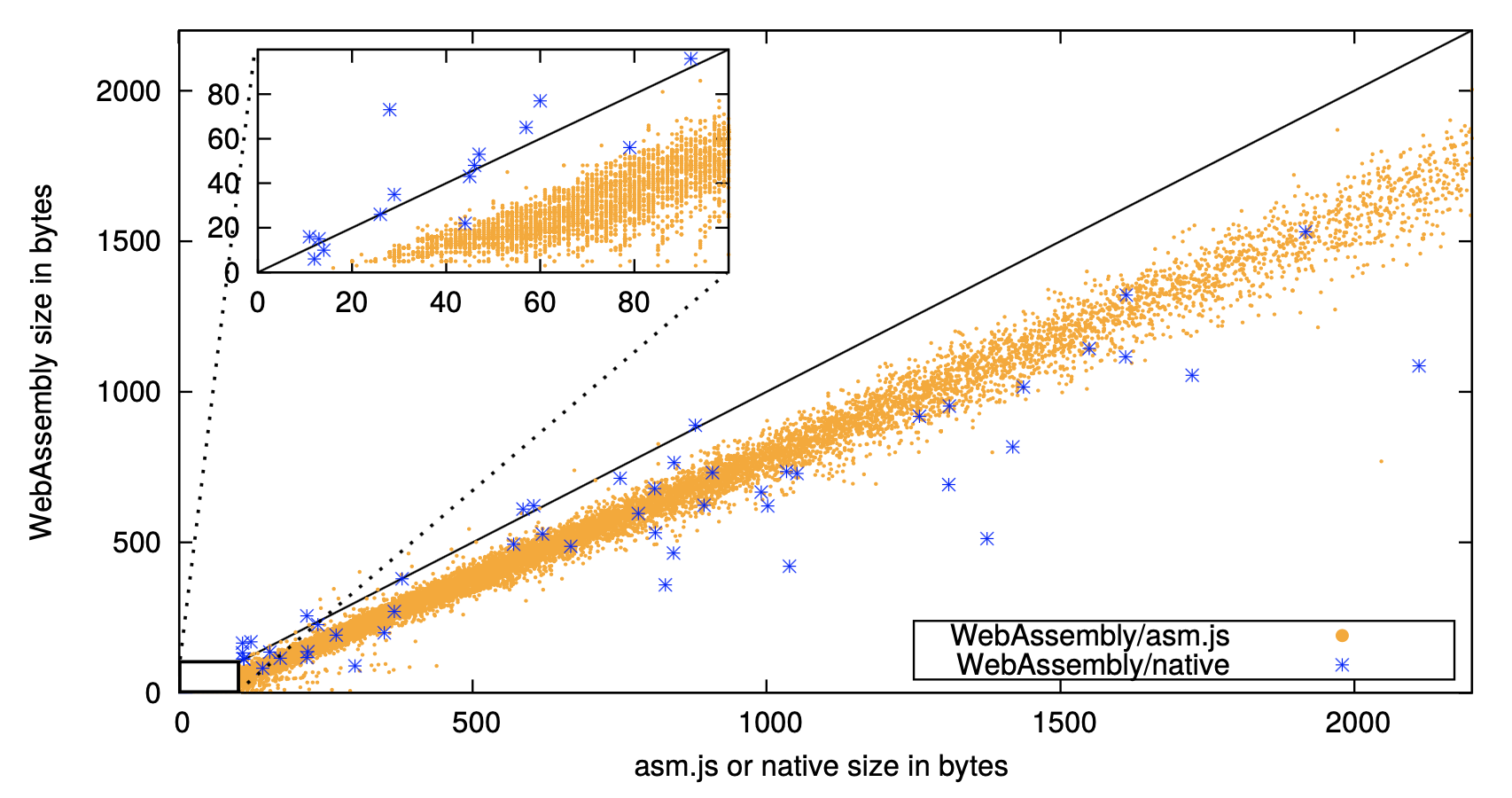

This scatter plot illustrates WebAssembly's benefits in terms of code size. They are on average 37.5% smaller than asm.js code and 14.7% smaller than native code.

What does this mean?

Well, as I said, Google Earth on any browser. Just in case that's not enough, playing a game on a browser is going to be very similar to downloading an app and running it natively, you can share your CAD design to someone over the web and have them take a look at it without downloading the files or even having the necessary tools installed, you'll see a lot more sophisticated features in websites such as social media, all you need is a device with a browser to experience almost any service, downloading an app is not going to be the same--- why would you, when you get similar (in human perception) performance by running them on a broswer without the overhead of installing?

What's next?

WebAssembly has already achieved a lot in a short span of time (3 years since introduced in 2017). It is already supported in all major browsers and popular development kit Emscripten offers compiling C down to .wasm via asm.js. Personally, it has already enabled running Google Earth on any browser (what more do you need!!).

Yet, WebAssembly is in its infancy. The popular compiler toolchain, the LLVM project, has already added a backend for it and developers are adding debug tools to improve the WebAssembly eco-system.

More exciting and enabling future options to WebAssembly may include

How to learn more...
