Bril JIT with On-Stack Replacement

by Gautam Mekkat, Mark Anastos, Eashan Garg, Sameer Lal

Interpreters

Many widely-used programming languages such as Python and JavaScript rely heavily on interpreters. Some representation of the source code is passed to the interpreter, where the instructions are evaluated immediately.

Since interpreters do not translate source programs to machine code and they only consider the subset of instructions that are actually evaluated at run time, startup cost for a program is minimized. This is huge for developers who may update and run programs hundreds of times over. So interpreters are fast for source translation but overall have slow performance because they are not optimized for the architecture itself.

JITs and On-Stack Replacement

Ideally, we want to compile our program to machine code which will allow us to perform platform specific optimizations. However, compilation can be costly and in doing so, we lose the startup time benefit of an interpreter.

A just-in-time (JIT) compiler attemps to find the best of both worlds. Instead of compiling source code ahead of time, a JIT compiler aims to compile code at run time. There are three advantages to highlight with this approach:

  1. Only the functions that the program executes at run time are compiled to machine code. In addition, every compilation is much smaller in scope, so this overhead is spread throughout the execution.
  2. Run-time profiling information can be utilized for more advanced optimizations that ahead-of-time (AOT) compilers cannot take advantage of.
  3. By compiling at run time, users only need to install one version of a program, as the JIT can dynamically resolve the architecture it needs to compile source code to. For example, Java code is compiled to platform-independent Java bytecode, which can then be executed by a platform-aware Java Virtual Machine (JVM).

The main benefit of a JIT is the speed-up; the process that starts from source code and ends with execution can often be completed faster with JIT compilation than with interpretation or with regular compilation followed by execution. While a basic JIT compiler will always compile a code fragment when it is reached in the execution, more sophisticated versions can incorporate an interpreter. The JIT will then decide to interpret a section of code if it seems like the upfront time cost of compilation would not be made up for by the speed gains of native execution over interpretation. This allows us to combine the start-up benefits of an interpreter with the speed of a JIT.

One problem with traditional JITs is that they often compile code in fairly large segments, typically at the function level or even entire files. This poses a problem because a JIT compiler may decide to interpret a function based off of its heuristic, when it should actually compile it for the best performance. Furthermore, once the JIT has decided to, say, interpret a function, it cannot change that decision until the next time the function is reached. If a function being interpreted turns out to execute for much longer than expected, we have no way to optimize it until it ends. As such, we need a way to retroactively decide when to compile snippets of code.

The solution to this is on-stack replacement (OSR). In the middle of executing a function in interpreted mode, we may decide to compile the function to get better performance. This is different from a normal JIT, which will either compile the entire function or not compile it at all.

Consider the following Bril program:

main {
  one: int = const 1;
  b: bool = const true;
  c: int = const 0;
  max: int = const 1000;
loop:
  c: int = add c one;
  b: bool = le c max;
  br b loop end;
end:
  # Rest of program
}

Naïvely, a JIT compiler may not compile the main function as it appears to be short or not computationally intensive. However, upon execution, a JIT with OSR will be able to see that the same snippet of code is running over and over again, and will switch from interpreted mode to compiled mode to enhance performance.

On-stack replacement is more complicated implementation-wise than normal just-in-time compilation, as it needs to map the current state of execution from the interpreter to the compiled execution. This includes placing the values of variables in the correct positions, as well as resuming execution from the correct program point. We use a heuristic marking code sections that are frequently run as "hot," and then compiling a function with OSR if any section in it is determined to be sufficiently hot. This allows us to switch from interpreted to compiled code when it will likely be beneficial, and allows us to get the benefits of both modes of execution.

Design Overview

In order to explore the use cases for JITs and on-stack replacement, we built Bril-OSR. Here's how it works.

At Bril-OSR's core is an efficient interpreter, with a series of arguments to toggle its various features on and off. With the -jit flag turned on, the interpreter will compile functions to x86-64 machine code at run time, and execute them. The threshold at which the interpreter compiles functions can be tuned by the programmer, representing the number of times a function must be called before it is compiled. The -osr flag is similar, although it operates at a basic block level. If a block is executed n times by the program at run time, the function housing it will be compiled to machine code, and evaluation will resume where the interpreter left off. The value of n is also configurable as an argument to Bril-OSR.

Note: We decided to write Bril-OSR in Rust for two main reasons:

  1. A compiled systems language, when used well, should give some exciting performance boosts (especially when compared to the baseline TypeScript interpreter, Brili).
  2. The dynasm-rs crate is an awesome tool for code generation, and is built with just-in-time compilers in mind!

Building a Faster Interpreter in Rust

To provide a fair baseline to compare with both the JIT and the JIT with OSR, we built an efficient interpreter in Rust.

First, we took advantage of the Serde crate to deserialize Bril JSON into native Rust structs that represent a Bril program. With #[derive(Deserialize)], this process is fairly automatic, and the generated code is quite efficient as well! To make interpretation easier, the structs implement the From trait to map Rust strings to specialized enums that represent opcodes and types in Bril.

Interpretation is implemented by pattern matching by opcode, since each line in Bril only has a single operation. Variables and their values are stored in an environment map local to the function that is currently evaluating. On function calls, Bril-OSR creates a new environment map with the function arguments, and passes evaluation to the callee.

Note: We built off of our first project, Bril(), as we need to support multiple functions, arguments, calls, and return values.

Code Generation and JIT Compilation

To build a JIT compiler, we needed infrastructure for code generation. We used dynasm-rs to be able to write assembly code and have it dynamically assemble and execute as part of the Rust program. Our translation from Bril to assembly is rather simplistic, as we do not implement any sort of register allocation or other optimizations.

We first create a standard assembly function prologue, which involves storing the current base pointer, and allocating stack space for this function. We allocate one 64-bit word of stack space for each unique variable that is defined in the function or is an argument to the function.

Next, we iterate through the instructions of the Bril program and generate assembly code for each. The assembly for most Bril instructions generally follows the structure of getting a variable from the stack, applying some operation to it, and then storing back on the stack. For example, the assembly for an instruction a: int = add b c would look roughly like:

mov rax, [rbp - b_stack_position]
add rax, [rbp - c_stack_position]
mov [rbp - a_stack_position], rax

In order to implement the print instruction, we created basic Rust functions to print an integer or a boolean, and then used standard calling conventions to call these functions from the assembly code.

Function Calls

The most difficult part of code generation was implementing function calls (as defined in the Bril() language extension). Because this is a just-in-time compiler, a function being called may or may not already be compiled. As such, we cannot simply call the other function using standard calling conventions. Instead, we created another Rust function, handle_call, for the assembly to call when encountering a Bril call instruction. To this function, the assembly passes an integer identifying the Bril function that it wants to call.

This function can then see if the Bril function has already been compiled, and run it if so, or otherwise decide whether to compile it now or interpret it. However, to perform these actions, handle_call needs access to the internal state of the compiler, and, as such, really needs to be a method of the main compiler struct. And, to call a method, you need to pass in a reference to the self variable. As such, the assembly Bril function needs to have a reference to this struct. To solve this, we decided on a convention that every time an assembly function is called, it is passed a reference to self as an argument. That reference is then stored on the stack for later use.

Handling function arguments was quite tricky, as Bril() functions can have any arbitrary number of arguments, and the Rust handle_call function must be able to pass along these arguments. Because Rust does not support functions with variable numbers of arguments, we decided to pass the Bril arguments in a Rust vector to handle_call. It took considerable effort to figure out how to create a vector from assembly, and pass it as an argument. Unable to find any definitive information on how vectors are implemented, we resorted to reverse-engineering vector uses. We heavily used the Godbolt compiler explorer to quickly see the assembly generated from Rust functions. We made assumptions about how vectors work based on the outputs we saw, and based our implementation of function arguments on those assumptions. Having done this, we were able to construct Rust vectors from assembly and pass them to the handle_call function, which then forwards them to the callee Bril function to be deconstructed.

Implementing returning values from Bril functions was considerably easier, as they can just be placed in the return register (rax), and then forwarded back through handle_call to the caller.

Combining the JIT with the Interpreter

To improve the performance of the JIT, we combined it with the interpreter. We extended the interpreter to perform basic profiling. It maintains a counter for each function, keeping track of how many times that function has run. Then, once that counter reaches a fixed value, the program will then compile the function instead of interpreting it. After that, every time the function is called, the compiled version can be simply run.

On-Stack Replacement

To implement on-stack replacement, we extend the profiling information from the previous section to keep track of the number of times each basic block in a function is executed. If a function is being interpreted and one of these counters reaches a certain fixed value, OSR will be initiated immediately. Code generation will then proceed as before, but with a few OSR-specific additions. The basic structure of a function compiled via OSR is as follows:

osr_start:
    # prologue
    # move variable values to stack
    jmp osr_first_inst

regular_start:
    # prologue
    # ...
osr_first_inst:
    # ...

As such, the assembly has additional code at osr_start which will only execute this one time for completing the on-stack replacement. Future calls to this function will ignore all of that and start from the regular_start. In this new section of the assembly, we move the current values of all of the variables to their appropriate positions in the stack, and then jump to whatever instruction the interpreter was about to execute.

Evaluation

To evaluate Bril-OSR, we aimed to first verify its correctness using the existing brili interpreter as a benchmark, and then its performance on a series of reasonably large-scale Bril tests.

All tests were run on an Intel Core i7-7700HQ CPU @ 2.80GHz with 16GB of RAM, and using Ubuntu on WSL.

Correctness Tests

First, we generated multiple programs that covered the breadth of Bril opcodes from a configurable Python script. We ran the correctness suite on both the interpreter and just-in-time code generation engine, and ensured that the run-time effects matched those of Brili.

Note: Inspired by Alexa and Gregory's foray into Hypothesis, we attempted to write property-based tests for Bril-OSR using Rust's quickcheck crate. Unfortunately, generating structures representing Bril programs was difficult, so we abandoned this project. Still, this would be a cool extension to Bril-OSR's correctness test suite.

Performance Tests (Sensitivity Study)

In order to compare the performance of the various components of Bril-OSR, we composed an ablation study.

The three benchmarks we used to evaluate against are as follows:

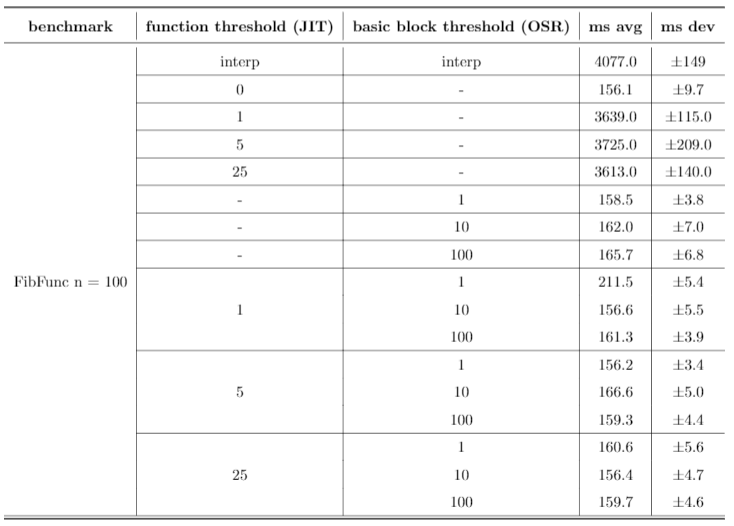

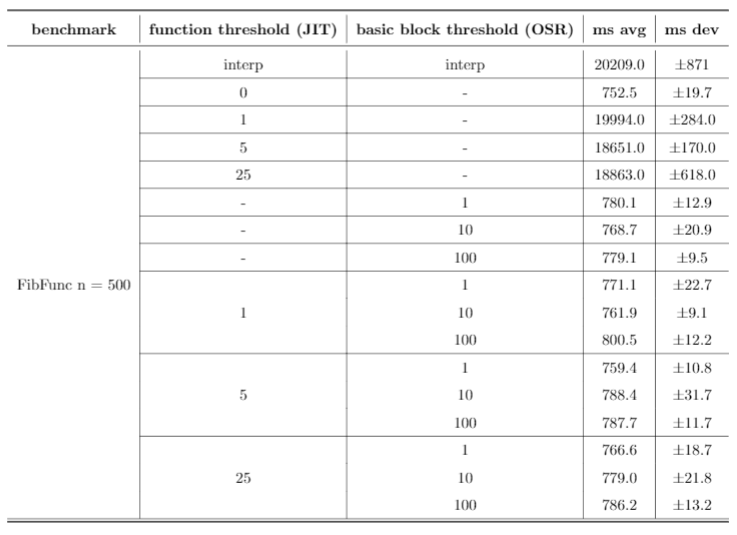

  1. FibFunc with n = 100, n = 500: n functions each iteratively compute a random, long-running Fibonacci sequence, and returns to main.

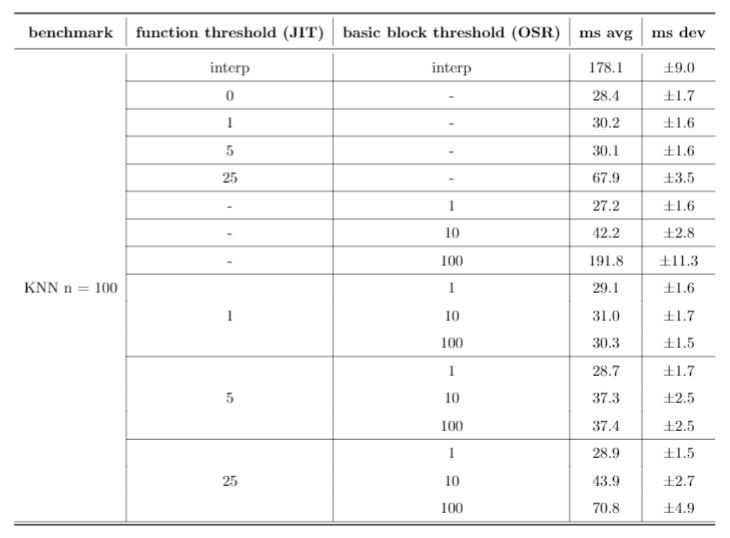

  2. KNN with n = 100, n = 500: implementation of K=1 Nearest Neighbors in Bril, with n training and testing points.

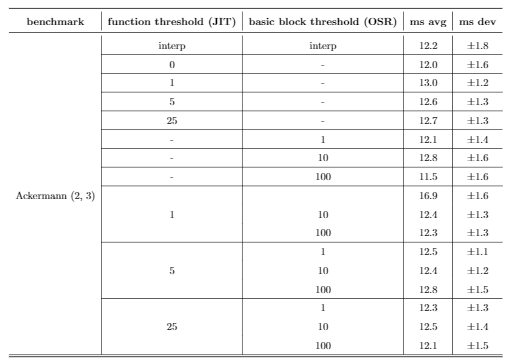

  3. Ackermann with n = 2, m = 3: implementation of the Ackermann function.

Each benchmark was run against each of the following configurations at least 10 times, and the averages/deviations were computed with hyperfine (shoutout to Wil and Daniel Glus for the inspiration).

The first row for each benchmark runs just the Rust interpreter, the second row runs the JIT on every function, and the remaining rows all run different combinations of heuristics for both the function-level JIT and our implementation of OSR. Function threshold is defined as the number of times a function is interpreted before it is compiled, and basic block threshold is defined as the number of times a basic block is interpreted before it is compiled. All times are listed in milliseconds.

Bril-OSR's interpreter is typically at least 10x slower than any of the other configurations, except interestingly with the Ackermann benchmark. This is most likely because it's a smaller benchmark, and the compilation overhead offsets any performance gains from machine code.

Solely using the function-level JIT performed well for both the KNN benchmarks for smaller thresholds. As the threshold increased, however, performance began to tank, and is almost 10x worse for n = 500 when the threshold is 25. In addition, these configurations performed poorly against the FibFunc benchmarks, presumably because they lack many calls to the same function.

Solely using on-stack replacement on a basic block level perfomed well on the FibFunc and Ackermann benchmarks, and actually showed very similar performance to the mixed configurations tested later. However, it performed relatively poorly on the KNN benchmarks, presumably because they lack many loops.

Finally, the mixed configurations tended to work well universally when compared to the others, and based on our benchmarks we lean towards concluding that both function-level JITs and basic-block level OSR are effective for performance gains. However, these results still are not very conclusive. JITing every single function performs the best on every single benchmark, and so we can only really conclude that compiling more often is better. Regardless, these strategies still show promise - given more expansive benchmarks (on the level of SQL or a similarly large project), the benefits of JITs and OSR could become more apparent.

Future Work

Bril-OSR succesfully implements examples of both just-in-time compilation and on-stack replacement, but more importantly, it provides a framework to build upon with more interesting heuristics and utilization.

First, we would love to incorporate more evaluators to the framework. We could add an optimizing compiler and switch between all three evaluators based on more complex heuristics. We can add arbritrary levels of evaluators like this, and do a more in depth ablation study.

On the other hand, it would be awesome to design more interesting heuristics for both OSR and JIT. We currently use simple counts as our heuristics, but there's room to use strategies like run-time profiling to make these heuristics more accurate.
