Domain Type Enforcement

Lecturer: Professor Fred B. Schneider

Lecture notes by Lynette I. Millett

Consider a new kind of matrix. It looks like the access control matrix but, this is only a superficial resemblance. The rows in this matrix correspond to domains and the columns to types. Each entry contains a set of access rights. An entry [s,t] is the maximum permissions that domain s has with respect to an object of type t. In contrast to an access control matrix, this type enforcement matrix does not have commands associated with it. It cannot be manipulated by owners of objects; instead, it is controlled by system administrators (MAC as opposed to DAC).

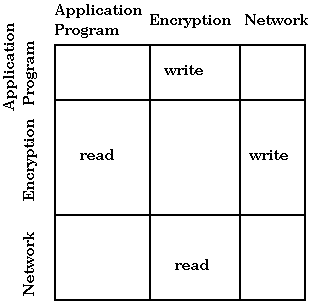

Consider the following example: a program sends data to an encryption routine that then sends encrypted data to the network. We would like an application program to be able to write to the encryption routine. The encryption routine should be able to read from the application program and write encrypted data to the network, and the network should be able to read from the encryption routine. The matrix is as follows:

This matrix provides stronger constraints than simply making the encryption routine a trusted subject. A trusted subject can do what it wants, but here we make the encryption program's access rights more restrictive. Thus, if we still wish to do an analysis of the encryption program (e.g. to make sure any data that it writes is encrypted), we don't know need to worry about it writing anywhere other than to the network, so the scope of the analysis is narrowed (and therefore the analysis is easier.)
