CS 5220

Graph Algorithms

David Bindel

2024-11-21

Logistics

Remaining meetings

  • Nov 26: Async iterations / final outline
  • Dec 3 and 5: Project presentations

Course eval

  • Open Dec 2-12
  • Completion counts toward participation

Final deadline

Midnight on 12/19 (must be after 4:30 PM per university)

Final outline

  • Think “outline of my paper”
  • Should include
    • Basics of what you want to do
    • Evaluation setup (workload, etc)
    • Planned (or finished) performance experiments
    • Possibly a timeline
  • Can represent reconfigured group

Project presentations

  • Logistics
    • Think 3-5 minutes
    • Not everyone needs to talk!
    • Slides via Zoom share
  • Contents
    • What you want to do / have done
    • Evaluation and performance plans
      • Does not have to be finished!

Notes

  • Care most about final report
    • I don’t want to stare at your code!
  • Outline/presentation help me give feedback
  • Emphasis is performance analysis and tuning
    • Think about benchmarks and baselines
    • Think about strong/weak scaling experiments
    • … and check for correctness as well
  • Get something done, fine to speculate on next steps

Lecture

Plan

  • Some background on graphs
  • Applications and building blocks
  • Basic parallel graph algorithms
  • Representations and performance
  • Graphs and LA
  • Frameworks

Graphs

Mathematically: \(G = (V,E)\) where \(E \subset V \times V\)

  • Convention: \(|V| = n\) and \(|E| = m\)
  • May be directed or undirected
  • May have weights \(w_V : V \rightarrow \mathbb{R}\) or \(w_E : E : \rightarrow \mathbb{R}\)
  • May have other node or edge attributes as well
  • Path is \(\left[ \, (u_i,u_{i+1}) \, \right]_{i=1}^\ell \in E^*\), sum of weights is length
  • Diameter is \(\max_{s, t \in V} d(s, t)\)

Generalizations

  • Hypergraph (edges in \(V^d\))
  • Multigraph (multiple copies of edges)

Types of graphs

Types of graphs

Types of graphs

Types of graphs

Types of graphs

Types of graphs

Types of graphs

Many possible structures:

  • Lines and trees
  • Completely regular grids
  • Planar graphs (no edges need cross)
  • Low-dimensional Euclidean
  • Power law graphs
  • ...

Algorithms are not one-size-fits-all!

Ends of a spectrum

Planar Power law
Vertex degree Uniformly small \(P(\mathrm{deg} = k) \sim k^{-\gamma}\)
Radius \(\Omega(\sqrt{n})\) Small
Edge sep \(O(\sqrt{n})\) nothing small
Linear solve Direct OK Iterative
Apps PDEs Social networks

Calls for different methods!

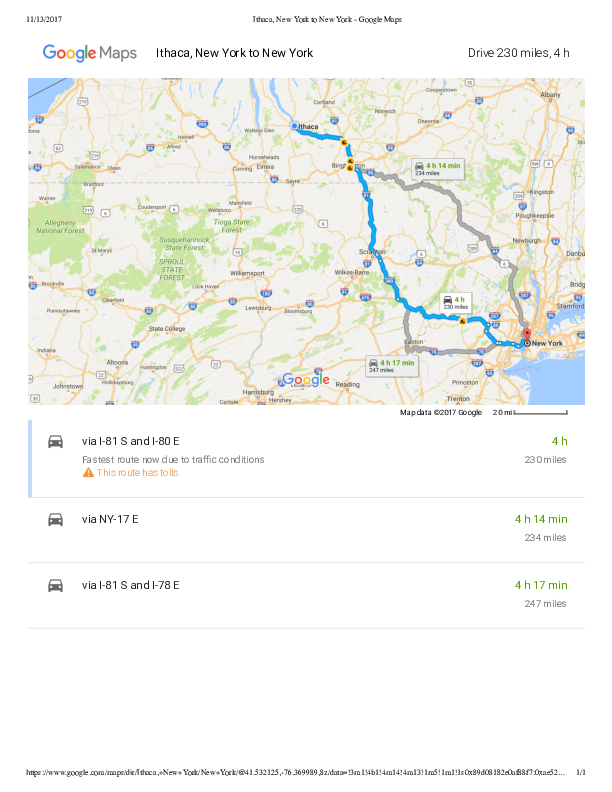

Applications: Routing and shortest paths


Applications: Traversal, ranking, clustering

  • Web crawl / traversal
  • PageRank, HITS
  • Clustering similar documents

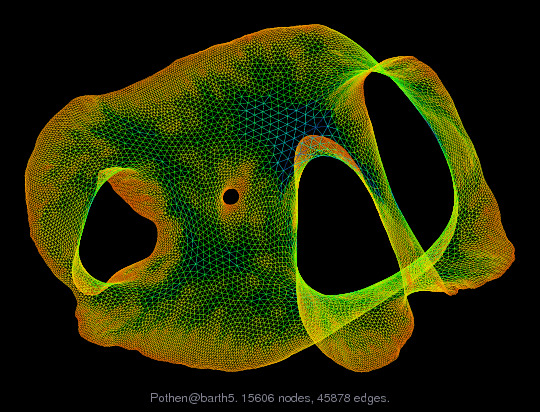

Applications: Sparse solvers


  • Ordering for sparse factorization
  • Partitioning
  • Coarsening for AMG

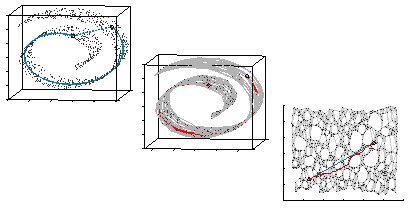

Applications: Dimensionality reduction



Common building blocks

  • Traversals
  • Shortest paths
  • Spanning tree
  • Flow computations
  • Topological sort
  • Coloring
  • ...

... and most of sparse linear algebra.

Over-simple models

Let \(t_p =\) idealized time on \(p\) processors

  • \(t_1 =\) work
  • \(t_\infty =\) span (or depth, or critical path length)

Don’t bother with parallel DFS! Span is \(\Omega(n)\).
Let’s spend a few minutes on more productive algorithms...

Serial BFS

  • Push seed node onto queue and mark
  • While Q nonempty
    • Pop node from queue
    • Visit node
    • Push unmarked neighbors on queue
    • Mark all neighbors

Parallel BFS

Simple idea: parallelize across frontiers

  • Pro: Simple to think about
  • Pro: Lots of parallelism with small radius?
  • Con: What if frontiers are small?

Parallel BFS: Ullman-Yannakakis

Assuming a high-diameter graph:

  • Form set \(S\) with start + random nodes, \(|S| = \Theta(\sqrt{n} \log n)\)
    • long shortest paths go through \(S\) w.h.p.
  • Take \(\sqrt{n}\) steps of BFS from each seed in \(S\)
  • Form aux graph for distances between seeds
  • Run all-pairs shortest path on aux graph

OK, but what if diameter is not large?

Serial BFS: Bottom-up

  • Set \(d[v] = \infty\) for all vertices
  • Set \(d[s] = 0\) for seed \(s\)
  • Until \(d\) stops changing
    • For each \(u \in V\)
      • \(d[u] = \min(d[u], \min_{w \in N(u)} d[w]+1)\)

Parallel BFS

Key ideas:

  • At some point, switch from top-down expanding frontier (“are you my child?”) to bottom-up checking for parents (“are you my parent?”)
  • Use 2D blocking of adjacency

Single-source shortest path

Classic algorithm: Dijkstra

  • Dequeue closest point to frontier, expand frontier
  • Update priority queue of distances (in parallel)
  • Repeat

Or run serial Dijkstra from different sources for APSP.

Alternate idea: label correcting

Initialize \(d[u]\) with distance over-estimates to source

  • \(d[s] = 0\)
  • Repeatedly relax \(d[u] := \min_{(v,u) \in E} d[v] + w(v,u)\)

Converges (eventually) as long as all nodes visited repeatedly, updates are atomic. If serial sweep in a consistent order, call it Bellman-Ford.

Single-source shortest path: \(\Delta\)-stepping

Alternate approach: hybrid algorithm

  • Process a “bucket” at a time
  • Relax “light” edges (wt < \(\Delta\)), might add to bucket
  • When bucket empties, relax “heavy” edges a la Dijkstra

Maximal independent sets (MIS)

  • \(S \subset V\) independent if none are neighbors.
  • Maximal if no others can be added and remain independent.
  • Maximum if no other MIS is bigger.
  • Maximum is NP-hard; maximal is easy (serial)

Simple greedy MIS

  • Start with \(S\) empty
  • For each \(v \in V\) sequentially, add \(v\) to \(S\) if possible.

Luby’s algorithm

  • Init \(S := \emptyset\)
  • Init candidates \(C := V\)
  • While \(C \neq \emptyset\)
    • Label each \(v\) with a random \(r(v)\)
    • For each \(v \in C\) in parallel, if \(r(v) < \min_{\mathcal{N}(v)} r(u)\)
      • Move \(v\) from \(C\) to \(S\)
      • Remove neighbors from \(v\) to \(C\)

Very probably finishes in \(O(\log n)\) rounds.

Luby’s algorithm (round 1)

Luby’s algorithm (round 2)

A fundamental problem

Many graph ops are

  • Computationally cheap (per node or edge)
  • Bad for locality

Memory bandwidth as a limiting factor.

Big data?

Consider:

  • 323 million in US (fits in 32-bit int)
  • About 350 Facebook friends each
  • Compressed sparse row: about 450 GB

Topology (no metadata) on one big cloud node...

Graph rep: Adj matrix

Pro: efficient for dense graphs
Con: wasteful for sparse case...

Graph rep: Coordinate

  • Tuples: \((i,j,w_{ij})\)
  • Pro: Easy to update
  • Con: Slow for multiply

Graph rep: Adj list

  • Linked lists of adjacent nodes
  • Pro: Still easy to update
  • Con: May cost more to store than coord?

Graph rep: CSR

Pro: traversal? Con: updates

Graph rep: implicit

  • Idea: Never materialize a graph data structure
  • Key: Provide traversal primitives
  • Pro: Explicit rep’n sometimes overkill for one-off graphs?
  • Con: Hard to use canned software (except NLA?)

Graph algorithms and LA

  • Really is standard LA
    • Spectral partitioning and clustering
    • PageRank and some other centralities
    • “Laplacian Paradigm” (Spielman, Teng, others...)
  • Looks like LA
    • Floyd-Warshall
    • Breadth-first search?

Graph algorithms and LA

Semirings have \(\oplus\) and \(\otimes\) s.t.

  • Addition is commutative+associative with a 0
  • Multiplication is associative with identity 1
  • Both are distributive
  • \(a \otimes 0 = 0 \otimes a = 0\)
  • But no subtraction or division

Technically modules over semirings

Graph algorithms and LA

Example: min-plus

  • \(\oplus = \min\) and additive identity \(0 \equiv \infty\)
  • \(\otimes = +\) and multiplicative identity \(1 \equiv 0\)
  • Useful for shortest distance: \(d = A \otimes d\)

Graph BLAS

http://www.graphblas.org/

  • Version 2.1.0 (final) as of Dec 2023
  • (Opaque) internal sparse matrix data structure
  • Allows operations over misc semirings

Graph frameworks

Several to choose from!

  • Pregel, Apache Giraph, Stanford GPS, ...
  • GraphLab family
    • GraphLab: Original distributed memory
    • PowerGraph: For “natural” (power law) networks
    • GraphChi: Chihuahua – shared mem vs distributed
  • Outperformed by Galois, Ligra, BlockGRACE, others
  • But... programming model was easy
  • GraphIt - best of both worlds?

Graph frameworks

  • “Think as a vertex”
    • Each vertex updates locally
    • Exchanges messages with neighbors
    • Runtime actually schedules updates/messages
  • Message sent at super-step \(S\) arrives at \(S+1\)
  • Looks like BSP

At what COST?

“Scalability! But at what COST?”
McSherry, Isard, Murray, HotOS 15

You can have a second computer once you’ve shown you know how to use the first one.
– Paul Barham (quoted in intro)

  • Configuration that Outperforms a Single Thread
  • Observation: many systems have unbounded COST!
