CS 5220

Shared memory

David Bindel

2024-10-03

OpenMP

OpenMP

  • Standard API for multi-threaded code
    • Only a spec — multiple implementations
    • Lightweight syntax
    • C or Fortran (with appropriate compiler support)
  • High level:
    • Preprocessor/compiler directives (80%)
    • Library calls (19%)
    • Environment variables (1%)

OpenMP

Basic syntax: #omp construct [ clause … ]

  • Usually affects structured block (one way in/out)
  • OK to have exit() in such a block

Last time

  • Creating parallel regions
  • Sharing annotations
  • Synchronization
  • Parallel for

Parallel for

void accumulate_a2a(std::vector<double>& f, const std::vector<double>& x)
{
    int n = f.size();

    #pragma omp parallel for
    for (int i = 0; i < n; ++i) {
        double fi = 0.0;
        double xi = x[i];
        for (int j = 0; j < n; ++j) {
            double dij = xi-x[j];
            if (dij != 0.0)
                fi += 1.0/(dij*dij);
        }
        f[i] = fi;
    }
}

Aside: tiling transformation on this code?

What about symmetry?

void accumulate_a2a(std::vector<double>& f, const std::vector<double>& x)
{
    int n = f.size();

    for (int i = 0; i < n; ++i) {
        double xi = x[i];
        for (int j = i+1; j < n; ++j) {
            double dij = xi-x[j];
            f[i] += 1.0/(dij*dij);
            f[j] += 1.0/(dij*dij);
        }
    }
}

Why would omp parallel for fail here?

Other parallel work divisions

  • sections: like cobegin/coend
  • single: do only in one thread (e.g. I/O)
  • master: do only in master thread; others skip

Sections

#pragma omp parallel
{
    #pragma omp sections nowait
    {
        #pragma omp section
        do_something();

        #pragma omp section
        and_something_else();

        #pragma omp section
        and_this_too();
        // No implicit barrier here
    }
    // Implicit barrier here
}

sections nowait to kill barrier.

Task-based parallelism

  • Work-sharing so far is rather limited
    • Work cannot be produced/consumed dynamically
    • Fine for data parallel array processing...
    • ... but what about tree walks and such?
  • Alternate approach (OpenMP 3.0+): Tasks

Tasks

Task involves:

  • Task construct: task directive plus structured block
  • Task: Task construct + data

Tasks are handled by run time, complete at barriers or taskwait.

Example: List traversal

#pragma omp parallel
{
    #pragma omp single nowait
    {
        for (link_t* link = head; link; link = link->next)
            #pragma omp task firstprivate(link)
            process(link);
    }
    // Implicit barrier
}

One thread generates tasks, others execute them.

Example: Tree traversal

int tree_max(node_t* n)
{
    int lmax, rmax;
    if (n->is_leaf)
        return n->value;

    #pragma omp task shared(lmax)
        lmax = tree_max(n->l);
    #pragma omp task shared(rmax)
        rmax = tree_max(n->l);
    #pragma omp taskwait

    return max(lmax, rmax);
}

The taskwait waits for all child tasks.

Example: Quicksort

void omp_qsort(int* a, int lo, int hi)
{
    if (lo >= hi) return;
    int p = partition(a, lo, hi);
    #pragma omp task shared(a)
    omp_qsort(a, lo, p);
    #pragma omp task shared(a)
    omp_qsort(a, p, hi);
}

void call_qsort(int* a, int lo, int hi)
{
    #pragma omp parallel
    {
        #pragma omp single
        omp_qsort(a, lo, hi);
        #pragma omp taskwait
    }
}

Task dependencies

What happens if one task produces what another needs?

#pragma omp task depend(out:x)
x = foo();
#pragma omp task depend(in:x)
y = bar(x);

Topics not addressed

  • Low-level synchronization (locks, flush)
  • OpenMP 4.x constructs for accelerator interaction
  • A variety of more specialized clauses

See http://www.openmp.org/

SPH

Your next project!

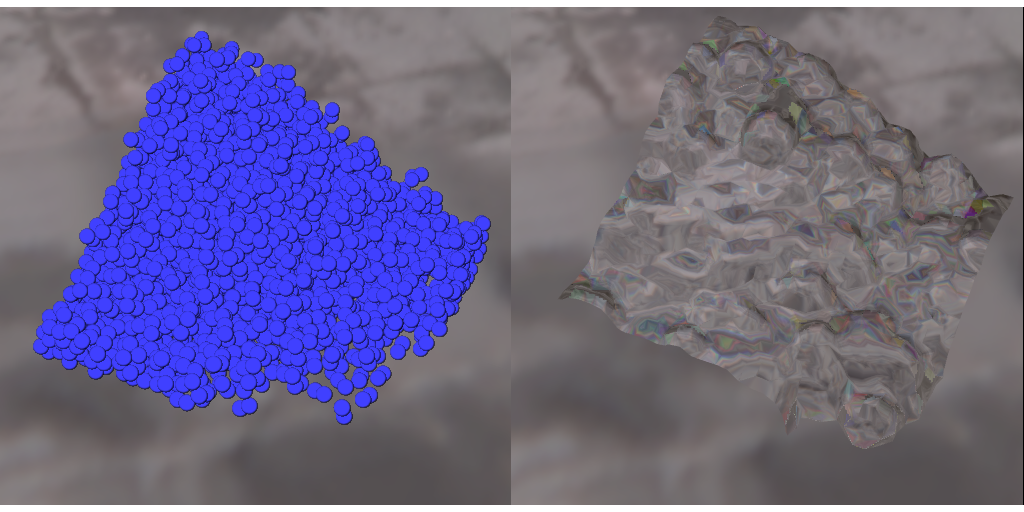

Smoothed Particle Hydrodynamics

  • Particle-based method for fluid simulation
    • Representative of other particle-based methods
    • More visually interesting than MD with Lennard-Jones?
  • Particle \(i\) (a fluid blob) evolves as \[ m \mathbf{a}_i = \sum_{|\mathbf{x}_j-\mathbf{x}_i| \leq h} \mathbf{f}_{ij} \] where force law satisfies \(\mathbf{f}_{ij} = -\mathbf{f}_{ji}\).
  • Chief performance challenge: fast force evaluation!

Task 1: Binning / spatial hashing

  • Partition space into bins of size \(\geq h\) (interaction radius)
  • Only check interactions in nearby bins
  • Tradeoff between bin size, number of interaction checks

Task 1: Binning / spatial hashing

Task 1: Binning / spatial hashing

  • Keep particles in an array as usual
  • Also keep array of head pointers for bins
  • Thread linked list structures for bin contents

Task 1: Binning / spatial hashing

struct particle_t {
    float rho;        // Density
    float x[3];       // Position
    float v[3];       // Velocity (full step)
    float vh[3];      // Velocity (half step)
    float a[3];       // Accelerations
    particle_t* next; // Link for hashing
};

struct sim_state_t {
    float mass;                     // Particle mass
    std::vector<particle_t> part;   // Particles
    std::vector<particle_t*> hash;  // Hash table
};

Task 1: Binning / spatial hashing

  • Typical situation: lots of empty bins
  • Empty boxes take space!
  • Alternative: spatial hashing
    • Map multiple bins to one storage location
    • Avoid collisions (several bins map to same place)
  • Idea: figure out potential neighbors good for a few steps?

Ordering

  • Bins naturally identified with two or three indices
  • Want to map to a single index
    • To serve as a hash key
    • For ordering computations

Ordering

  • Row/column major: mediocre locality
  • Better: Z-Morton ordering
    • Interleave bits of \((x,y,z)\) indices
    • Efficient construction a little fidly
    • Basic picture is simple!

Z Morton ordering

Equivalent to height-balanced quadtree/octtree

Task 2: Profiling

Computation involves several different steps:

  • Finding nearest neighbors
  • Computing local densities
  • Computing local pressure / viscous forces
  • Time stepping
  • I/O

How much does each cost? Scaling?

Profiling

  • Want to act based on timing data
    • Manual instrumentation?
    • Profilers?
  • Fix what takes most time first
  • Consider both algorithm improvements and tuning

Task 3: Parallelization

How do we decompose the problem?

  • Processors own regions of space?
  • Processors own fixed set of particles?
  • Processors own sets of force interactions?
  • Hybrid recommended!

Task 3: Parallelization

How do we synchronize force computation?

  • Compute \(\mathbf{f}_{ij}\) and \(\mathbf{f}_{ji}\) simultaneously in reference code
  • Could keep multiple updates per processor and reduce?
  • Use multi-color techniques?
  • Interacts with problem decomposition!

Example: Multi-color ordering

No blue cell neighbors another blue.

Things to think about

  • How do we make sure we don’t break the code?
  • How fast is the parallel code for \(p=1\)?
  • Are there load balance issues?
  • Do we synchronize often?
  • Do we get good strong scaling? weak scaling?

Task 4: Play

  • How fast can we make the serial code?
  • How should we improve initialization?
  • Could we time step smarter?
  • What about surface tension?
  • What about better BCs?
  • Swishing, pouring, etc?
  • Improvements for incompressible flow?
