CS 5220

Parallelism and Locality in Simulations

David Bindel

2024-09-17

Intro

Parallelism and Locality

The world exhibits parallelism and locality

• Particles, people, etc function independently
• Near-field interactions stronger than far-field
• Can often simplify dependence on distant things

Parallelism and Locality

Get more parallelism / locality through model

• Limited dependency between adjacent time steps
• Can neglet or approximate far-field effects

Parallelism and Locality

Often get parallelism at multiple levels

• Hierarchical circuit simulation
• Interacting models for climate
• Parallelizing individual experiments in MC or optimization

Styles of Simulation

• Discrete event systems (continuous or discrete time)
• Particle systems
• Lumped parameter models (ODEs)
• Distributed parameter models (PDEs / IEs)

Often more than one type of simulation is approprate.
(Sometimes more than one at a time!)

Discrete Event Systems

Discrete Event Systems

May be discrete or continuous time.

• Game of life
• Logic-level circuit simulation
• Network simulation

Discrete Events

• Finite set of variables, transition function updates
• Synchronous case: finite state machine
• Asynchronous case: event-driven simulation
• Synchronous (?) example: Game of Life
• Nice starting point – no discretization concerns!

Game of Life

Game of life (John Conway):

Game of Life

Game of life (John Conway):

• Live cell dies with < 2 live neighbors
• Live cell dies with > 3 live neighbors
• Live cell lives with 2-3 live neighbors
• Dead cell becomes live with exactly 3 live neighbors

Game of Life

What to do if I really cared?

• Tile the problem for memory
• Try for high operational intensity
• Use instruction-level parallelism
• Don’t output board too often!

Before doing anything with OpenMP/MPI!

Game of Life

East to parallelize by domain decomposition

• Update work involves volume of subdomains
• Communication per step on surface (cyan)

Also works with tiling.

Game of Life

Sketch of a kernel for tiled implementation:

• Bitwise representation of cells (careful with endian-ness)
• A “tile” is a 64-by-64 piece (64 uint64_t)
  • Keep two tiles (ref and tmp)
• Think of inner 48-by-48 as “live”
• Buffer of size 8 on all sides
• Compute saturating 3-bit neighbor counters
• Batches of eight steps (four ref to tmp, four back)

Game of Life

Some areas are more eventful than others!

Game of Life

What if pattern is dilute?

• Few or no live cells at surface at each step
• Think of live cell at a surface as an “event”
• Only communicate events!
  • This is asynchronous
  • Harder with message passing – when to receive?

Asynchronous Life

How do we manage events?

• Speculative – assume no communication across boundary for many steps, back up if needed
• Conservative – wait when communication possible
  • Possible \(\neq\) guaranteed!
  • Deadlock: everyone waits for a send
  • Can get around this with NULL messages

Asynchronous Life

How do we manage load balance?

• No need to simulate quiescent parts of the game!
• Maybe dynamically assign smaller blocks to processors?

HashLife

• There are also other algorithms!

Beyond Life

• Forest fire model
• ns-3 network simulator
• Digital hardware

Particle Systems

• Billiards, electrons, galaxies, …
• Ants, cars, agents, …?

Particle Simulation

Particles move via Newton (\(F = ma\)) with

• External forces: ambient gravity, currents, etc
• Local forces: collisions, Van der Waals (\(r^{-6}\)), etc
• Far-field forces: gravity and electrostatics (\(r^{-2}\)), etc
  • Simple approximations often apply (Saint-Venant)

Forced Example

\[\begin{aligned} f_i &= \sum_j G m_i m_j \frac{(x_j-x_i)}{r_{ij}^3} \left( 1-\left( \frac{a}{r_{ij}} \right)^4 \right), \\ r_{ij} &= \|x_i-x_j\| \end{aligned}\]

• Long-range attractive force (\(r^{-2}\))
• Short-range repulsive force (\(r^{-6}\))
• Go from attraction to repulsion at radius \(a\)

Simple Serial Simulation

Using Boost.Numeric.Odeint, we can write

integrate(particle_system, x0, tinit, tfinal, h0,
          [](const auto& x, double t) {
              std::cout << "t=" << t << ": x=" << x << std::endl;
          });

where

• particle_system defines the ODE system
• x0 is the initial condition
• tinit and tfinal are start and end times
• h0 is the initial step size

and the final lambda is an observer function.

Beyond Serial Simulation

Can parallelize in

• Time (tricky): Parareal methods, asynchronous methods
• Space: Our focus!

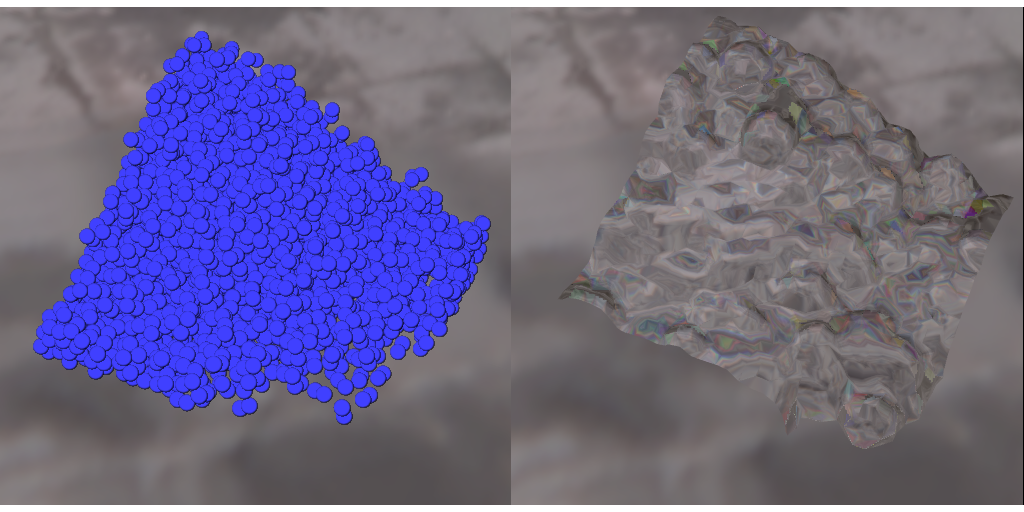

Plotting Particles

Smooth Particle Hydrodynamics (SPH) – Project 2

Pondering Particles

• Where do particles “live” (distributed mem)?
  • Decompose in space? By particle number?
  • What about clumping?
• How are long-range force computations organized?
• How are short-range force computations organized?
• How is force computation load balanced?
• What are the boundary conditions?
• How are potential singularities handled?
• Choice of integrator? Step control?

External Forces

Simplest case: no particle interactions.

• Pleasingly parallel (like Monte Carlo!)
• Could just split particles evenly across processors
• Is it that easy?
  • Maybe some trajectories need short time steps?
  • Even with MC, load balance may not be trivial!

Local Forces

• Simplest all-pairs check is \(O(n^2)\) (expensive)
• Or only check close pairs (via binning, quadtrees?)
• Communication required for pairs checked
• Usual model: domain decomposition

Local Forces: Communication

Minimize communication:

• Send particles that might affect a neighbor “soon”
• Trade extra computation against communication
• Want low surface area-to-volume ratios on domains

Local Forces: Load Balance

• Are particles evenly distributed?
• Do particles remain evenly distributed?
• Can divide space unevenly (e.g. quadtree/octtree)

Far-Field Forces

• Every particle affects every other particle
• All-to-all communication required
  • Overlap communication with computation
  • Poor memory scaling if everyone keeps everything!
• Idea: pass particles in a round-robin manner

Passing Particles (Far-Field Forces)

copy particles to current buf
for phase = 1 to p
  send current buf to rank+1 (mod p)
  recv next buf from rank-1 (mod p)
  interact local particles with current buf
  swap current buf with next buf
end

Passing Particles (Far-Field Forces)

Suppose \(n = N/p\) particles in buffer. At each phase \[\begin{aligned} t_{\mathrm{comm}} & \approx \alpha + \beta n \\ t_{\mathrm{comp}} & \approx \gamma n^2 \end{aligned}\]

So mask communication with computation if \[ n \geq \frac{1}{2\gamma} \left( \beta + \sqrt{\beta^2 + 4 \alpha \gamma} \right). \]

Passing Particles (Far-Field Forces)

More efficient serial code
\(\implies\) larger \(n\) needed to mask commujnication!
\(\implies\) worse speed-up as \(p\) gets larger (fixed \(N\))
but scaled speed-up (\(n\) fixed) remains unchanged.

Far-Field Forces: Particle-Mesh

Consider \(r^{-2}\) electrostatic potential interaction

• Enough charges look like a continuum!
• Poisson maps charge distribution to potential
• Fast Poisson for regular grids (FFT, multigrid)
• Approx depends on mesh and particle density
• Can clean up leading part of approximation error

Far-Field Forces: Particle-Mesh

• Map particles to mesh points (multiple strategies)
• Solve potential PDE on mesh
• Interpolate potential to particles
• Add correction term – acts like local force

Far-Field Forces: Tree Methods

• Distance simplifies things
  • Andromeda looks like a point mass from here?
• Build tree, approx descendants at each node
• Variants: Barnes-Hut, FMM, Anderson’s method
• More on this later in the semester

Summary of Particle Example

• Model: Continuous motion of particles
  • Could be electrons, cars, whatever
• Step through discretized time

Summary of Particle Example

• Local interactions
  • Relatively cheap
  • Load balance a pain
• All-pairs interactions
  • Obvious algorithm is expensive (\(O(n^2)\))
  • Particle-mesh and tree-based algorithms help

An important special case of lumped/ODE models.
