The big picture

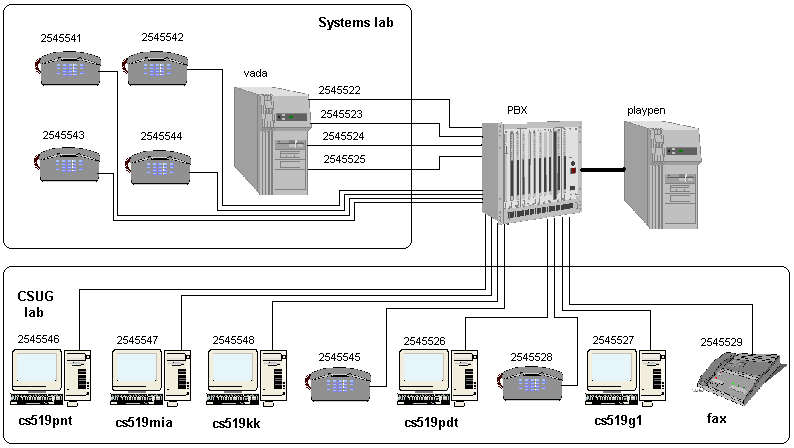

This picture describes the actual positions of the components used in the project and the connections between them . Ethernet connections were not shown to avoid cluttering the image. Note that while the phone numbers in the picture have 7 digits, when you make calls from those devices you have to use 5 digit numbers.All computers shown are on the internet, outside of the firewall. In addition, the PBX is connected to the campus PBX.
