The Directory Server is the heart and soul of Directory Services. It maintains a Microsoft Access database which tracks users, their locations, and the services available at each of their locations. The first step in a user using our system is for him to register through White Pages. This places an entry in our XReference table, which allows the user to have phone and IP address information stored for him.

At the time of registration with White Pages, a new user may choose to add a phone number. However, he is free to do so at any point afterwards, and can also delete a phone number and add services for a phone number as needed. An IP address is added a bit differently. Although originally we had planned on supporting a profile system, where a user could prioritize certain addresses, specify his location by time of day, after discussion with other groups, this didn’t really seem necessary for our system. The reason for this is that in order for a user to connect to a remote user via an IP address, an application that would handle the incoming connection request would need to be running on the remote. But if this application is running, that means that the user must have logged onto the system from that remote application. Thus, we could have the application notify Directory Services of the user coming on-line at that address. We could also have the application notify us when it was closing down, so we could remove that address from our database (in the case of a crash, management notifies us). This allows us to have a directory that is relatively clean, in that it contains addresses of where the user can actually be reached. Furthermore, it simplifies the problem of mobile users, since all users in our system can be considered to be mobile.

The Directory Server uses the Signaling team’s Message Center to listen to messages it is interested based on the type of message that has been received. These messages indicate the user, address, and services of interest, and it is the Directory Server that generates and executes the SQL code to provide the database update or query. The Directory Server is also responsible for enforcing referential integrity within the database. It does so according to the following rules:

The Directory Client provides other components of the system with an interface to use to access our database. Signaling creates an instance of the client for any application that needs to access our service. This is how we provide interfaces to everyone, as they can call public functions of the client. The client handles the sending and receiving of messages to the Directory Server and Initialization Server necessary to satisfy the function requests.

Upon startup, the Directory Client listens for an initialization packet message to be sent to it from the Initialization Server. This initialization packet tells it where the Directory Server is located. Once it has received this packet, it is able to carry out all database requests. The Directory Client is also responsible for detecting and reporting Directory Server failures. When a client detects a failure, this is reported to the Initialization Server, which then handles the failure. Please refer to "Replication & Robustness to Failure" for the details of this process.

The Initialization Server runs on the Signaling Server, and is primarily responsible for notifying Directory Clients of where to find the PRIMARY Directory Server. It also handles fail-overs in the case of a Directory Server failure. In order to give credit where it’s due, the Initialization Server was the brainchild of our Signaling team. They suggested it since it would allow for movement of the Directory Server, and would rely on less hard-coded or static initialization files (we pass in the location of the Signaling Server as command-line parameters).

When the Initialization Server starts, it waits for Directory Servers to start and notify it of their successful execution. Once it has received notification from two servers, it will designate one as PRIMARY and the other as BACKUP. At this point it will begin handling HelloMessages from clients. Note that it will not respond to HelloMessages unless at least two servers are running. This was done to try to maximize robustness from the start of execution. The fail-over handling of the Initialization Server is discussed below, under "Replication & Robustness to Failure".

As was discussed, the Initialization Server waits for both a PRIMARY and a BACKUP server to be established before it allows clients to connect to the database. This is done to facilitate replication and robustness to failure. When the Initialization Server designates one server as a PRIMARY, all directory requests are directed to this server. However, in order to facilitate replication, the PRIMARY server passes on those messages that alter the database to the BACKUP server. The BACKUP server, upon receiving the message, executes the instructions just as if they had been received from a client. In this way, we know that any action that affects one database also affects the other.

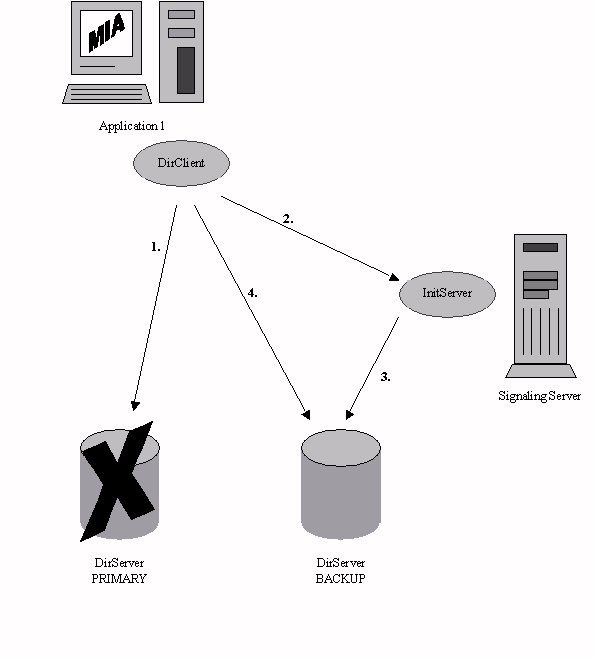

Directory Services is highly available, since we can provide continuous service in the event of a single failure, although we cannot recover from a double failure. There are two types of single failures that could occur. The first is a PRIMARY server failure, which will be detected by the Directory Client (as a failure to connect). The second is a BACKUP server failure, which will be detected by the PRIMARY server address. In the event of a PRIMARY server failure, the Directory Client informs the Initialization Server of the failure, and requests a new PRIMARY server address. The Initialization Server notifies the BACKUP that it will now be acting as PRIMARY, and upon acknowledgment of this message, gives the Directory Client the address of the new PRIMARY. Please refer to Figure 2 for a visual clarification of this process. When another Directory Client reports a failure, the Initialization Server checks to see which server address is reported as failed, and will only perform a fail-over if the reported address is the same as the current PRIMARY address. This prevents several Directory Client messages reporting the same failure from being regarded as reports of several different failures. Management is notified of a PRIMARY server failure, so steps can be taken to correct this.

Note that new PRIMARY does not pass on replication messages. This is primarily because there is no new BACKUP to pass them on to. We contemplated the idea of providing several levels of fail-over, but this would have complicated replication issues, and is an idea that does not seem to be practiced in industry, at least from our experience. However, we did design our architecture so that multiple backup servers is a possibility, and implementation would require addition of new functionality but no changes to our design. In our system, to return to a dual server system, we would need to manually re-synch data. This is again due to time constraints. To make this process more automated, we were planning on creating a replication log on the new PRIMARY that would track all changes that would need to be made to the failed server. Once the server was restarted, a re-synch message would be sent to the PRIMARY server by the Initialization Server, who would pass the replication log to the restarted server. The restarted server would process the log, and once re-synched would become the new BACKUP server.

As was mentioned, a BACKUP server can fail. This is detected by the PRIMARY server when a replication message is not acknowledged by the BACKUP. When this occurs, the Initialization Server is notified that there is now no BACKUP to fail-over to. Management is also notified, so that appropriate steps can be take to remedy the situation.

All messages passed between different components of the Directory Services system are authenticated. This is done by the use of hashing (MD5) and a password shared amongst all components. An intra-Directory Service message is wrapped in a special message called a HashMessage. The HashMessage contains the original message, the destination, and the hash of the password concatenated with the serialization (byte representation) of the original message. This message is then sent out to the destination component. Upon receipt of the HashMessage, the component first checks to see if the HashMessage is valid. It does this by computing its own hash value, using its local copy of the password and the message contained in the HashMessage. It compares this hash value to the one contained in the message. If they match, then the message is valid (the probability of generating the same hash value without the same password or message is approximately 1 in 3.4 x 10³⁸). Management is notified of all messages that have bad hashes, to provide a means of audit, and possibly apprehension of a threat.

This scheme is immune to a middle-man attack, since intercepting the HashMessage and altering the message it contains would drastically change the hash value, invalidating the message. This scheme is immune to a denial-of-service attack, since without the correct password (which is never sent out in the clear or any other usable form) a threat could never create the correct hash value. Finally, the scheme is also immune to spoofing, since when relying on a valid hash rather than a source address for authentication.

Note that this scheme provides authentication, but does not provide confidentiality of messages. This is due to a combination of factors. First we weren’t sure that the information being passed was intended to be confidential. Second, hashing is a fast process, whereas encryption and decryption is not, and would add significantly to the overhead of the system. Finally, time was a factor, since if we had more time for the project we would probably have added this feature just so it was available. We have implemented security and robustness. And finally, we have also provided for mobile users to use our system (although truthfully, this was almost a side-effect of our design).

This scheme does have a weakness in that we trust any application that has access to our Directory Client. But assuming that our server is secure, threats should not have access to our Java classes, and the greatest threat of security is through transmitted messages. Finally, we originally wanted to implement a policy of least privilege (which would require applications using our client to authenticate themselves) so that applications would be able to do only what they needed, and no more. But again, time was a limiting factor in the implementation of this.

Working with the MessageCenter taught us a new way of communicating between computers and applications in a network. We found using it was fairly easy and straightforward, and once mastered made our program easier to write. For the first time we had to write network communication code without the direct use of sockets. It was also how we learned how we would integrate ourselves with the other aspects of the MIA network.

Working on the database for the server exposed us to Java SQL for the first time. This forced us to learn a lot of the Java SQL functionality.

Microsoft Access replication proved to be too slow for our needs, and as a result we had to write our own replication code. This was an invaluable learning experience because it forced us to deal with many of the issues encountered during replication. Although we implemented only one back up server, we found the replication code to be much more complicated than we initially imagined. We had to focus on such issues of how to detect a crash, how to notify clients of a new server, and how to best mirror the database work on the primary server on to the backup server. We had to figure out how to write the server code so the same code could work for both the primary and backup servers. As we wrote the replication code, we discovered more and more hidden issues about replication we did not initially foresee. Although our final code did not handle everything we thought about, we understood better all the difficulties in creating a complete replication service.

For one of us this was the first time actually implementing security in network communication. This was very cool in seeing an approach to security that was actually fully integrated and successfully working. Although uses of security had been discussed in classes such as 414, it was the first time the one member wrote actual code dealing with security. As with replication, it made us think about the many questions a programmer must deal with when trying to incorporate security. We had to deal with issues such as effective uses of passwords, serialization and in general how to handle how security can complement your code. Again similar to replication, we were not able to code all the aspects of security we would have liked, but it did give us a chance to think about more security we could have implemented had we more time (for example, not just tamper-proof messages but confidential ones as well). Writing the code also required us to learn and use security function provided by Java.

Programming exclusively in Java (for one of us the first time), helped teach us advanced functionality of the language.

This included Java’s use of polymorphism. We successfully used abstract classes to allow multiple implementations of our Directory Client. Through a client factory, we found an easy way to allow other users to create an instance of our client. We also used extension of classes to provide a hierarchical group of Directory Exceptions so users only had to catch one particular type of exception. The messages we created for our use also had to function as extensions of the general message class, including implementing its abstract classes.

We also gained experience with Java’s exception handling. We were able to use exceptions very effectively to help logically structure our code. We were also forced to learn how to deal with other users’ exceptions.

This project was also our first attempt at writing client and server code in Java. Through the demands of the project, we know have important experience writing fairly advanced client and server code in the Java environment. We learned hoe to effectively communicate between clients and servers so as to run efficiently and run replication smoothly. This coordination was one of the more difficult coding to get completely working.

Most importantly perhaps was the experience gained working with other programmers, both in using their code and writing ours so it could successfully integrate. It taught us how to write code so it could easily be understand and implemented by the other teams in our group.

The project taught us coordination skills in creating general team strategies and writing protocols we could all agree on. It also taught us how to work with other people who have extremely busy schedules like we do. While this caused many of the problems we had during the project, by the end we learned how to better manage our time with them.

To successfully finish a project of this magnitude that involved a team of more than 20 people is an incredible accomplishment and a personal achievement for all of us. It has been an invaluable experience especially in preparing for entering the "real world," where we will be expected to work on a good deal of team projects. It has already helped us during the interview process, as companies have been very interested in this project and how we worked in a team.
