CS 513 System Security -- Notes on Naming

Notes on Naming

Lecturer: Professor Fred B. Schneider

Lecture notes by Lynette I. Millett

In this lecture, we introduce naming, a topic that has rarely been examined in isolation. As a result, people tend to make common mistakes with naming when building systems.

Definition

A name is a form of abstraction that allows us to designate without details. Naming an object permits us to refer to that object without having to worry about the underlying details.

Naming is not absolutely necessary; we could live in a world without naming by using descriptions to refer to objects, but these descriptions can take time and space. For example, to fully describe the password file in a Unix system, we would need to list every user and password in the file! In this case, a file name provides a much more useful and terse way to refer to the file.

Properties

Naming should possess the following properties:

The use of one name does not prevent other names from being used. For example, naming a file in the current directory shouldn't prevent you from naming a file in some other directory.
If an object does not have a name, then it is not accessible. A name is the only way to denote an object.
Singular objects do not require names. As an example, in uniprocessor machines, the single processor was unnamed and referred to implicitly. However, in multiprocessor or networked systems, each processor should have its own name.

Purposes

We can achieve several things by using names:

Sharing
Different entities can share an object through its name. If there are two or more processes accessing the same object, they can set up names and use them to denote the object. In this case, each entity could use a different name for the same object.
Secrecy
Naming can provide secrecy. In a large name space, usually only a small fraction of possible names are used. Moreover, it is not obvious what this fraction will be. An entity that knows a certain name possesses knowledge that may not otherwise be available. For example, computer passwords are typically chosen from a large set of unguessable character sequences, and provide a mechanism for secrecy. Binding of names in programming languages also provide secrecy.

The name of an object in an inner scope masks another object with the same name from an outer scope.

Concerns

We now look at some issues regarding naming.

Scalability
It is generally a bad idea in system design to assume that only a small number of names will ever be needed. Such an assumption is inherent in a fixed name size.
For naming to be scalable, we need the following:
- variable length names: The name space is potentially infinite.
- unique names: The same name cannot be used to refer to two different objects. Duplicate names would preclude controlled sharing and secrecy. Verifying the uniqueness of a new name can be done by comparison against existing names and takes linear time.
- no single central authority to produce names: At best, a single authority becomes a performance bottleneck, and at worst it is a single point of failure. Multiple entities should be able to check a name against existing names for uniqueness.
- a manageable cost to produce new names: A distributed linear algorithm is usually not good enough.
Hierarchical naming
One possible solution to the above performance problem is hierarchical naming. In hierarchical naming, we can denote names in the format: a/b/c/d/e/... Many names are actually of this type. For example, the phone number +1(607)255-9221 can be mapped to +1/607/255/9221, and the internet address fbs@cs.cornell.edu to edu/cornell/cs/fbs. A name without hierarchy is just a.
Hierarchical names have the following implementation advantages:
- indefinite growth in both directions: For example, we can add either area codes or extensions to expand phone numbers.
- distributed authority to create names: For example, one authority would be in charge of names beginning with a/b/c, while another would be in charge of names beginning with a/b/d. As long as each authority maintains the uniqueness of names within its assigned sub-domain, we will have global uniqueness of names.
Name information
Typically, we need more information about an object than only its name. There are two ways to do this:
- names accompanied by hints: We must be able to access hints for a given name, and, if the hints are stale, we must be able to correct them.
- impure names: A name is pure if there is no content in the name. An impure name contains attributes of the object it names. Intuitively, impure names are great, since we can easily extract necessary information from the name itself. On the other hand, impure names have a built-in consistency problem; when the information is no longer correct, the name must change. A mechanism is required for changing names. For example, a .forward file is used to handle email addresses that are no longer valid.

In the past, there had been considerable discussion in the network community regarding a distinction between names, addresses, and routes. This distinction actually turns out to be a non-issue. By conventional wisdom, a name designated an entity, an address denoted its location, and a route described how to get to that location. For example, in UUCP (Unix-Unix calling program), a route specifies the sequence of hosts to contact, e.g. rutgers!princeton!att!fbs. The question of naming arises in networks. In some cases, the name will also be the address and the route, e.g. gw2k.cs.cornell.edu.

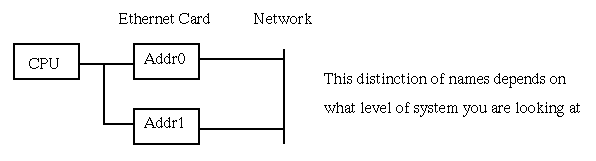

The current thinking is that such distinctions are specious. Each is merely a different level of abstraction. In fact, making such sharp distinctions can cause problems. Consider an Ethernet network.

Each Ethernet card has a unique address, and it was common to use the card attached to a processor to name the processor. The naming fails, however, when two cards are attached to the same processor, for then, there is the illusion of having two processors. The two cards provide names, routes and addresses for one CPU and the distinction is no longer useful.

Binding

Names are a way of denoting something, and associated with each name is an object. This association is called a binding. Names do not make sense without bindings, and they are always uttered with respect to a certain context. The meaning of the name is acquired from the context. A context maps names to objects and has the following properties:

The mapping is partial. Consider the use of names for secrecy: only a small fraction of the name space is used.
The mapping is subject to change, although it happens slowly and infrequently. E.g., after a file is edited, the same file name now refers to a different bit stream.
The domain of the context is interesting. That is, it may be useful to determine what is in the domain. We enumerate the names in a domain or sub-domain when we need to create new, unique names.

A simple example of a context is memory. Memory essentially associates with each address (name) a value

Where are these contexts? Generally speaking, names must acquire meaning in one of the following ways:

Names can have a meaning in a universal context. For example, a country code followed by a national phone number is a universal context, under the presumption that calls to Mars do not occur.
Names could be accompanied with the name of the context within which to evaluate the name. (For example, working directories for unqualified file names.)
We could assume (ensure) that whoever evaluates the name will use the same context as whoever sent the name. This can lead to unfortunate situations, however.

Context is another way in which to enforce security. For example, the name "write" may be bound to different things for different users depending upon their privileges. Context is thus also a form of protection.

Implementation of Hierarchical Naming

Recall that naming can be thought of in terms of a hierarchy. The question becomes how to manage binding? If there is no structure associated with a particular name then a global service is necessary. It makes more sense to regard a name such as /a/b/b as a list of simple names and implement it using a tree.

For example, in the above image, the name a/b/b denotes a leaf object and circles represent directories or contexts. A hierarchically-structured name can be regarded as defining a path in the tree.

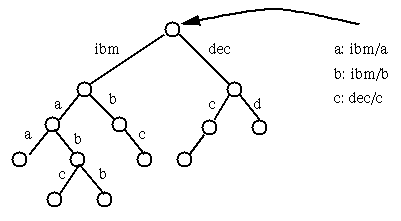

What if we are trying to merging two organizations, effectively extending names to the "left"? By simply merging, we create a new root node, and make the two original trees its left and right children respectively. The trouble is that none of the old names will work anymore. We need a way to "jump" over parts of the tree, to equate the value of a name in a directory with the value of another name in another directory. Consider the following example:

A solution is to provide a mapping from the path in the old names to paths in the new names. When we see an old name starting with a we map it to ibm/a. Similarly, b is mapped to ibm/b, c to dec/c, and so on. Generally, we can map the old name p/n to the new name p'/n'/n. This technique works provided that we have no duplicate names between the original two trees. Disk mounting in UNIX systems is an example of this method. For example, ~users/fbs might be mapped to /disk1/fbs, while ~users/rz is mapped to /disk2/rz. Note: the naming trees can actually be merged at any level.
