Python in CS 1110

Python comes in several shapes and sizes. To make sure that everything works properly, we require that every single person in the course use the same version of Python. You are free to either work in the labs or to use your laptop. But whatever the case, your version of Python must be the same as what we are using in the labs. Hence, even if you already have Python installed on your computer, we ask that you install a new version (see instructions below) so you can be consistent with everyone else.

As you will see, these instructions are a bit long. Installing Python is often much more complicated than simply using it. As many people in this class have not programmed before, we have tried to make installation as simple as possible via step-by-step instructions. You are not expected to understand what many of these steps are doing. Furthermore, these instructions are lengthy mainly because we are trying to support as many operating systems as possible. In practice, you should be able to finish the installation in 15-20 minutes.

If you have problems, and if you have a laptop, the best thing to do is to bring it in to someone to look at. Any of the course staff can help you with this. If you cannot bring in your computer, we have provided you with some instructions below. If you are having difficulty with these instructions, please post on Ed Discussions or send email to Al Palanuwech.

Table of Contents

• Installing Python
  • Installing on Windows
  • Installing on MacOS
  • Installing on Linux
• Getting Started with Python
  • Running Python Interactively
  • Testing a Script
• Installing Pulsar
• Using GitHub

Installing Python

While installing the base Python package is usually straight-forward, getting add-ons for Python can be a bit tricky. That is why we have decided to standardize on the Anaconda version of Python. This is a free version of Python that is used by many courses on campus. It contains a lot of add-ons, limiting the number of things you need to install later.

Once you have the base Python install, you need to install the “Cornell Extensions”. These are 3rd party extensions packaged by us (and sometimes made by us) to fit into Python. These extra packages include things like graphics capabilities to make games and flashy applications.

Before you install these, be sure to completely read the instructions for your operating system. While you are unlikely to make any mistakes, it is best for you to do things in exactly the order we tell you to. As we said, you do not need to understand what is going on here.

Installing on Windows

This class supports either Windows 10 or 11. We do not support Windows 8 or 7 anymore, nor do we support older 32-bit versions of Windows. If you are using an older version of Windows, we recommend that you upgrade now before the semester starts. If your machine cannot support a newer version of Windows, you will need to work on the lab computers in Phillips 318.

For this class, we need to use Python version 3.11.4. This is the most recent version of Anaconda, and has proven to be the most stable on all (new) systems. Note that you can alo get 3.11.4 from python.org. However, that version is missing a long of the not the most recent version of Python; the version on python.org is 3.10.6. However, that version is not stable and we recommend that you uninstall it in favor of Anaconda.

Installing Anaconda for Python 3.11.4

Use the above link to install the correct version for your operating system. The file that you download is an installer app. Simply double click on it and follow the directions. At one point in the installer, it will ask you whether you want to install for yourself or for all users. Select the option “All Users (requires admin privileges)”, as shown below.

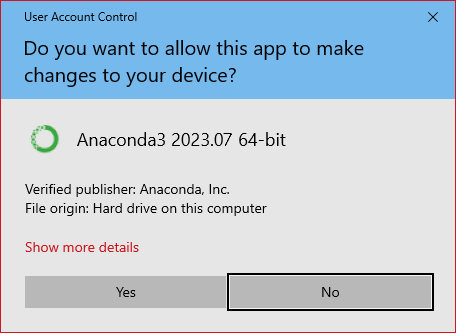

When you do this, you will get a protection warning that looks like the one shown below.

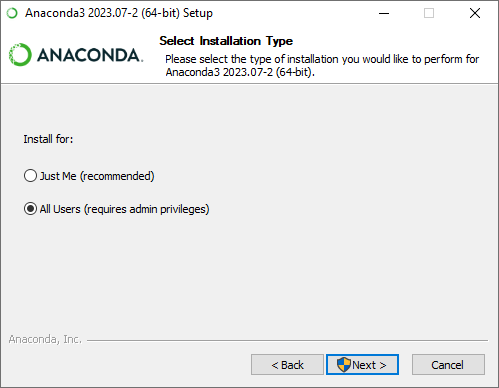

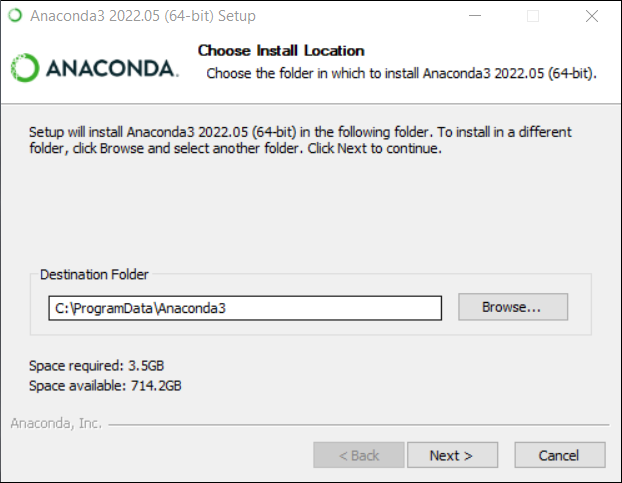

Click Yes to return to the installer. On the next page it will ask you what directory you want to install in. By default, it will install in C:\ProgramData\Anaconda3. You need this folder for Cornell Extensions to work properly. If what you see does not match up seek help immediately. Otherwise leave this alone and click Next,

Click Next to get a list of three installation settings. It is safe to check all of the boxes shown below.

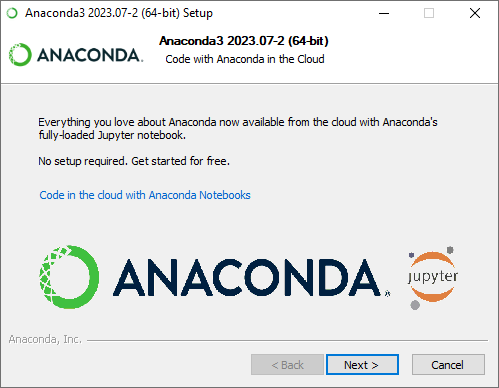

Click Next one more time to start the installation. When you are done, you will see some information about using Anaconda in the cloud. Ignore this, as it is not compatible with how we use Python.

We also recommend that you leave the boxes blank on the final setup page.

Installing the Cornell Extensions

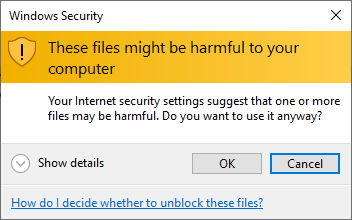

Download the file from the link above. Because these extensions contain a script file, your version of Windows might think it is a Trojan and give you the following warning.

You should ignore this and click Ok. After downloading, you will see that this is a folder with a zipper on it. Double click on the folder. This will open an Explorer Window with another folder inside of it called CornellExtensionsInstall Drag the CornellExtensionsInstall folder on to your Desktop. This is important, as the installation is not guaranteed to work if you click on the installer while it is still inside the folder with the zipper (files inside of zipped folders are not “real” until you pull them out).

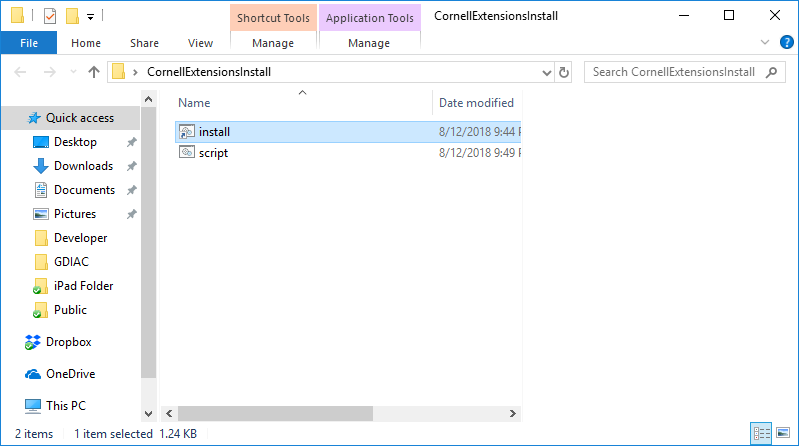

Now that you have a copy of CornellExtensionsInstall on your Desktop, open this folder (again, not the one in the zipped folder!). Inside, you should see the following two items:

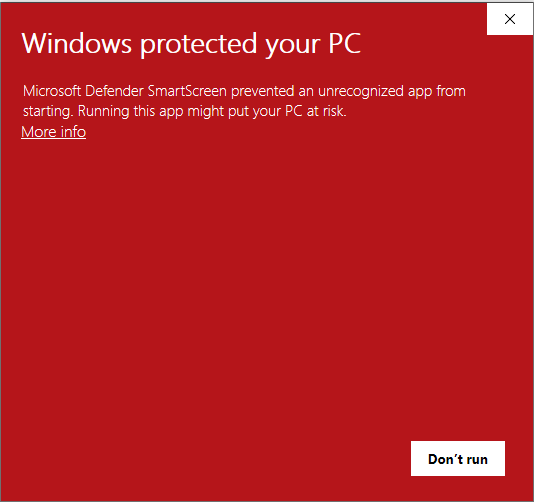

Double-click on the file that is named install. You will see another warning message.

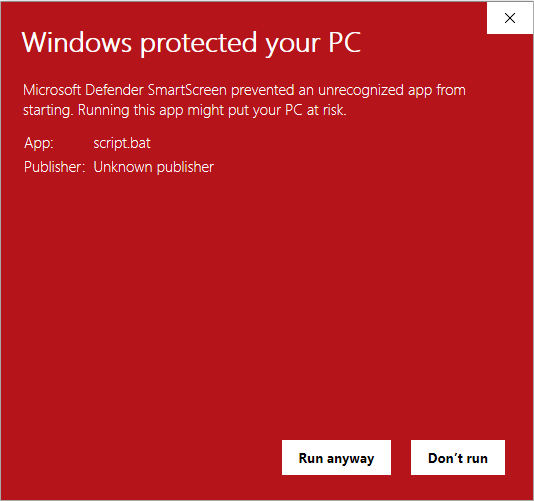

Click on the link More Info to get a button that says Run Anyway as shown below.

Once you click Run Anyway, your computer will pop up a window with a lot of scrolling text in it. Do not close the Window until you see the line that says “Installation Complete”, and asking you to hit a key. If you close the Window too early, you will have to install a second time. Once you have finished with the Cornell Extensions, you should immediately test your installation.

Installing on Macintosh

While Macs are a great platform to run Python on, the switch away from Intel has made things a little confusing. The first thing you need to do before you install on your Mac is to find the version of macOS you are running. You can find this out by selecting About This Mac from the Apple Menu. For example, in the picture below, the Mac is running Monterey (macOS 12).

We do not support any version of macOS older than Big Sur (macOS 11). If you are running on Catalina (macOS 10.15) or older, you will need to update your computer. If this is not possible, please talk to one of the instructors, though it is likely that you will simply have to work on the lab computers in Phillips 318.

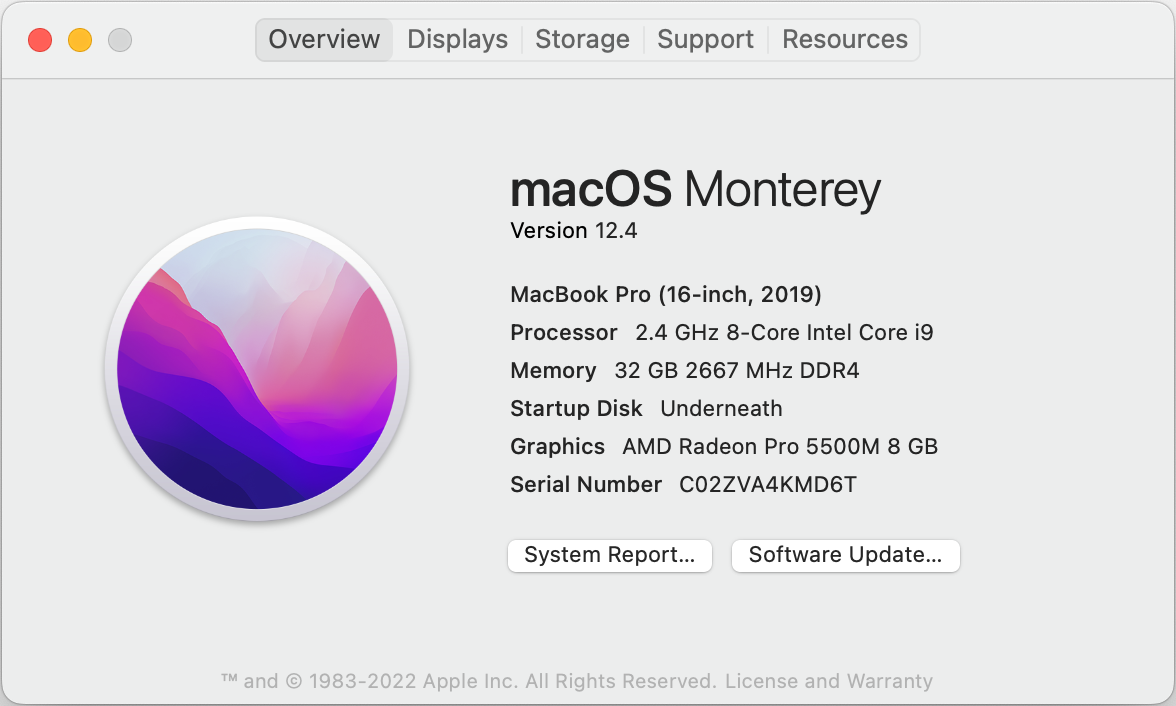

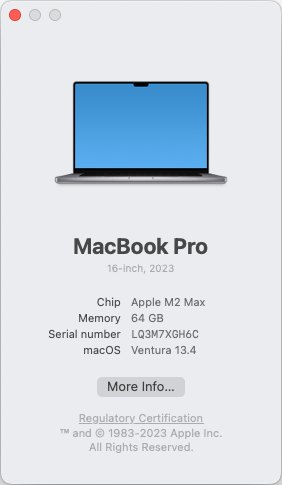

Provided that you are running an appropriate version of macOS, the next thing to indentify is the processor. Older Macs run on Intel chips as shown in the Monterey example above. Never Macs run on Apple Silicon, typically identified as M1 or M2. For example, the Mac below is Apple Silicon running Ventura (macOS 13).

As a general rule, you can always be safe by using the Intel version. Silicon Macs can run Intel software, but the reverse is not true.

Installing Anaconda for MacOS

Use the above link to install the correct version for your operating system. The file that you download is an installer app. Double click on it to start the installation. Stop when you see this page.

We have discovered that the default install location can cause problems on Apple Silicon. Therefore, to make it easier to help you, we want everyone to click Change Install Location…. We recommend this even for Mac users on Intel processors.

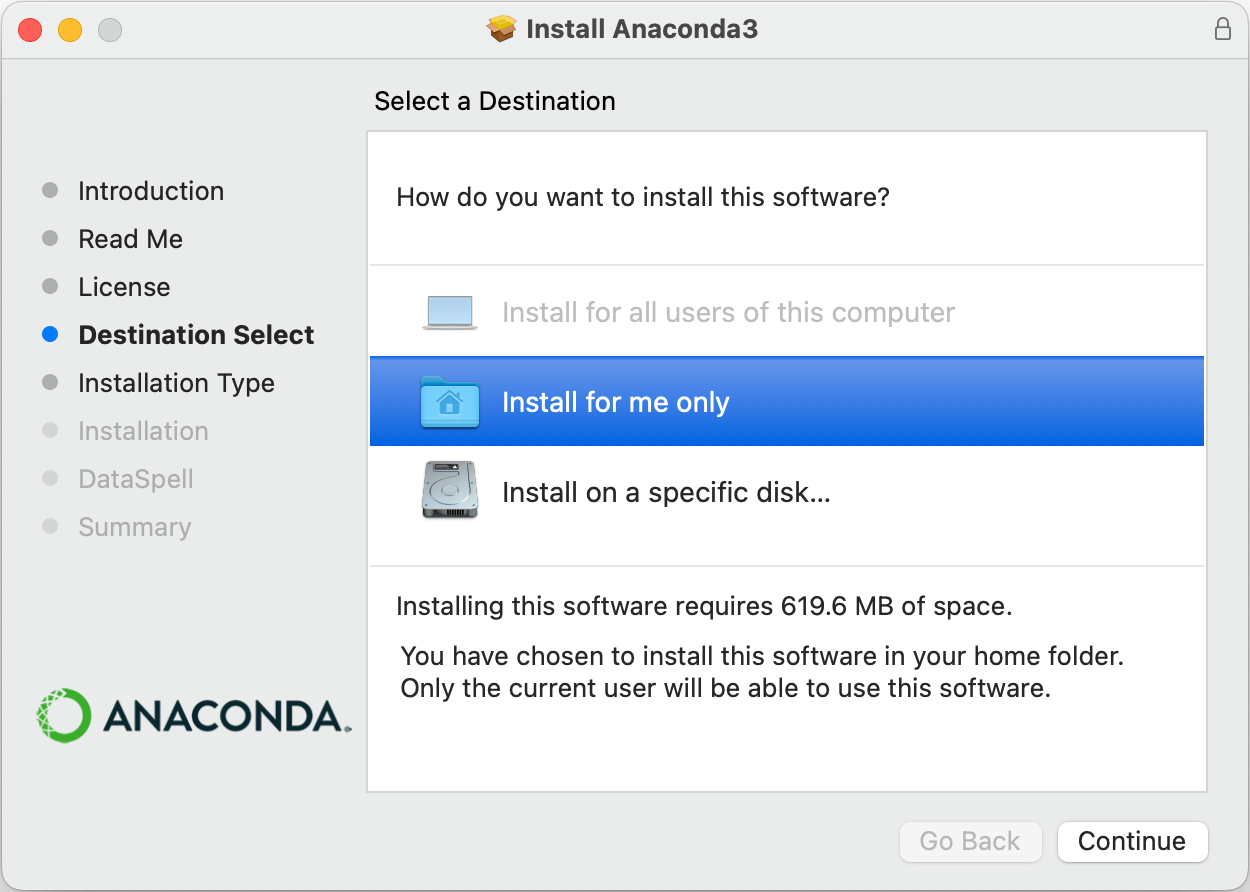

After you click on this button, you should see the following.

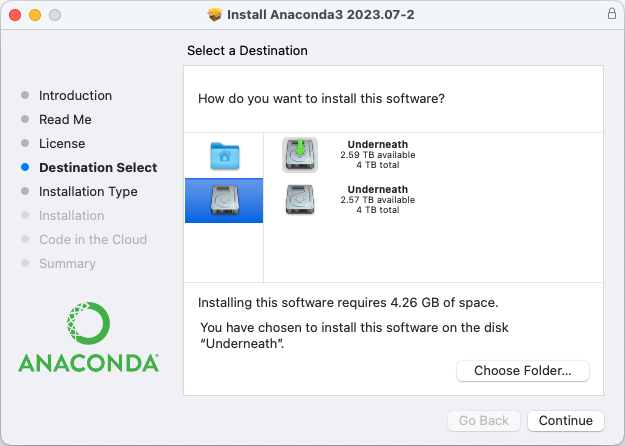

You must change this to Install on a specific disk…. Click on the image of the hard drive, and you will see a picture similar to the one below. Note that you might see the hard drive twice. This is a weird feature on new Macs where Apple splits your hard drive into two parts for security reasons. Simply click on the top hard drive so that is has the green arrow on it, like we have done.

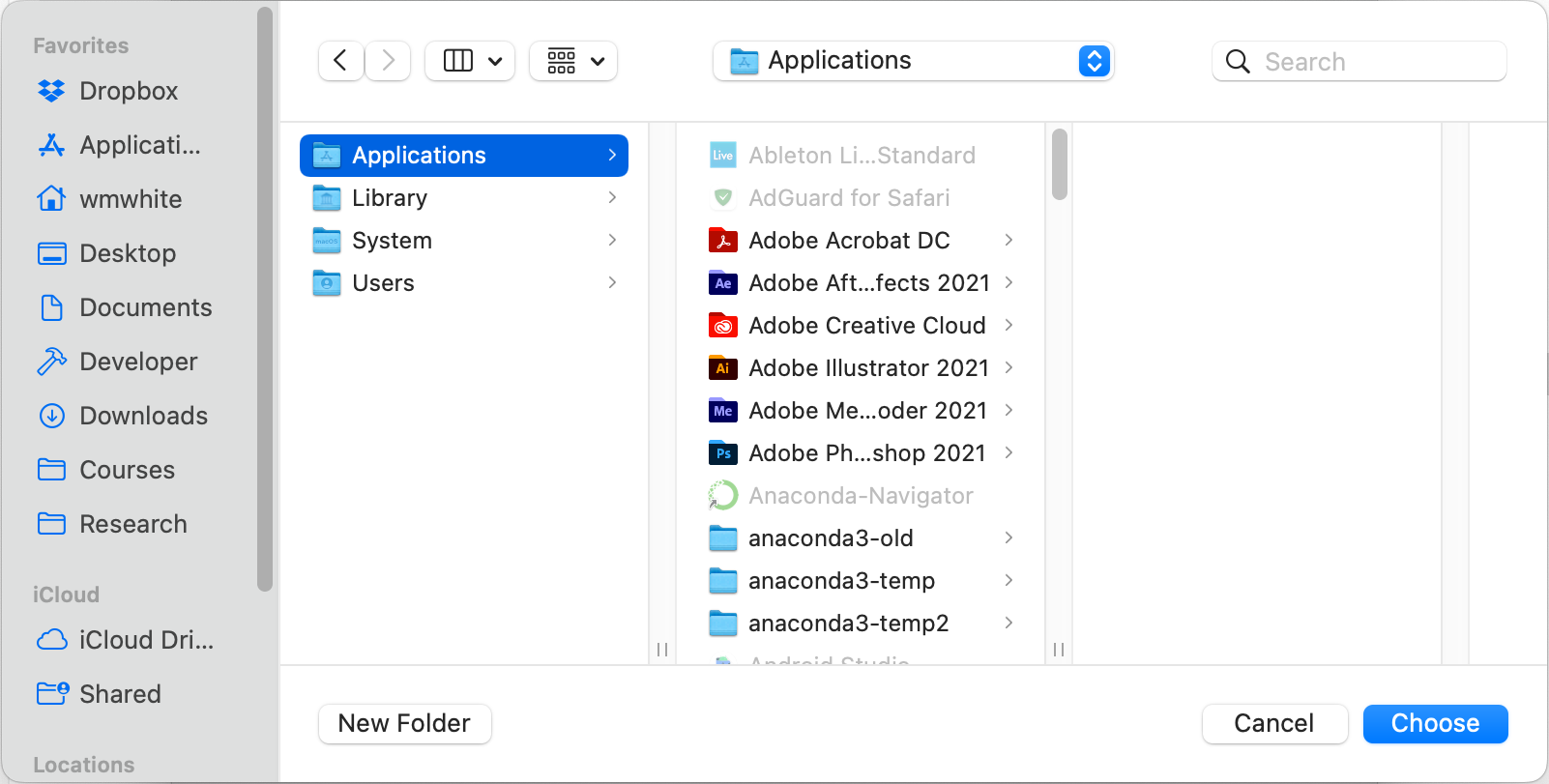

Now you need to select Choose Folder. We want you to put it in the Applications folder as shown below. This is the standard place to install apps on a Mac.

You should now continue the installation as normal. When you are done installing, you will receive some information about using Anaconda in the cloud. Ignore this, as it is not compatible with how we use Python.

When done, Anaconda may launch something called the Anaconda Navigator. You should quit this program immediately as we will not be using those tools.

Installing the Cornell Extensions

The last step is to install the Cornell Extensions for CS 1110. Download this file from the link above. After downloading the file, double click on it to unzip the contents into a folder somewhere on your computer.

Once again, you see will a package installer. Double click thid installer. You may see a warning telling you that this is not an official installer (because we made it). If that happens, you will need to control-click the installer and select Open from the drop-down menu.

If the installer launches properly, you will see the following window:

Follow the directions for the installer. Your installation is now complete. Once you have finished with the Cornell Extensions, you should immediately test your installation.

Installing on Linux

Linux installation is possible, but it is not as straight-forward as the two main OS options. In particular, to install on Linux, you have to be comfortable with the Terminal and be ready to install files with a package installer. If this sounds daunting to you, you might want to rethink about whether you want to use Linux just yet.

For this class, we need to use Python version 3.11.4. This the most recent version of Python, and the most recent version supported by Anaconda. If you do not want to install Anaconda, you have to follow the instructions for an alternate Python.

In the past, we have had install parties for Linux users. We have worked to make the instructions more self-sufficient this year. However, if there is still demand for a Linux install party, post your request on Ed Discussions.

Installing Anaconda for Python 3.11.4

Use one of the two links above to install the correct version for your processor. While most Linux machines still use Intel, we are starting to see more ARM versions these days. As using Linux requires substantial technical know-how, we will assume that you know your machine’s processor.

Note that these are not a graphical installers. To install Anaconda, you must navigate to the folder with the downloaded file and run it with bash. For example, if you downloaded the Intel version, you would type:

   bash Anaconda3-2023.07-2-Linux-x86_64.sh

You must use the “bash” command even if you are not using the bash shell.

You may install Anaconda where ever you wish. By default, it installs in your home directory. However, we prefer to install it in /usr/local. The choice is up to you.

Installing the Cornell Extensions

Because Linux platforms are so different, there is no one-click installer for Linux. In particular, we would need to know whether you are using apt-get (Debian, Ubuntu) or yum to install software. So we will let you do this on your own. There are two important steps.

Installing Kivy

Kivy is the graphics library that we will be using for several of the assignments in this class. In the past, students have had to compile this library from source code. However, Kivy now has installers for several flavors on Linux. Look at the downloads page for more information.

For Ubuntu, you will notice that the instructions suggest using apt-get. This only works for installing Kivy into the the official Ubuntu Python 3. This version of Python is old and missing a lot of packages. Therefore, we suggest that you install using PIP. The exact sequence for installing on Linux (assuming you are running Python 3.9.12) is as follows:

    > sudo pip install --upgrade pip setuptools
    > pip install kivy[base]

Installing introcs

If you got Kivy working, then you are almost done. The last step is the easiest. You need to install the introcs package using PIP. The command is

    > pip install introcs

Once this is installed, you are are ready to test your installation.

Using An Alternate Version of Python

If anything goes really wrong, you may just want to use the built-in Python 3 provided by your version of Linux. It is not ideal (many are still using 3.5 or 3.6), but it will get you through the course. However, if you go your own way, there are several packages that you must install (using PIP). All of these packages are in addition to Kivy and introcs.

• tkinter
• pillow
• numpy
• scipy
• matplotlib
• requests
• dateutil

Keep in mind that this option may require you to build Kivy from source. If you cannot figure out how to do that, you may want to rethink using Linux for the semester.

Getting Started with Python

Before you do anything else, you must fully test out your Python installation. You need to verify that both Anaconda and Cornell Extensions are installed correctly. It is easier to fix problems now than waiting until later.

Running the Python Shell

The first thing that you need to do is to familiarize yourself with command shell for your OS. The command shell is a text-based version of the Windows Explorer or Finder; you can use it to move and rename files and folders. It is also how we will run Python in this class.

Using the command shell requires a bit of practice, so we have created a separate page of instructions for this. Right now, all you need to know is how to start up the command shell. You do not need to know any special commands. Start the command shell for your OS and type

 python

This will put you in the “Python Interactive Shell”.

IMPORTANT: If you did not install CornellExtensions correctly on Windows this command will immediately launch the Windows Store. That is because the command shell cannot find Anaconda and is looking for an alternative. Go to consulting hours immediately for help if this happens.

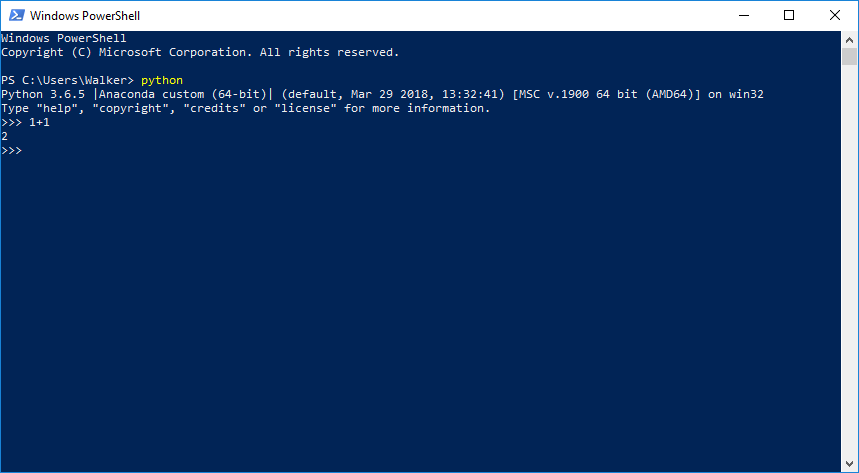

The Python Interactive Shell looks exactly like the command shell except that it takes Python commands (and does not respond to operating system commands to list files or change the working directory). While the command shells are different for all operating systems, the Python Interactive Shell should look and behave exactly the same way for everyone. On Windows, it will look something like this.

The >>> symbols are the prompt. To get the shell to do something, just type a Python command. For example, type

 >>> 1+1

and hit Return (do not type the >>>; it is already there). See what happens?

To exit the Python Interactive Shell, type quit() and hit Return. You can also exit by typing Control-D.

Testing a Script

It is possible to run a Python script from the command shell as well. A script is a file (ending in suffix .py) containing Python code. We will use them throughout the course. To run a script, you type

 python <filename>

from the command shell. Do not try to type this in the Python Interactive Shell. This can be a bit confusing at first; it is important to keep the following straight:

• The command shell is a program for accessing files via text based commands. You start Python in this program, but it is not Python. * The Python Interactive Shell is a program that runs inside the command shell. You can tell it is running by the presence of the >>> prompt.

Running a script does not start the Python Interactive Shell. It runs all of the commands in the file, and then quits immediately when done with the file.

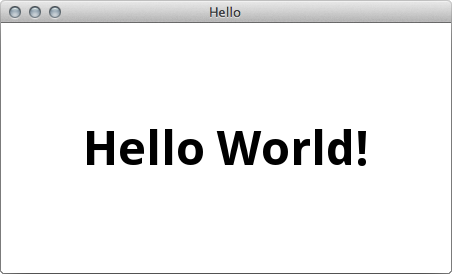

To test that your installation is working properly, we have two cute Python scripts that display a GUI with the phrase “Hello World!” inside it, as shown below.

To try these out on your computer, download the following files:

• hello_tk.py
• hello_kivy.py

Put these both in some easy-to-find folder. To run them, open up a command shell and navigate to this folder using the drag-and-drop trick for changing directories. Then run each of the scripts. To run hello_tk.py, type

 python hello_tk.py

To run hello_kivy.py, type

 python hello_kivy.py

If you have installed everything correctly, you should see the image above each time. The reason we have two scripts is because There are actually two different ways to create GUIs in Python, and we need to make sure that both work.

If either of the scripts fails, look very carefully at the error messages. If it says it cannot find the file, then you did not use the drag-and-drop trick correctly. We recommend that you practice with the command shell tutorial some more. Otherwise, this means is a problem with your installation of Python. Post your error message to Ed Discussions and we will try to help you out.

Installing Pulsar

The last program to install is Pulsar. Unlike Python, you will not use this program right away. In fact, we will not start to use it until the third week of class. The purpose of Pulsar is to make these mysterious scripts that you tested in the previous step.

Technically, you can write Python scripts in any text editor (e.g. a Word processor that only produces text and does not have fonts or fancy formatting). NotePad and WordPad are text editors in Windows, while TextEdit is provided by MacOS. The reason we use Pulsar is that it is the same across all platforms. That allows you to collaborate with partners who might be working on other operating systems. While there are some alternative editors out there to use, we have decided to standardize on Pulsar because it is immediately ready for Python with little configuration necessary.

To install Pulsar, click the button above download the appropriate file. If you are using a Mac computer, the downloaded file should be a .dmg. Click on that to load a virtual drive containing the Pulsar application, and drag that into your Applications folder.

The installation for Windows is a little more complicated. You will get an installer file, much like the installer you used for Anaconda. Like Cornell Extensions, this installer has not been official verified with Microsoft (but it is okay, we promise). That means you will once again see the following error message.

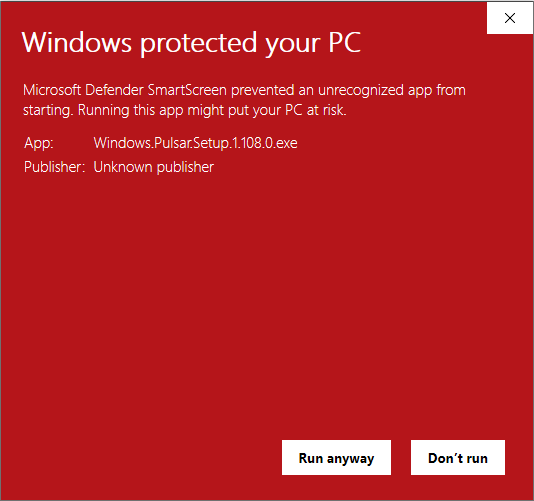

As before, click on the link More Info to get a button that says Run Anyway as shown below.

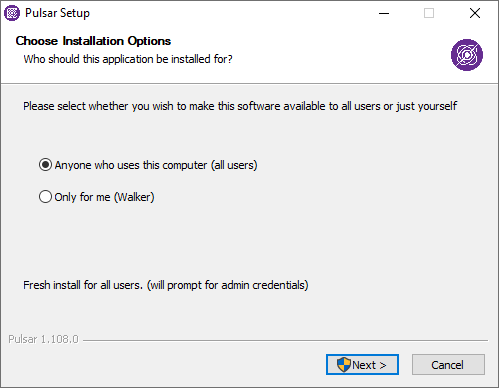

As with Anaconda, you will be instructed to install for just yourself or for everyone. Once again, we recommend installing for everyone.

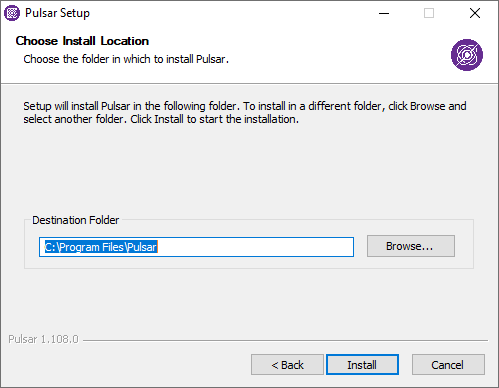

Choosing this option will prompt you to install Pulsar in the directory shown

Click Install to finish the installation.

Finally, if you are using Linux, the links above the link will take you directly to the Pulsar website. You should follow the instructions there. Alternatively, you can install Pulsar with the package manager for your distribution (it is okay if the version of Pulsar is older than the current version).

Configuring Pulsar

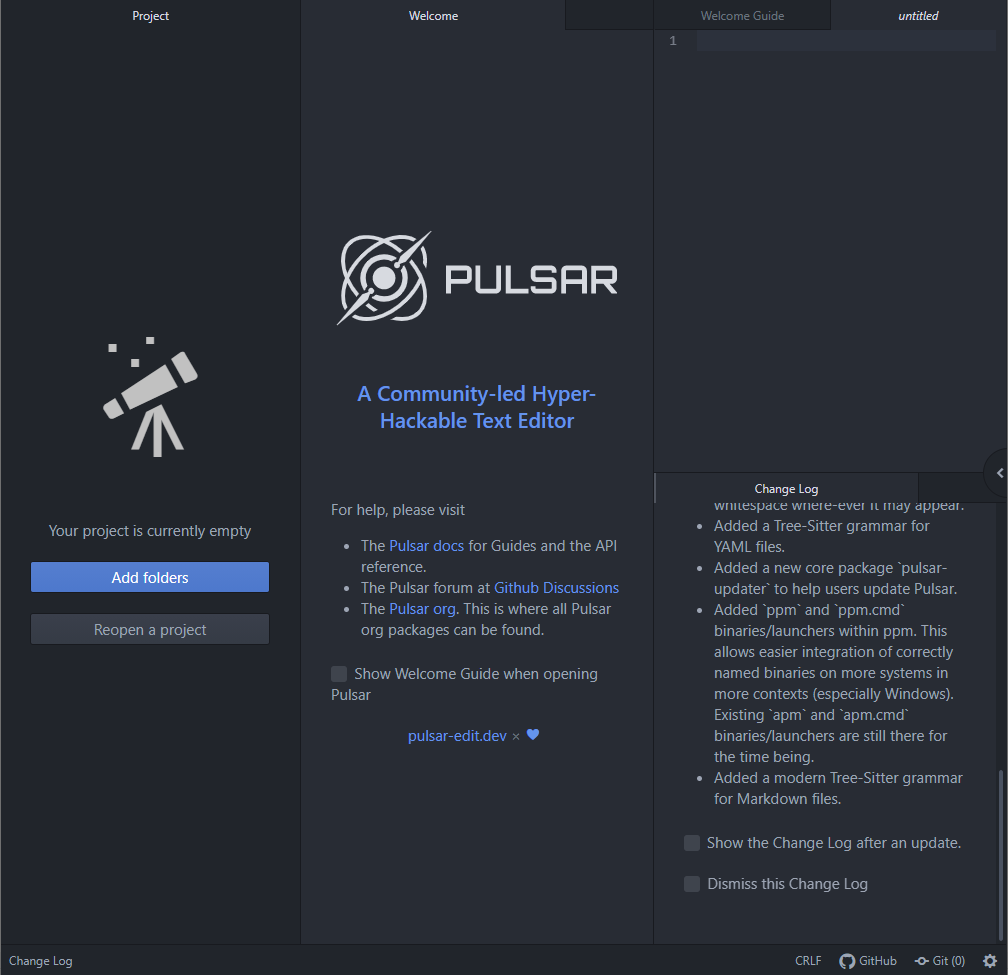

The first time that you open Pulsar, you will see two welcome windows like the ones shown below. These windows will keep popping up every time you open Pulsar, and will constantly get in the way. So we want to get rid of them. Make sure to uncheck the boxes Show Welcome Guide when opening Pulsar and Show the Change Log after an update. Then close these windows by clicking their tabs at the top of the window.

The next thing you should do is to make sure your whitespace is configured correctly. One of the most controversial aspects of Python is that it treats spaces and tabs (which are called whitespace, because they are invisible) very differently. If you accidentally put a tab in your program, it will cause your program will crash. And you will have a hard time finding it because both tabs and spaces look exactly the same.

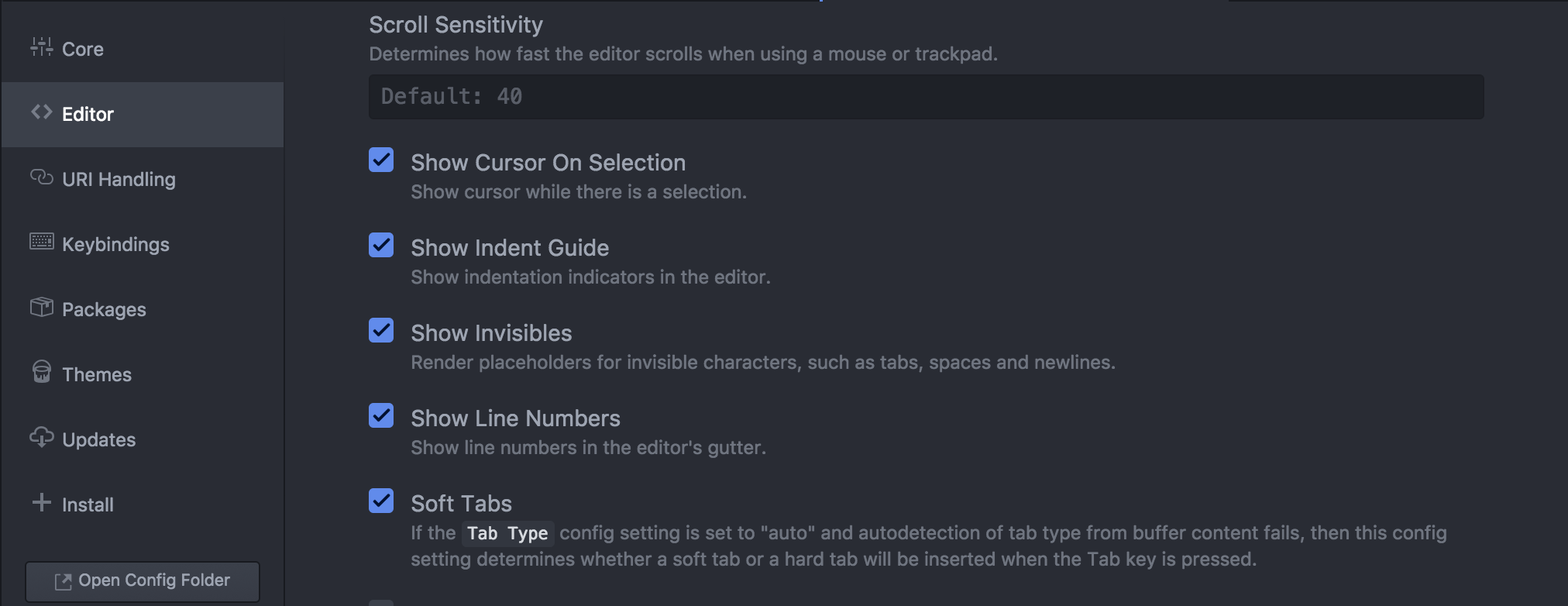

Most of the time, this is not a problem. However, we must first configure Atom so that indentation is consistent across all of our files. First, open Pulsar. Then, open the Settings menu option; in Windows, it is under the File category, and in Mac, it is under Atom (and is named Preferences). In the settings window that opens, select the Editor category, and scroll down. First, check the boxes “Show Indent Guide” and “Show Invisibles” so that your settings match this image:

Click for Bigger Image

This will allow you to see both tabs and spaces, and to tell the difference between both. Spaces will look like light dots which are centered vertically on each line. Tabs will look like two ‘>’ characters next to each other. These are illustrated in the examples below.

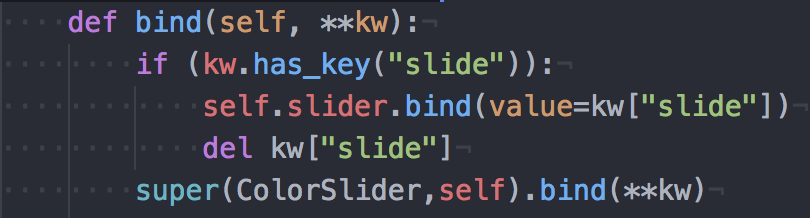

Pulsar with Tabs (Bad)		Spaces Only (Good)

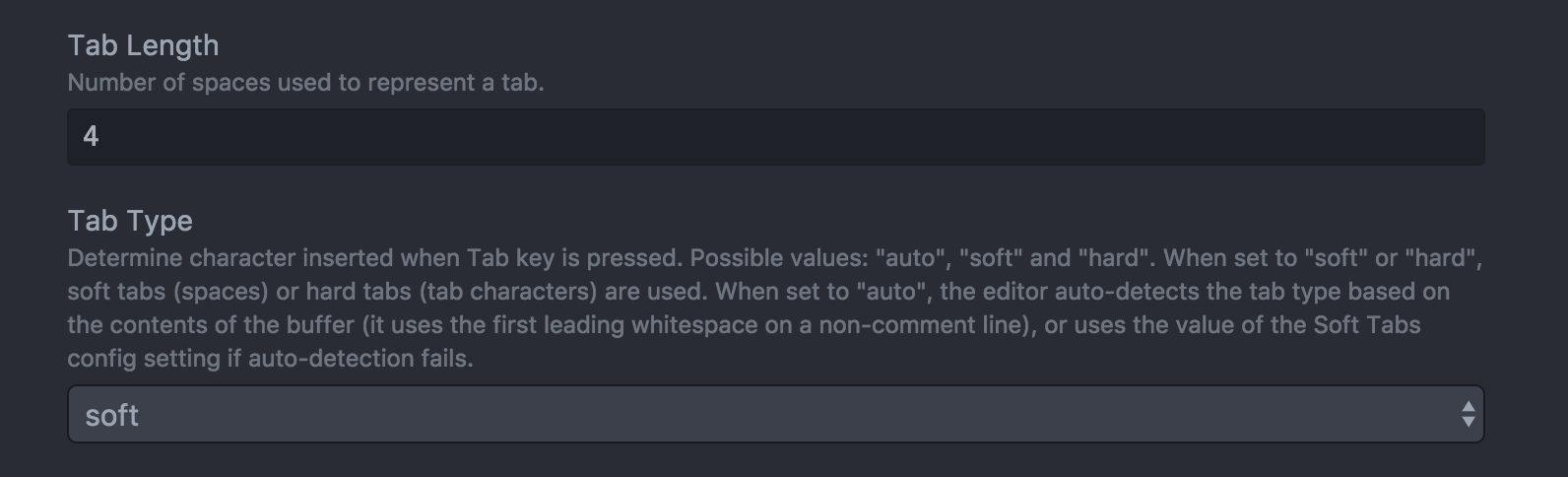

Continue scrolling down. Make sure that the value in “Tab Length” is 4, and click on the value in “Tab Type”. This should open a drop-down menu. Select “soft”. This will make Pulsar automatically replace all Tabs you input with 4 spaces. After configuring, these two settings should look like this:

Click for Bigger Image

Alternative Editors

There are many other Python code editors out there, and everyone has their own preference. You are free to use whatever editor you want, so long as you have the license to use it. For example, some people really like Sublime Text. However, that program is not free, and therefore we cannot encourage its use in this class. But if you have paid for a license for this editor, you are free to use it.

The most obvious alternative to Pulsar is VSCode. In fact, Pulsar is a successor to Atom, and Microsoft discontinued Atom to focus work on VSCode. However, we can say from experience that VSCode is completely unsuitable for beginner Python programming. VSCode violates the Python specification in serious ways, resulting in erroneous and confusing error messages. If you come to us with an error in VSCode, we will instruct you to uninstall that software.

Another thing to keep in mind is that many of the projects are done with partners. While you are free to use other editors, we recommend that you and your partner both use the same editor.

Using GitHub

We do not require the use of GitHub for this course, as it is a bit too advanced for many students. However, we know that some of you will use it anyway, particularly for sharing assignment code with your partner. Because of our academic integrity policy, we need to put strict rules on its use.

The free accounts that you get from github.com are publicly viewable. That means anyone can see them, and anyone can download code from them. This means that if you put your code on GitHub, and another student downloads it, you will be held liable for cheating, even though you may have no idea who this other person is. In fact, any code we find in publicly visibile in GitHub will constitute and academic integrity violation whether or not anyone copies it.

If you want to use a code repository, you should use the official Cornell GitHub instead. Any projects that you put here will be protected and cannot be accessed by other students. You will not be held liable for security leaks that are not your fault.

We know that this is inconvenient for students that would like to show code to prospective employers. However, there has been enough abuse of this in recent years that we have had to take a stricter approach to GitHub. We recommend that you share your code through a private repository or else work on another Python project in your own time.
