Loops and Invariants
There is a PDF version of these instructions, if you would prefer
to have that instead.
The purpose of this lab is to give you practice with developing loops from invariants. It also
introduces some of the important seqeunce algorithms that you should know for the final exam.
On the final, you would be expected to write (a variation of) one of the following: binary search,
Dutch National Flag, partition, selection sort, and insertion sort.
Requirements For This Lab
There is no code to turn in for this lab. The purpose of this lab is to design loop algorithms,
and you are to write the algorithms that you design (together with the diagrams for your pre and
postconditions) on this sheet of paper. When you are done, you should show your instructor the
contents of the sheet. If you finish the first three exercises, the instructor will mark
you down has having completed the assignment.
If you do not finish that much, you should the first three exercises by the beginning of the
next lab, which is after Thanksgiving. You should show them to your instructor at that time.
In any case, you should try to do all the exercises (including the remaining two) because that
will help you understand and gain skill in solving such problems.
Note in our sample answers, that we do not draw all the pictures that are required. If an
invariant is not drawn as a picture, you should draw it as a picture before continuing to work
on the problem. If you need help, you should ask your TA or consultant.
You do not need to implement these algorithms. However, if you wish to test your programs
in Python, you are welcome to do so. In this case, you may find it useful to print out the
contents of the list after each time that you complete the algorithm.
If you get stuck, do not waste time. Ask the TA or consultant for help.
Algorithm Shortcuts
In writing your algorithms in the space below, we want the algorithms to be as close to Python as
possible, and not high-level "pseudo-code". However, if you want to swap two elements
of an list, you are permitted to write
swap b[i] and b[j];
instead of the the three assignments that perform the swap.
Exercise 1: Warm-Up Exercises
Counting the values in b[x..y-1]
You are to give a formula (in Python code) for the number of values in the segment
b[x..y-1] , which you should write in the box below:
If you do not know what the formula is, first try to figure it our by looking at segments
of size 1 and 2. Otherwise, ask you instructor and then memorize it. That formula is a
useful tool. Knowing it will help you develop loops that deal with ranges of integers.
Drawing Array Diagrams
Draw an list b that satisfies these conditions
b[0..i] >= 5, b[i+1..j] = 5, b[j+1..] <= 5
Exercise 2: Finding the Minimum of the List
The following are assertions for an algorithm to find the minimum of an list
b[h..k]:
Precondition: h <= k < len(b)
Postcondition: b[x] is the minimum of b[h..k]

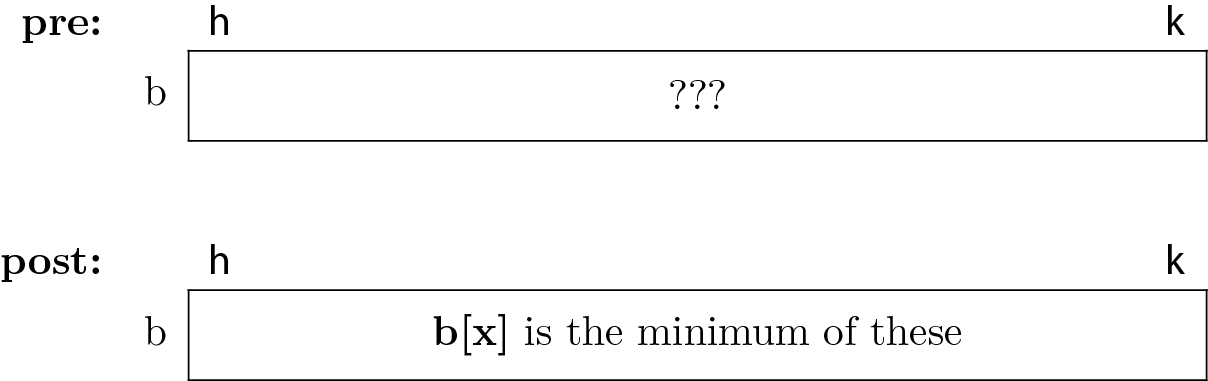

We represent these assertions as the following pictures (you may either use the
text version or the pictures in your algoritms).
Given these assertions, we present four different loop invariants below. You are to
write a loop (with initialization) for each one.
Invariant P1

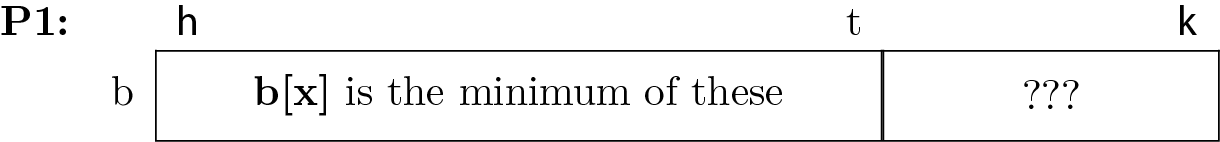

Written in text form, this invariant is as follows:
invariant: b[x] is the minimum of b[h..t]
Pictorially, we represent it as follows:
Write your loop for this invariant in the space below:
Invariant P2

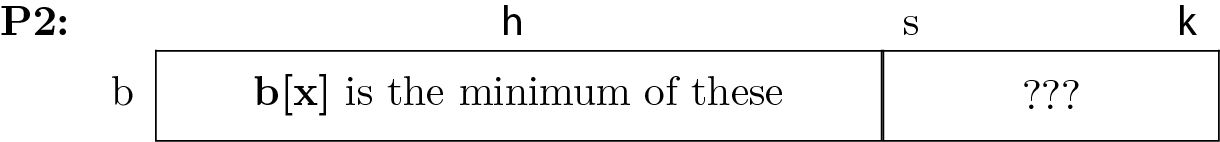

Written in text form, this invariant is as follows:
invariant: b[x] is the minimum of b[h..s-1]
Pictorially, we represent it as follows:
Write your loop for this invariant in the space below:
Invariant P3

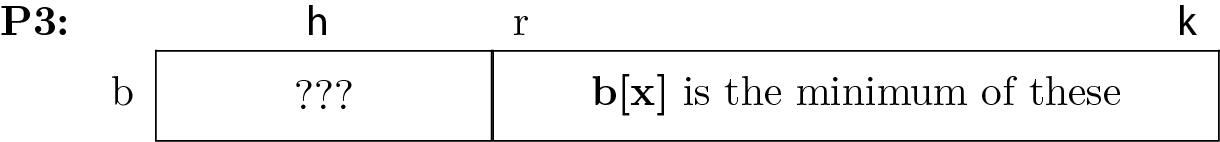

Written in text form, this invariant is as follows:
invariant: b[x] is the minimum of b[r..k]
Pictorially, we represent it as follows:
Write your loop for this invariant in the space below:
Invariant P4

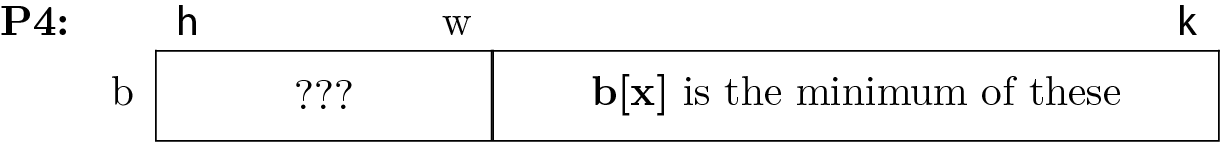

Written in text form, this invariant is as follows:
invariant: b[x] is the minimum of b[w+1..k]
Pictorially, we represent it as follows:
Write your loop for this invariant in the space below:
Exercise 3: Partitioning on a Fixed Value
The purpose of the algorithms in this question is to swap the values of list b and
to store a value in k so that the postcondition given below is true. Array b is not
necessarily sorted initially. The precondition and postcondition are as follows:
Precondition: b[0..] = ? (i.e. nothing is known about the values in b)
Postcondition: b[0..k] ≤ 6 and b[k+1..] > 6
Below are three different invariants. You should write a loop (with initialization) for
each one. You are also to draw pictorial representation of the invariant in each case.
Invariant P1
Written in text form, this invariant is as follows:
P1: b[0..h] < 6 and b[k+1..] > 6
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
Invariant P2
Written in text form, this invariant is as follows:
P2: b[0..k] < 6 and b[t..] > 6
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
Invariant P3
Written in text form, this invariant is as follows:
P3: b[0..s-1] < 6 and b[k+1..] > 6
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
Exercise 4: General Partitioning Algorithm
This question is a generalization of the previous one. Again b is not necessarily sorted
initially. Develop the partition algorithm (which uses only swap operations) to meet the
assertions below:
Precondition: b[h] = x for some x and h ≤ k < len(b)
(this is just so we can talk about b[h] initially; x is not a program variable.)
Postcondition: b[h..j-1] ≤ x = b[j] ≤ b[j+1..k]
Below are three different invariants. You should write a loop (with initialization) for each one.
You are also to draw pictorial representation of the invariant in each case.
Invariant P1
Written in text form, this invariant is as follows:
P1: b[h..j-1] ≤ x = b[j] ≤ b[t..k]
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
Invariant P2
Written in text form, this invariant is as follows:
P2: b[h..j-1] ≤ x = b[j] ≤ b[q+1..k]
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
Invariant P3
Written in text form, this invariant is as follows:
P3: b[h..j-1] ≤ x = b[j] ≤ b[j+1..n-1]
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
Exercise 5: Selection Sort
The last exercise is to write a selection sort, which sorts the contents of the list b.
The postcondition for this problem is straightforward:
Postcondition: b[0..len(b)â1 is sorted (in ascending order)
We have provided several invariants for you below. Before you do each one, write the
invariant as a picture. Then write the statement(s) you use to maintain the invariant
in the repetend in English. You should state what it is you want to do, not
how to do it. In particular, we do not want to see a nested loop (e.g.
a loop within the repetend of your first loop). Instead, you should use one of the two
methods you wrote above as a helper method.
Invariant P1
Written in text form, this invariant is as follows:
P1: b[0..kâ1] is sorted and b[0..kâ1] ≤ b[k..]
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
Invariant P2
Written in text form, this invariant is as follows:
P2: b[0..h] is sorted and b[0..h] ≤ b[h+1..]
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
Invariant P3
Written in text form, this invariant is as follows:
P3: b[s+1..len(b)-1] is sorted and b[0..s] ≤ b[s+1..]
Draw the pictorial representation of this invariant below
Write your loop for this invariant in the space below:
|
