The final assignment for CS 1110 has always been to develop a game in Python. Game development ties together everything that we have learned in this class into one large project. While modern games are far too advanced for this class, classics of the original arcade era (like Space Invaders, Frogger, or Breakout) are well within your ability. This year we are making a clone of the game Asteroids.

If you have never played Asteroids before, there are a few versions online as HTML5 games. Asteroids Reloaded is a particularly flashy remake. However, it contains a lot of features not found in the original game, and is far more advanced than what you are going to do. At the very least, you should press the R key to play that game with the retro-graphics from the original.

One of the main challenges with this assignment is its scope is completely up to you. There is a bare minimum of functionality that you must implement. You must implement a complete, single wave of Asteroids. But after that point, you are free (and encouraged) to add more interesting features to your game. The video above shows our solution, which has several extra features such as sound, scoring, and a rocket animation. But you are permitted to do anything that you want, provided that the basic functionality is there.

Despite any difficulties you might have had with previous assignments, we know that this assignment is easily within your grasp. You just have to start early, break the problem up into manageable pieces, and program/test incrementally. Below, we discuss stages of implementation and give suggestions for staying on t op of the project. If you follow our advice and test each piece thoroughly before proceeding to the next, you should be successful.

Our bare minimum solution is about 1030 lines of code (including specifications and comments). This is ~260 lines in app.py (including the ~160 lines already there), ~390 lines in wave.py (including the ~85 lines already there), and ~370 lines in models.py (including the ~120 lines already there). So you should expect to write just a little over 655 lines of code for the bare minimum solution. While this may seem intimidating, the majority of that consists of headers and specifications. Our minimum solution has ~25 methods across five classes, not including getters and setters.

Author: W. White

Learning Objectives

This final assignment has several important objectives:

• It gives you practice reading official class documentation and APIs.
• It gives you experience with a complex, interactive application.
• It gives you experience designing helper functions to structure your code properly.
• It gives you experience using constants to make your code more readable.
• It gives you experience working with vector calculations and simple collisions.
• It gives you experience with an open-ended project that is not fully specified.

Table of Contents

• Academic Integrity and Collaboration
  • Copyrighted Material
  • Extension Policy
• Organization and Scope
• Overview of Planetoids
• The Basic Game
  • 1. Create a Welcome Screen
  • 2. Load the Level File
  • 3. Animate the Ship
  • 4. Wrap the Movement
  • 5. Add the Asteroids
  • 6. Fire Bullets
  • 7. Process Collisions
  • 8. Finish the Game
• Additional Features
• Finishing Touches

Academic Integrity and Collaboration

Academic Integrity

Because of the complexity of this assignment, this is the one where we most worry about improper collaboration. For that reason, we will be running Moss very heavily on this assignment. Because it is so open-ended it is completely impossible for your code to look like someone else’s, unless you looked at the code and then used it to design your own. We are 100% guaranteed to catch you if you do this. No matter how different you think your code will be, it will not be different.

Furthermore, because of the time that it takes to grade this assignment, any academic integrity hearings will have to be delayed until Spring semester (meaning that such students will receive an Incomplete for the course). Do not put yourself in this position. We also ask that you do not enable violations of academic policy. Do not post your code to Pastebin, GitHub, or any other publicly accessible site.

Collaboration Policy

You may do this assignment with one other person. If you are going to work together, form your group on CMS as soon as possible. If you do this assignment with another person, you must work together. It is against the rules for one person to do some programming on this assignment without the other person sitting nearby and helping.

With the exception of your CMS-registered partner, we ask that you do not look at anyone else’s code or show your code to anyone else (except a CS1110 staff member) in any form whatsoever. This includes posting your code on Ed Discussions to ask for help. It is okay to post error messages on online, but not code. If we need to see your code, we will ask for it.

Copyrighted Material

There is another Academic Integrity issue with this assignment: copyrighted material. Gameplay cannot be copyrighted. You can make a game that plays the same as another. This was established in the early days of gaming when Space Invaders lost its court case against Galaxian and Galaga. However, artwork in a game is copyrighted (and in the case of Space Invaders, even trademarked). So you should be careful about adding additional artwork to this game.

While there might be an argument for fair use – this is a class project – your instructor prefers that you avoid the copyright issue entirely. In general, you are only allowed to use copyrighted material if you have a license to do so. For example, many of the songs and sound effects in the NewGrounds library are available for you to use under an Attribution License. That means you are free to use it so long as you cite the source in your documentation (e.g. your header comments). This is okay. A license where you have to pay is not okay.

If you are in doubt as to whether you have a license to use something, ask us on Ed Discussions.

Extension Policy

This assignment is technically due Monday, December 9, which is the last day of class. That is the last day we are allowed to make this due. However, we realize that ALL professors like to load you up with work the last week of class. Because of this fact, minor extensions are possible.

We are allowing no-questions-asked extensions up to Wednesday, December 11. To get an extension, you must contact your lab instructor (do not e-mail the professor). Your instructor will assign you an extension in CMS. If you do not ask for an extension, you will be penalized for being late.

Assignment Help

While the code in this assignment is only a little bit more complicated than Assignment 6, the directions are more open-ended. We have tried to give you as much guidance in this document as we can. At the end of each task we have section called Reviewing the Task where we break down what we expect from you. But even then there is a lot to read in this document. We suggest that you start this assignment early, and that you go to office hours page on the first sign of difficulty.

In addition, you should always check Ed Discussions for student questions as the assignment progresses. We may also periodically post announcements regarding this assignment on Ed and on the course website.

Organization and Scope

This assignment is actually lognger Assignment 6. It historically a little over two weeks to complete. With the Thanksgiving break and the exam, this is how much time you are going to have. Once again the trick is to pace yourself. This can be finished by the end of classes, if you work a little bit every day (excluding the Thanksgiving break).

While there are no test cases this time, you should be able to figure out if everything is working simply by playing the game. There are no tricky “restore everything to how it was” like with Turtles. There are no nasty surprises lurking in the specifications. Just get the game working.

Assignment Source Code

To work on this assignment, you should download two files.

Only the first is a must download, as it contains the all of the source code necessary to complete the assignment. The second is a collection of demo code from the lecture on GUI programming. This sample code contains a lot of hints on how to approach some of the harder parts of this assignment, and we reference these samples throughout the instructions.

As with the imager application, this assignment is organized as a package with several files. To run the application, change the directory in your command shell to just outside of the folder planetoids and type

  python planetoids

In this case, Python will run the entire folder. What this really means is that it runs the script in __main__.py. This script imports each of the other modules in this folder to create a complex application. To work properly, the invaders folder should contain the following:

For the basic game, you only need to worry about the first three files: app.py, wave.py, and models.py. The other files and folders can be left alone. However, if you decide to add a new feature, it helps to understand how all of these fit together.

app.py

This module contains the controller class Planetoids. This is the controller that launches the application, and is one of three modules that you must modify for this assignment. While it is the primary controller class, you will note that it has no script code. That is contained in the module __main__.py (which you should not modify).

wave.py

This module contains the secondary controller class Wave. This class manages a single wave of planetoids. It works as a subcontroller, just like the example subcontroller.py in the provided sample code. It is another of the three modules that you must modify for this assignment, and the one that will require the most original code.

models.py

This module contains the model classes Ship, Asteroid and Bullet. These classes are similar to those found in the pyro.py demo in the provided sample code. If you want to add other model classes (e.g. power-ups), then you should add those here as well. This is the last of the three files you must modify for this assignment.

consts.py

This module is filled with constants (global variables that should not ever change). It is used by app.py, wave.py, and models.py to ensure that these modules agree on certain important values. It also contains code for changing your default level. You should only modify this file if you are adding additional features to your program

game2d

This is a package containing the classes you will use to design you game. These are classes that you will subclass, just like we demonstrated in lecture. In particular, the class Planetoids is a subclass of GameApp from this package. As part of this assignment, you are expected to read the online documentation which describes how to use the base classes.

Under no circumstances should you ever modify this package!

Sounds

This is a folder of sound effects that you may wish to use as part of your new feature. You are also free to add more if you wish; just put them in this folder. All sounds must be WAV files. While we have gotten MP3 to work on Windows, Python support for MacOS is unreliable.

Fonts

This is a folder of True Type Fonts, should you get tired of the default Kivy font. You can put whatever font you want in this folder, provided it is a .ttf file. Other Font formats (such as .ttc, .otf, or .dfont) are not supported. Be very careful with fonts, however, as they are copyrighted in the same way images are. Do not assume that you can include any font that you find on your computer.

Images

This is a folder with image files for the ship and asteroids. The GImage and GSprite classes allow you to include these in your game. You can use other images here if you wish. For example, you may wish to draw a background. Just remember to draw the background image first.

Data

This is a folder with JSON files that define a level. You will turn these into dictionaries and use them to place objects in your game. Understanding these files will be a major portion of this assignment. But you should look at them briefly to familiarize yourself with these files.

Assignment Scope

As we explained in class, your game is a subclass of GameApp. The parent class does a lot of work for you. You just need to implement three main methods. They are as follows:

Your goal is to implement all of these methods according to their (provided) specification.

start()

This method should take the place of __init__. Because of how Kivy works, initialization code should go here and not in the initializer (which is called before the window is sized properly).

update(dt)

This method should move the position of everything for just one animation step, and resolve any collisions (potentially deleting objects). The speed at which method is called is determined by the (immutable) attribute fps, which is set by the constructor. The parameter dt is time in seconds since the last call to update.

draw()

This method is called as soon as update is complete. Implementing this method should be as simple as calling the method draw, inherited from GObject, on each of the models.

These are the only three methods that you need to implement. But obviously you are not going to put all of your code in those three methods. The result would be an unreadable mess. An important part of this assignment is developing new (helper) methods whenever you need them so that each method is small and manageable. Your grade will depend partly on the design of your program. As one guideline, points will be deducted for methods that are more than 30 lines long (not including specifications or spacing).

You will also need to add methods and attributes to the class Wave in wave.py, as well as Ship, Asteroid, and Bullet in models.py. These classes are completely empty, though we have given you a lot of hints in the class specification. You should read all these specifications.

As you write the assignment, you may find that you need additional attributes. All new instance attributes should be hidden. You should list these new attributes and their invariants as single-line comments after the class specification (as we have done this semester). You do not need to enforce the invariants in the getters and setters, but you must must have them if the attributes are accessed by another class. For example, if the Wave class needs to check the velocity of a bullet, then you are going to need a getter for the velocity in the Bullet class.

Assignment Organization

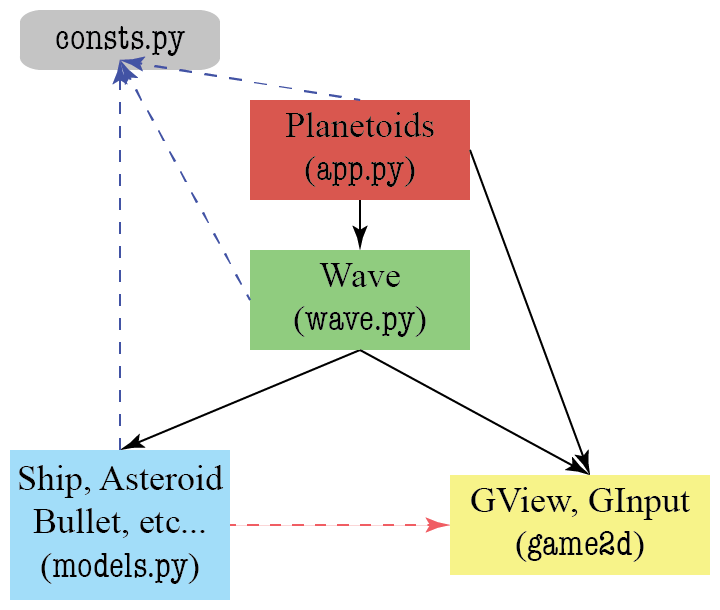

This assignment follows the model-view-controller pattern discussed in class. The modules are clearly organized so that each holds models, the view, or a controller. The organization of these files is shown below. The arrows in this diagram mean “accesses”. So the Planetoids controller accesses the view and Wave subcontroller. The Wave controller accesses the view and the models. This leads to an important separation of files. Planetoids is never permitted to access anything in models.py and Wave is never permitted to access anything in app.py. This is an important rule that we will enforce while grading.

You will notice that the models module needs to access the view because it needs the parent GObject to perform any drawing. In practice, we often like to separate the model and view to cut down on the number of arrows (less meetings between the various programmers). However, that would make this assignment a lot harder.

Fortunately, the view does not access anything (and should not be modified). This means there are no cycles in this architecture (e.g. A accesses B accesses C accesses A). Cyclical accesses are very dangerous and you have to be careful with them in large applications. Avoiding cycles is one of the reasons we draw pictures like the one below.

In addition to the four main modules, there is another module with no class or function definitions. It only has constants, which are global variables that do not change. This is imported by the models module and the two controllers. It is a way to help them share information.

When approaching this assignment, you should always be thinking about “what code goes where?” If you do not know what file to put things in, please ask on Ed Discussions (but do not post code). Here are some rough guidelines.

Planetoids

This controller does very little. All it does is keep track of the game state (e.g. whether or not the game is paused). Most of the time it just calls the methods in Wave, and lets Wave do all the work. However, if you need anything between games, like a paused message or a high score, this goes here. This is similar to the class MainApp from the demo subcontroller.py

Wave

This class does all the hard work. In addition to the initializer (which is a proper __init__, not start), it needs its own update and draw methods. This is a subcontroller, and you should use the demo subcontroller.py (in the provided sample code) as a template.

The most complex method will be the update and you will certainly violate the 30-line rule if you do not break it up into helpers. For the basic game, this method will need to do the following:

• Move the ship according to player input
• Move the asteroids relative to their velocity
• Wrap the ship and/or asteroids when they go off screen
• Fire a bullet from the player’s ship
• Move any bullets across the screen
• Resolve any collisions between a bullet and asteroid
• Resolve any collisions between a ship and asteroid

In our code, each one of these is a separate helper. You should think about doing this in your code as well.

The Models

The models just keep track of data. Most of the time, models just have attributes, with getters and setters. Think about the Image class from the previous assignment. However, sometimes models have additional methods that perform computation on the data, like swapPixel.

The models in this assignment are the game objects on screen: the ship, any asteroids, and any bullets. The classes Ship and Asteroid are subclasses of GImage, because we have images for them. Bullet objects will be simple circles and so it can be a subclass of GEllipse. We inherit methods and attributes from these classes that allow us to move these shapes about the screen, and to draw them. The primary reason we need to create subclasses is so that we can add a velocity attribute to each one. Asteroids was an early attempt at physics-based gameplay, and so all movement depends on object velocities.

If decide to add new features like scoring, you will probably need extra attributes in the Asteroid class to track point value. If you add UFOs or other enemies, you may also need additional model classes to display and track them. If you are in doubt about whether or not you need a new class, ask us on Ed Discussions.

Suggested Micro-Deadlines

You should start on this assignment soon as possible. If you wait until the weekend before this assignment is due, you will have a hard time completing it. If you work on a little bit of it every day or every other day, then you will enjoy it and get it done on time. We have also tried not to include both your Thanksgiving Break and the second exam in this assignment.

You should implement the application in stages, as described in these instructions. Do not try to get everything working all at once. Make sure that each stage is working before moving on to the next stage. Set up a schedule, but do not focus only on writing code. Leave time for learning things and asking questions.

We have provided you with a schedule of suggested milestone. This schedule ensures you will only work a little each day. However, to fit in the time alloted, this schedule does not leave any time for extra features. This is okay. You can still get a perfect score with no addition features. But if you want to add features you will either need to work faster than the recommended schedule, or ask for an extension. But whatever the case, do not add any new features until you get the basic game working. If you add extensions too early, debugging may get very difficult.

Overview of Planetoids

The layout of a Planetoids game depends on the level file you are using. We have included many different level files in the Data directory. The files easy1.json and easy2.json are easy games to help you test your application, while wave1.json is a little more challenging. The level that you use is defined by the variable DEFAULT_WAVE in const.py. You can also change the level at any time by specifying it when you run the game. For example, if you type

  python planetoids easy1.json

it will play the game with the level easy1.json as the DEFAULT_WAVE. Below is the set-up for the wave1.json to test out your game in the end.

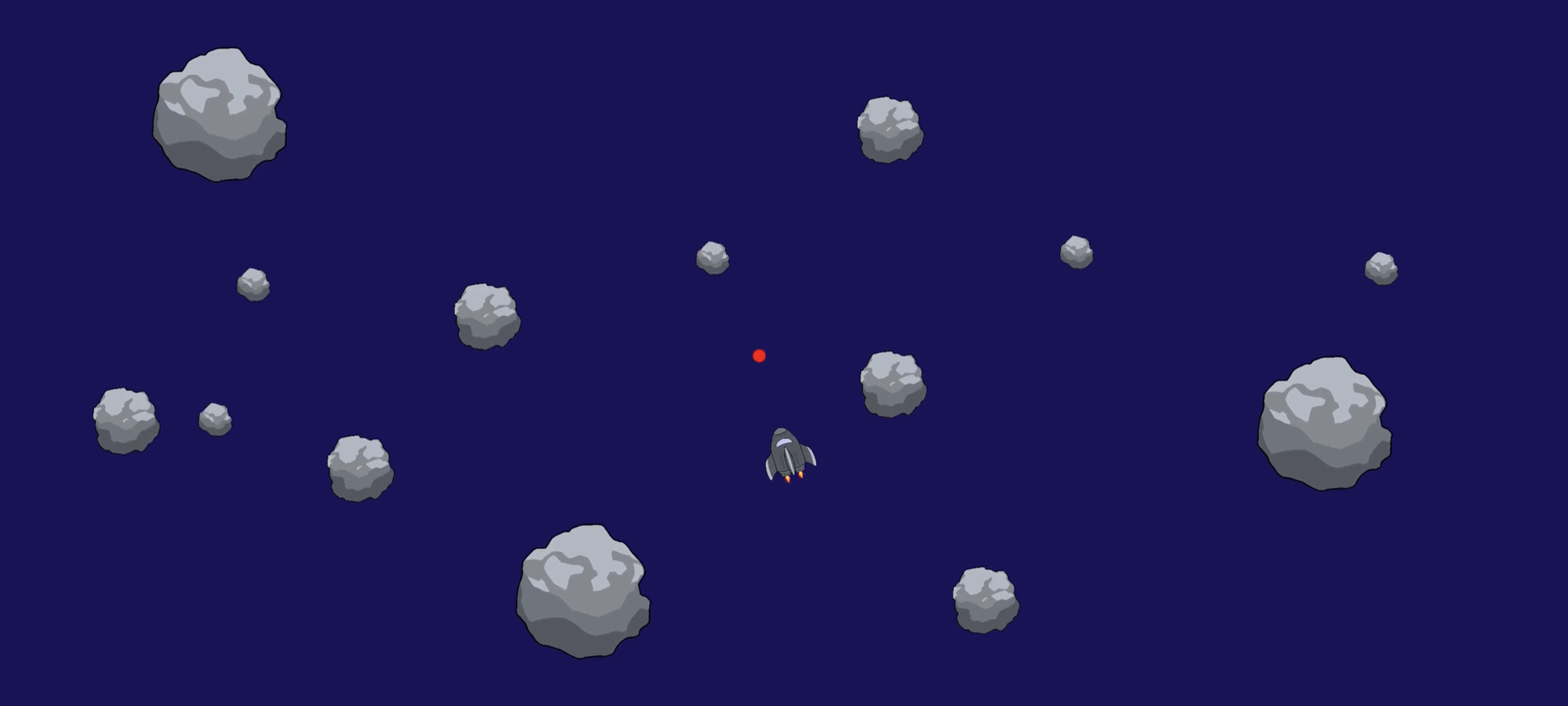

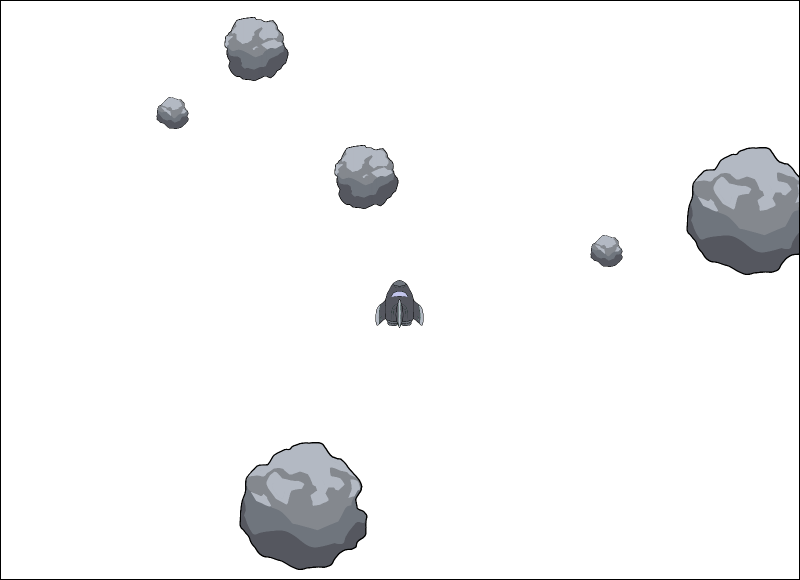

Starting Position

All of the asteroids have an velocity, represented as a vector. A vector looks like a point, in that it is an object with an x and y attribute. But instead of a location, it represents a magnitude and direction. If you are unfamiliar with vectors, we have created a short tutorial for you. At each animation frame, the velocity of the asteroid is added to its position, moving the asteroid. The velocity of a planetoid remains unchanged, until it is destroyed.

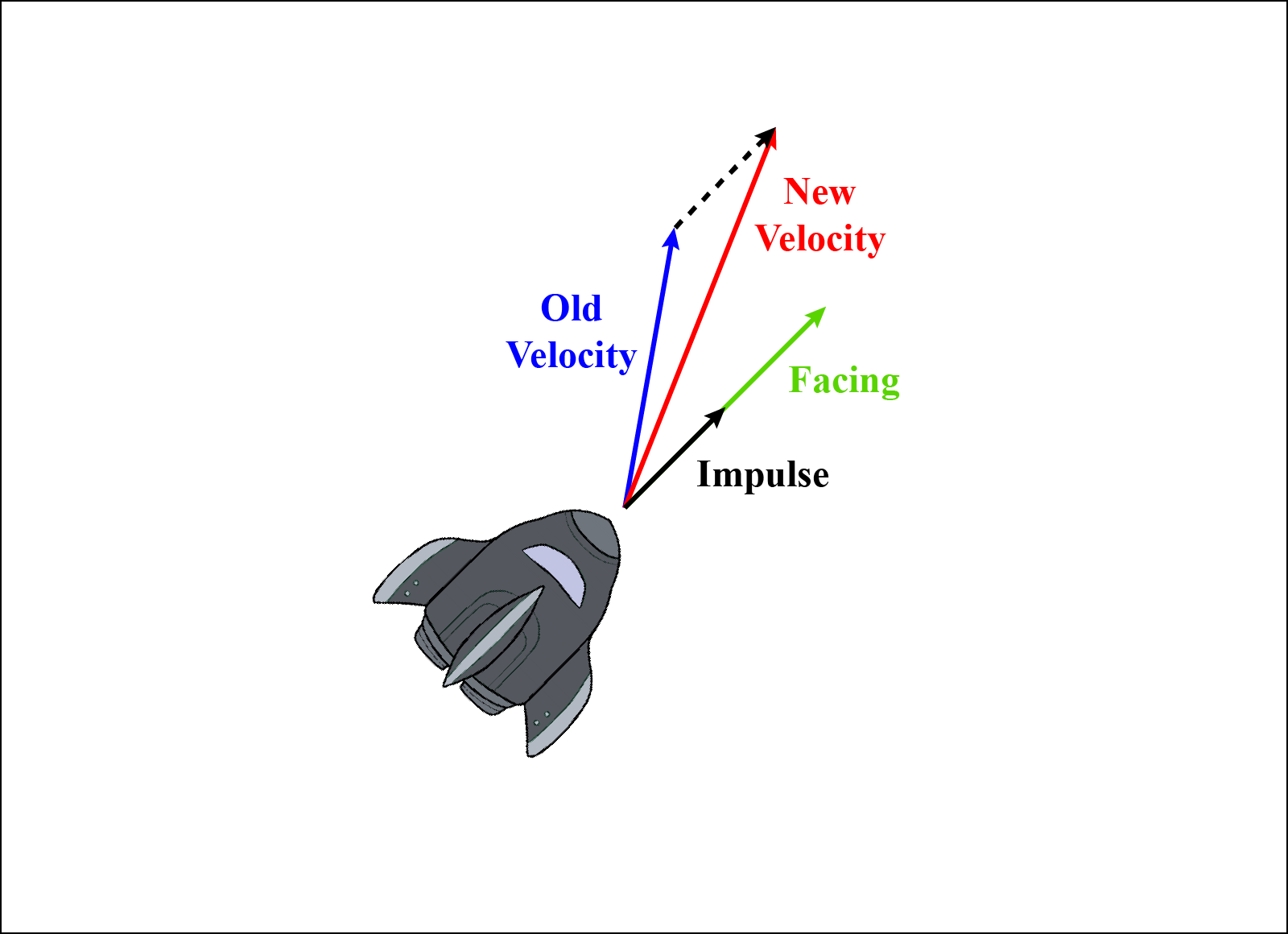

The player is able to move the ship to avoid the asteroids. The movement keys are the left, right, and up arrow keys. Pressing right will turn the ship in a clockwise direction while pressing left will turn it counterclockwise. Pressing up attempts to move the ship in the direction that it is facing. However, movement is not controlled directly. If you play Asteroids Reloaded, you will see that it fires the rear thrusters, pushing the ship in that direction. But that push has to counteract any movement the ship currently has (courtesy of Newton’s Laws). The same thing happens in Planetoids, though rocket animation is not part of this assignment.

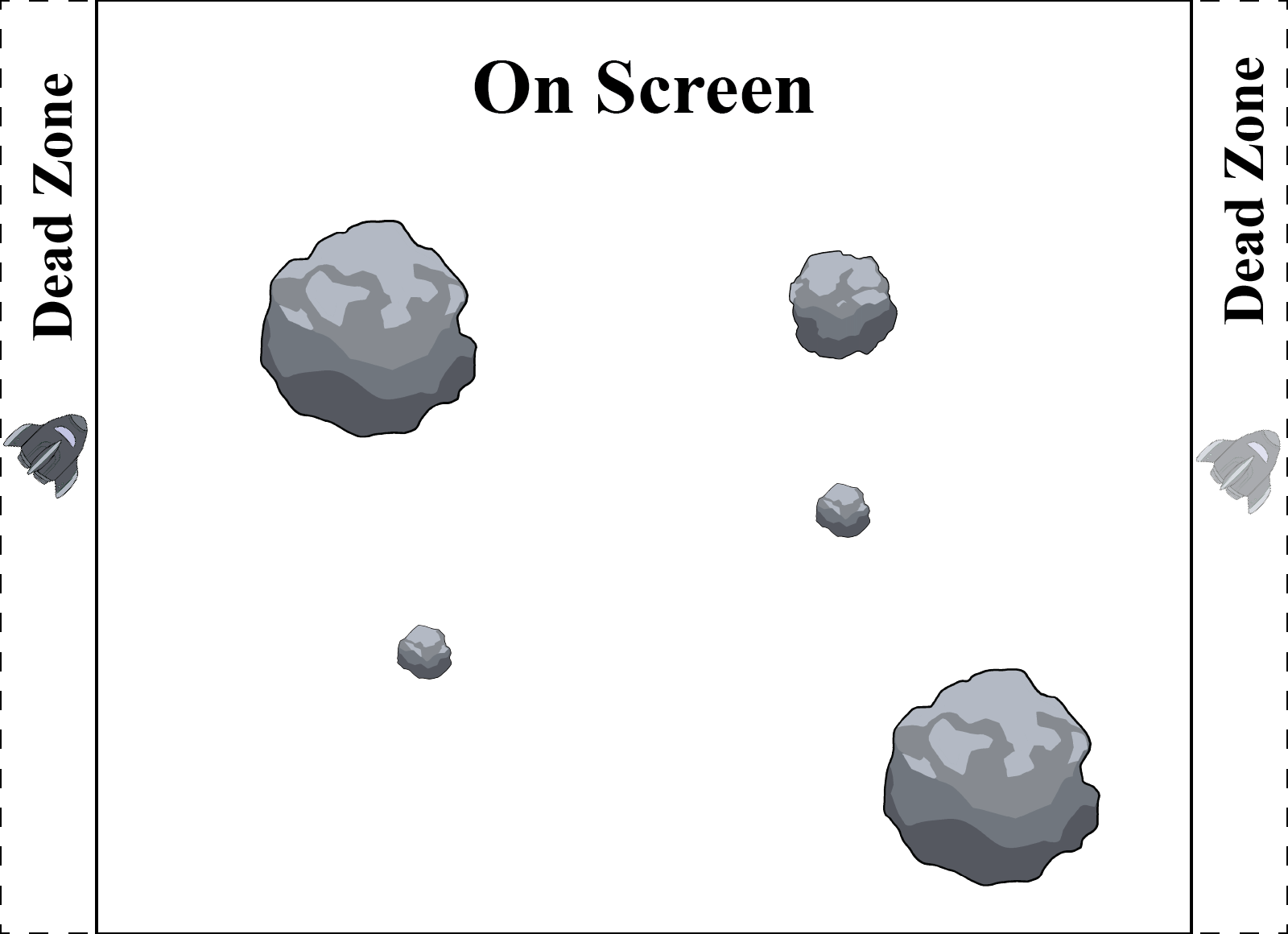

Planetoids is not actually set in space. It is set in a small pocket dimension where movement wraps around the screen. So if an object goesoff the top of the screen, it appears on the bottom. The same is true for the left and right edges. Topologically, this means that the world of Planetoids is on a torus (or a donut). This is shown in the illustration below

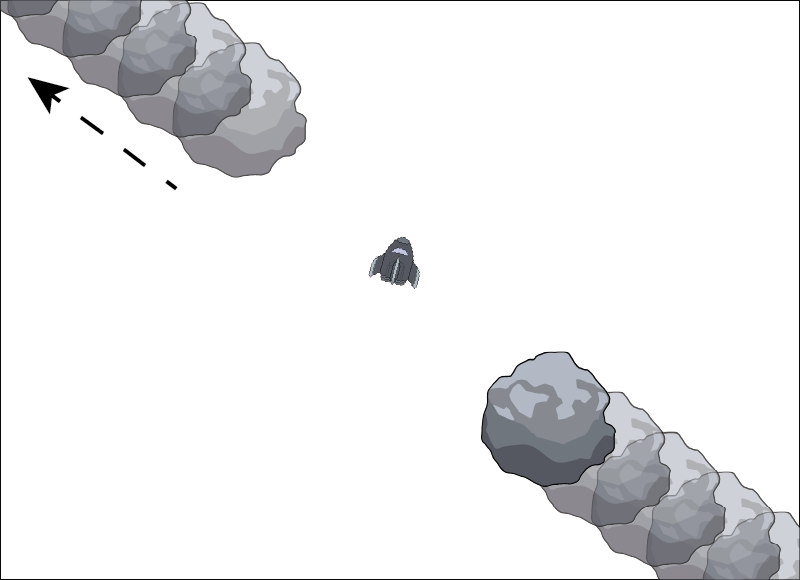

An Asteroid Wrapping Around the Screen

If the player collides with an asteroid, the ship is destroyed. To protect itself, the player can fire bullets. The bullet starts from the tip of the ship and moves in the direction that the ship is facing.

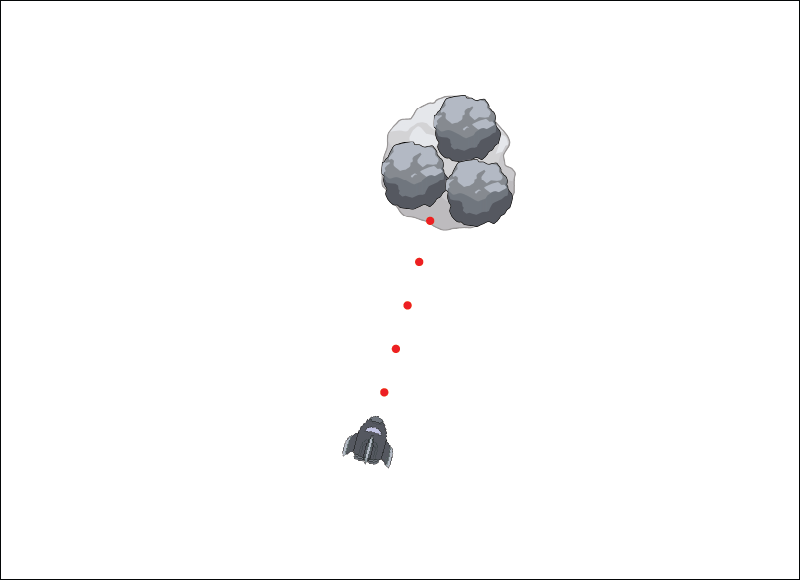

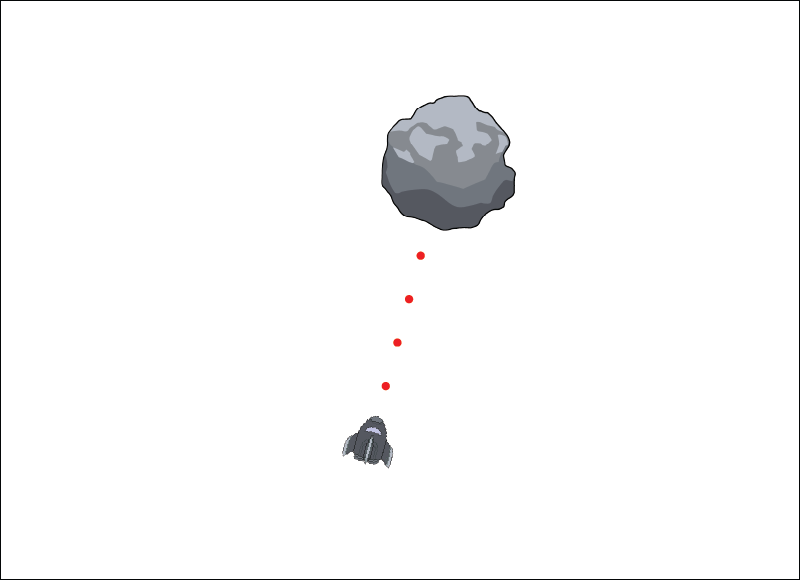

Bullet Trajectory from Ship Facing

If the bullet collides with an asteroid, it the asteroid is destroyed. Small asteroids are destroyed outright, while larger asteroids are replaced by three smaller asteroids (simulating the break-up of the asteroid).

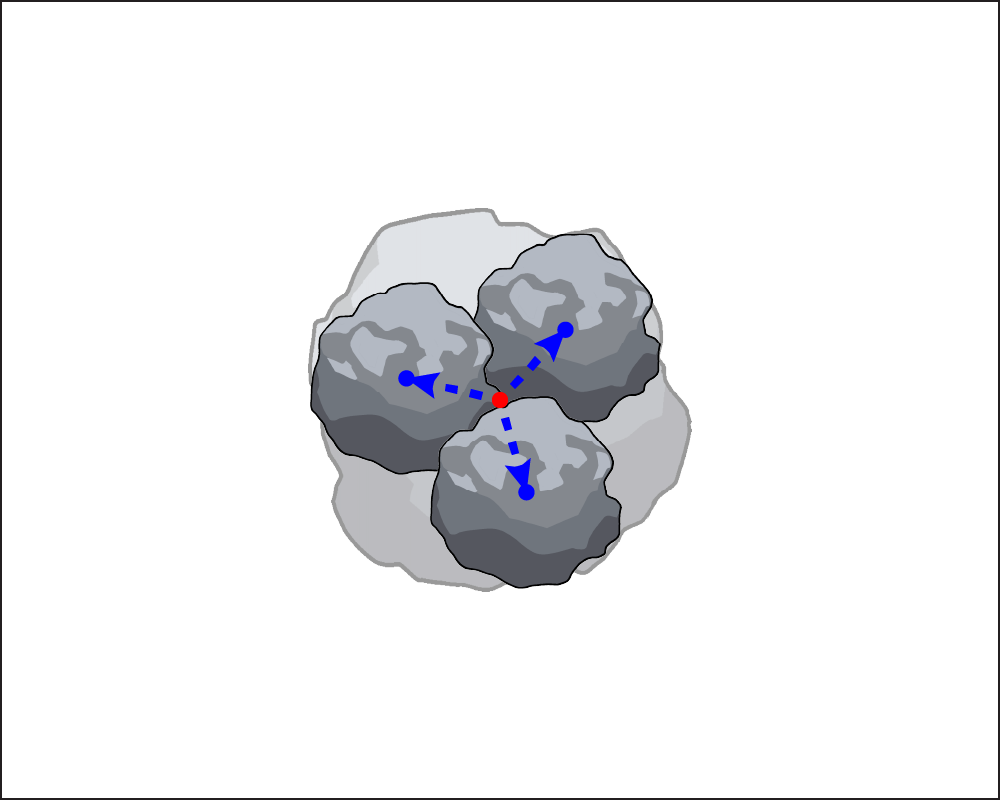

Breaking Up an Asteroid

In past versions of this assignment, a player has up to three lives, where one life is lost each time a ship is destroyed. If the player has any lives remaining when the ship is destroyed, the game will briefly pause before starting again. The wave continues until either the last planetoid is destroyed, or the ship is ship is destroyed and there are no lives remaining. In the first case, the player wins the game. Otherwise, the player loses. The video below shows this off.

With that said, we are tight for time this year, so we had to remove the three lives feature. In your assignment the player has only one life and loses as soon as the ship is destroyed. If you want to add extra lives, that is part of the extra features.

Game State

One of the challenges with making an application like this is keeping track of the game state. In the description above, we can identity several distinct phases of the game:

• Before the game starts, and the asteroid wave has not started
• When the asteroids are set up, but have not started to move
• While the game is ongoing, and the asteroids are drifting about
• While the game is paused (e.g. to show a message)
• While the game is creating a new ship to replace the old one
• After the game is over

Keeping these phases straight is an important part of implementing the game. You needthis information to implement update in Planetoids correctly. For example, whenever the game is ongoing, the method update should instruct the Wave object to move the ship. However, if the game has just started, there is no Wave object yet, and the method update should create one.

For your convenience, we have provided you with constants for six states:

• STATE_INACTIVE, before an asteroid wave has started
• STATE_LOADING, when it is time to create a new wave of asteroids
• STATE_ACTIVE, when the game is ongoing and the asteroid are moving
• STATE_PAUSED, when the game is paused to display a message
• STATE_CONTINUE, when the player is waiting for a new ship
• STATE_COMPLETE, when the game is over

All of these constants are available in consts.py. The current application state should be stored in a hidden attribute _state inside Planetoids. The states STATE_PAUSED and STATE_CONTINUE are only necessary if you are going to add code to support multiple lives, but the other states are all important. You are also free to add more states should you choose to add more features.

The rules for changing between these states are outlined in the specification of method update in Planetoids. You should read that in its entirety. However, we will cover these rules in the instructions below as well.

Level JSONs

All of the information about a game level is stored in a JSON file. You should remember what a JSON string is from the very first assignment. A JSON file is just a file that stores a very large JSON string. These JSON files are a lightweight way to store information as nested dictionaries, which is the standard way of sending complex data across the Internet.

The tricky part about JSONs is coverting the string (or file) into the Python dictionary. Fortunately, we have provided a tool that makes this part easy. The GameApp class includes a method called load_json which your Planetoids class will inherit. Simply specify the name of the JSON file. As long as that file is stored in the Data directory, this method will load this file and convert to a Python dictionary for you.

This means that working with level files is really all about working with a complex nested dictionary. To understand how these dictionaries work, look at the file easy1.json. This includes all of the features that you will need to implement for the basic game. The top-level dictionary has three keys:

• "version" : A float representing the level version.

This version is only relevant if you define your own levels. It is discussed in the section on additional features.

• "ship" : A dictionary defining the ship position and angle.

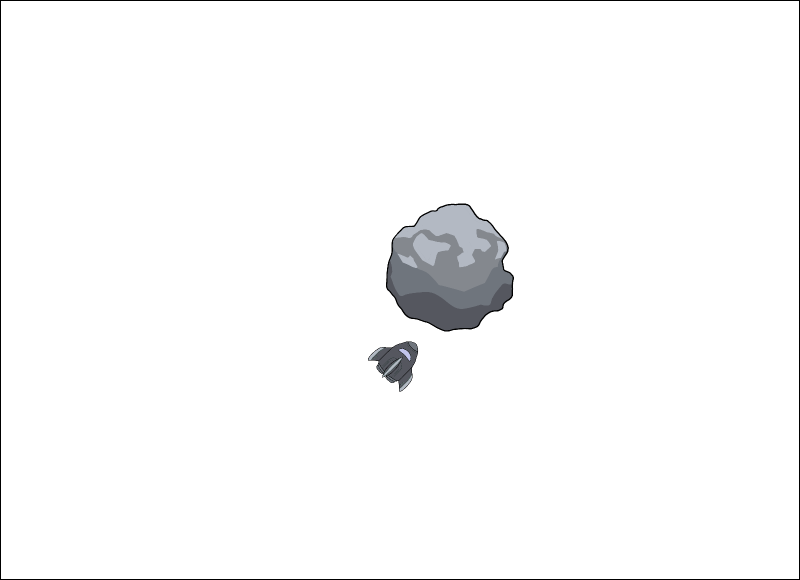

The starting ship position and angle can vary each level. The position is a 2-element list defining its pixel position on the screen. The angle is a measure of the angle of the ship counterclockwise from the x-axis. The measurement is in degrees. So a ship with an angle of 0 is facing due east, while an angle of 90 is facing straight up.

• "asteroids" : A list of dictionaries defining asteroids.

Each asteroid is defined by a dictionary with keys for "size:, "position" and "direction". The "position" value is the same as for the ship. The "size" is one of three values: "small", "medium", or "large". The "direction" defines the velocity direction,and is explained in more detail in the assignment instructions. However, if it is [0,0], this means that the asteroid is standing still.

If you understand all of these features, then you will have no problem completing this assignment.

JSON Assumptions

One of the preconditions for this assignment is that level files are properly formatted. That is, they are proper JSONs and they do not have any important keys missing. While it is okay for "asteroids" to have an empty list (that will be a very short wave), it is not okay for the "asteroids" key to be missing entirely.

It is not your responsibility to enforce that the JSON files are in the correct format. That is the responsibility of the level designer, who is typically a different person on the team than a programmer. However if you add any extensions to the game, then you will likely be designing your own level files. And if you make mistakes in your level files, you may cause your program to crash. Again, this is a problem with the level file and not the game itself.

The Basic Game

We have divided these instructions into two parts. This first part covers the basic things that you must implement just to get the game running. Afterwards, we talk about additional features you can put into your game. These extra features can earn you extra credit on this assignment.

You should focus most of your effort on the basic game. This is the bulk of your grade. If you do everything correct on the basic game, you can still earn a 100 on this assignment. The value of extra credit is typically limited to no more than 8 points. Furthermore, unless your features are incredibly innovative, we will not give you more than a 100, no matter how many things you have added.

Near the end of each task we have a section called Reviewing the Task where we summarize everything that we told you to do. Make sure you read this before writing any code.

Review the Constants

The very first thing that you should do is read the file consts.py. If you ever need a value like the size of the ship, the size of the game window, or so on, this is where you go. When writing code, you should always use the constants, not raw numbers (or “magic numbers,” as we call them). Magic numbers make your code hard to debug, and if you make a change (e.g. to make the ship bigger), you have no idea about all of the locations in your code that need to be changed.

With that said, you are welcome to change any of these numbers if you wish. You are also encouraged to add more constants if you think of other numeric values that you need. Anytime that you find yourself putting a number in your code, ask yourself whether or not it would make sense as a constant.

1. Create a Welcome Screen

We start with a simple warm-up to get you used to defining state and drawing graphics elements. When the player starts the application, they should be greeted by a welcome screen. If you decide to work on additional features, you can embellish your welcome screen to be as fancy as you wish. But for now, keep it simple. Your initial welcome screen should start with two lines of text.

Because the welcome message is before any game has started, it belongs in the Planetoids class, not the Wave class. You are already seeing how we separate what goes where.

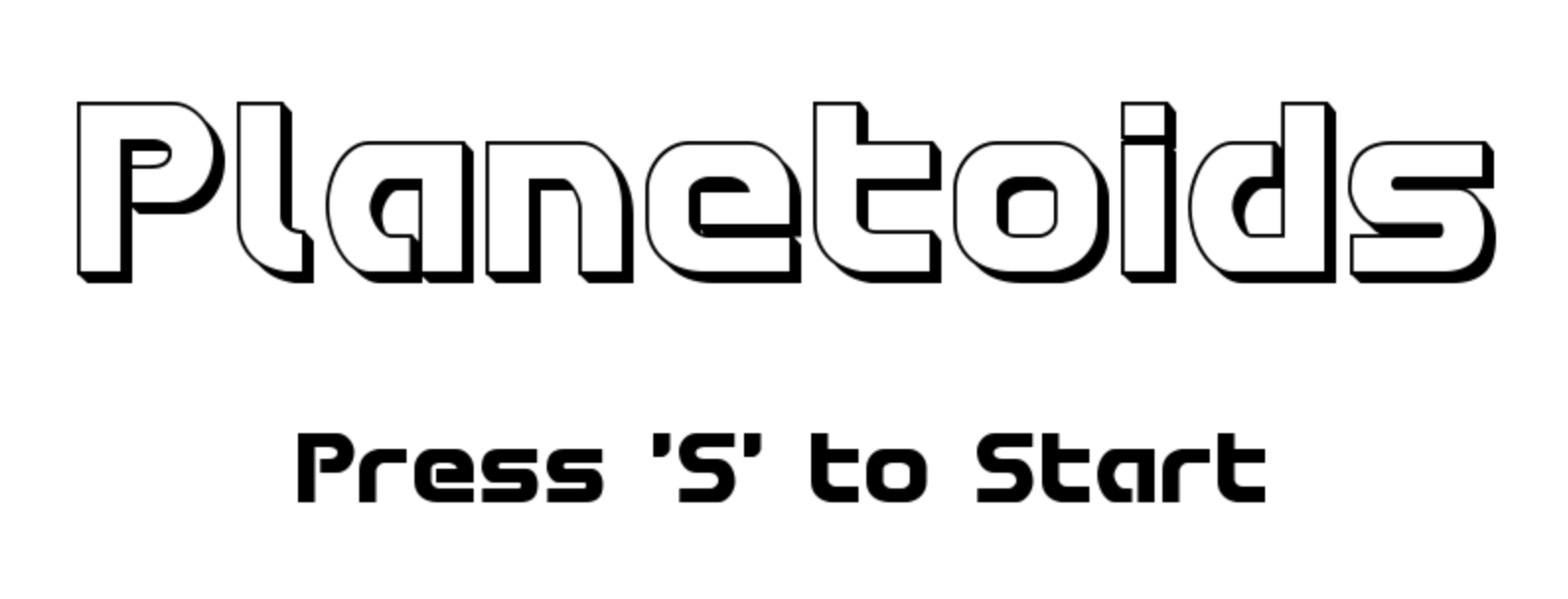

The text message will look something like the one above. It does not need to say “Press ‘S’ to play”. It could say something else, as long as it is clear that the user should press a key on the keyboard to continue. However, we recommend against allowing the user to press any key, since in later steps that will make it easy for the user to accidentally miss an important message.

To create a text message, you need to create a GLabel and store in it an attribute. If you read the class invariant for Planetoids, you will see two attributes named _title and _message. The title attribute is the logo of the game. The text attribute is for any messages to display to the player. The text is typically smaller, like a footnote. While we will never show the logo after the initial state STATE_INACTIVE, we will use the text attribute for messages throughout the game.

Since the welcome message should appear as soon as you start the game, it should be created in the method start, the first important method of the class Planetoids. When creating your message, you will want to set things like the font size and position of the text. If you are unsure of how to do this, look at the class MainApp from the demo subcontroller.py in the provided sample code.

As you can see from the documentation for GLabel and GObject, graphics objects have a lot of attributes to specify things such as position, size, color, font style, and so on. You should experiment with these attributes to get the welcome screen that you want. The key thing to remember is that – in Kivy – screen coordinates start from the bottom-left corner of the window (and not the center as was the case with the turtle). Note that x and y are the center of the label. If you want to place the left edge, use the attribute left instead of x.

When placing label objects, you do not always want to center them. Sometimes you would like the label to be flush against the edge of the window. For that reason we have attributes like left, right, top, and bottom. These are alternate attributes for x and y. They move the label in much the same way, but give you a little more control over the positioning.

One you understand how to position the label, it is time to think about your font choice and style. If you want to look exactlty like the picture above, we have some constants to help you in const.py. The top font is TITLE_FONT while the bottom is MESSAGE_FONT. Both are variations of the font Redline). The title has size TITLE_SIZE while the message has MESSAGE_SIZE. However, you are not constrained to these choices. You may chose a different font or font size if you wish, so long as it fits on the screen.

Drawing the Welcome Message

Simply adding this code to start is not enough. If you were to run the application right now, all you would see is a blank white window. You have to tell Python what to draw. To do this, simply add the lines

    self._message.draw(self.view)
    self._title.draw(self.view)

to the method draw in Planetoids. The (non-hidden) attribute view is a reference to the window (much like the Window object in Assignment 4). Hence this method call instructs Python to draw this text label in the window. Now run the application and check if you see your welcome message appears.

Initializing Game State

The other thing that you have to do in the beginning is initialize the game state. The attribute _state (included in the class specification) should start out as STATE_INACTIVE. That way we know that the game is not ongoing, and the program should (not yet) be attempting to animate anything on the screen. In addition, the other attributes listed (particularly _wave) should be None, since we have not done anything yet.

The _state attribute is an important part of many of the invariants in this game. In particular, we want your new attribute for the welcome message to have the following invariant:

• If the state is STATE_INACTIVE, then there is a welcome message with title and text.
• If the state is not STATE_INACTIVE, the _title attribute is None.
• If the state is STATE_ACTIVE, the _message attribute is None.

Does your start() method satisfy this invariant? Note the difference between the last two invariants. That will become important later.

Dismissing the Welcome Screen

The welcome screen should not show up forever. The player should be able to dismiss the welcome screen (and start a new game) when he or she presses a key. To respond to keyboard events, you will need the attribute input, which is an instance of GInput. This class has several methods for identifying what keys are currently pressed.

When using the attribute input, remember the issues that we discussed in class. The method update(dt) is called every 16 milliseconds. Checking if the key is down will return a lot of matches. You want to detect a key press which is the first time the key is held down. Remember the method ( is_key_pressed) to do this.

When you detect a key press, then you should change the state STATE_INACTIVE to STATE_LOADING. This will load a level file and start a new game. You are not ready to actually write the code to start the game, but switching states is an important first activity.

Invariants must be satisfied at the end of every method, so you need to assign None to both _message and _title now. This will require a simple change to method draw() to keep it from crashing (you cannot draw None). Once you have done that, run the application. Does the message disappear when you press a key?

Reviewing the Task

We have covered a lot in these instructions. It helps to have some a reminder of what you should doing. To finish this part, you are adding code to each of the start, update, and draw methods of Planetoids. In the method start, you should

1. Create an attribute for the title and assign it a GLabel
2. Create an attribute for the message and assign it a GLabel
3. Create an atttribute for the state and assign it to STATE_INACTIVE

In the method update you should

1. Check if the start key was pressed
2. Change the state to STATE_LOADING if the key was pressed
3. Ensure the application invariants are satisfied

Finally, in the method draw you should

1. Draw the title if it is not None
2. Draw the message if it is not None

Documenting your New Attributes

When working on the steps above, you may have needed to add new attributes beyond the ones that we have provided. Whenever you a new attribute, you must add it and its corresponding invariant as a comment after the class specification (these comments are the class invariant). Add it just after the comment stating ADD MORE ATTRIBUTES, to make it easier for the graders (and you) to find them. We will deduct style points for instance attributes that are not listed in the class invariant.

Pacing Yourself

This first part of the assignment looks relatively straightforward, but it gets you used to having to deal with controller state. Try to finish this part by Sunday, November 17, which is the Sunday after the assignment is posted. You will spend most of your time reading the online documentation (the actual code is not that long), but this will give you a solid understanding of how this application works. You will also have a lab the previous Thursday/Friday helping you with these topics.

2. Load the Level File

The state STATE_LOADING is going to last just one animation frame. During that time you are going to load the level file and create a Wave object. So for this activity you are going to write code in two different classes: Planetoids and Wave.

Loading a JSON file is easier than you think. There is a method (technically it is a class method) in GameApp called load_json, and Planetoids inherits this method. Simply call this method with the argument DEFAULT_WAVE. The method will return a dictionary and you are good to go. So from this point on, you will treat the level information like a dictionary.

By default, the starting level is wave1.json. You can go into consts.py to change this if you wish. Alternatively, you can test other levels by typing

  python planetoids levelname

So you can load the 'easy1.json' level simply by typing

  python planetoids easy1.json

Creating the Wave Object

Once you have loaded the JSON file, you want to create a Wave object and assign it to the attribute _wave in Planetoids. We have started the definition of the Wave class for you in wave.py. However, it does not do much, because we have not defined the initializer.

As the last step in this task, create an initializer for Wave. It should have a single parameter (other than self): the JSON dictionary containing all of the information about the level. Assign this to the attribute _data in Wave.

After you have created the Wave object, it is also time to change the state in Planetoidsto STATE_ACTIVE. As we said, STATE_LOADING only lasts on frame. You load the file and immediately switch, regardless of what keys the player presses.

Creating the Ship

There is a lot of information in the JSON dictionary. But for now we are only interested in the ship information. You will use this to make a new Ship object and display it on the screen.

While you have not yet completed the definition of class Ship yet, we have gotten you started in the module models.py. In particular, the class Ship is a subclass of GImage. That means it inherits all of its attributes and methods, including the initializer. Hence (unless you override methods to do otherwise), you create and draw the ship the same way you create and draw a GImage object.

To define an image, use the attributes x, y, width, height, and source to specify how it looks on screen. The first four attributes are just like GLabel, while source specifies an image file in the Images folder. As with the label, you can either assign the attributes after the object is created or assign them in the constructor using keywords. Keyword arguments work like default arguments in that you write param = value. See the online documentation for an example of how to approach this. In addition, one of the optional videos covers this topic at the very end.

The information about the ship can be found in the _data attribute. Use the key "ship" to access it. This will give you another dictionary. The key "position" is the ship position and "angle" is the ship angle. Create a new Ship object and assign it to the attribute _ship in Wave. Assign the x and y value according to the "position" value. Assign the angle attribute according to the "angle" value. For example, to access the angle, you would use the expression

self._data['ship']['angle']

Here self refers to the Wave, not the Ship, as it is the object with the _data attribute.

The source image of the ship should be SHIP_IMAGE. But you will need to resize this image to have the correct size. The width and height should both be twice SHIP_RADIUS defined in consts.py. If you do not set those values, this ship will be too big.

NOTE: This is a lot of steps to assign to the ship. To fit into the 30-line rule, you might want to create your own initializer for Ship and move the code there.

Drawing the Ship

Once again, creating a Ship object is not enough to draw it on the screen. But drawing the ship is a bit more complicated than drawing the welcome message. The ship is a (hidden) attribute in Wave. While the Planetoids code


  self._wave._ship.draw(self.view)

works (and you should try it out), it is not allowed. That is because the attribute _ship is hidden inside of the class Wave, and Planetoids is not permitted to access anything hidden in another class. We will take off style points if a class of one module ever accesses the hidden attributes of an object of a class in a different module.

This is the purpose of adding a draw method to class Wave. The draw method in Planetoids should call the draw method in Wave, and this in turn should call the draw method for the ship (defined in GObject).

However, only Planetoids has access to the attribute view, which is necessary for drawing. The class Wave cannot directly access any attributes in Planetoids. If a method in Wave needs an attribute from Planetoids, then Planetoids must provide that attribute as an argument in the method call. This means that the draw method in Wave needs to have view as a parameter, and the code in Planetoids should look like this.

  self._wave.draw(self.view)

Now the only access of something hidden is _wave, which is okay since it is inside of Planetoids (Planetoids can access its own hidden attributes). Notice this is very similar to how we draw GObject objects.

When you are done, you should be able to see the ship on the screen. The ship in wave.json is pointing straight up, while the ship in easy1.json is 45 degrees to the right, as shown below.

The Ship in easy1.json

Reviewing the Task

In this task, you are writing code in five different methods. You are adding code to the start and draw methods in Planetoids. You are also adding an initializer and a draw method to Wave.

Let’s start with the methods in Wave, as you need them first. In __init__ you should

1. Get the JSON dictionary from Planetoids as a parameter
2. Create an attribute called _data, assigning it the JSON dictionary
3. Create an atribute _ship for the Ship (GImage)
4. Assign the x and y Shipp attributes from json[‘position’][‘position’]
5. Assign the angle Shipe attribute from json[‘position’][‘angle’]
6. Assign the Ship width and height attributes as 2*SHIP_RADIUS
7. Assign the ship source attribute as SHIP_IMAGE

In the draw method for Wave you should just draw the ship to the window.

Now that we have Wave working, let’s move to Planetoids. In the start method for Planetoids, add an attribute for the wave. It will start out as None.

In the update method for Planetoids you should

1. Check if the state is STATE_LOADING (if not, skip the steps below)
2. Load the DEFAULT_WAVE as a dictionary using the method load_json
3. Create a Wave object, passing the dictionary as an argument
4. Change the state to STATE_ACTIVE

Finally, in the draw method for Planetoids, you should draw the Wave object if it is not None.

Pacing Yourself

There are a lot of classes working together now, but the code is still pretty straight-forward. The challenging part is understanding how everything fits together. This should not take you more than two days to figure out, so try to finish this part by Tuesday, November 19.

3. Animate the Ship

Now it is time to animate the ship. To do this, we will need to modify the Ship class to add some new attributes. In particular, you will need to add the following two attributes:

• _velocity: The direction and speed the ship is travelling
• _facing: The direction the ship is facing.

Note that these are not the same thing. Because of how ship movement works (by firing the thrusters), the ship can be facing backwards as it moves.

We recommend that these attributes both be Vector2 objects. This is class provided by introc, and indeed was part of assignment 2. Objects of this class represent a two-dimensional vector. If you do not know what a vector is, or only half-remember, we recommend that you look at our short tutorial. The advantage of the Vector2 class is that it has methods to make vector math a lot easier.

At this point, we highly recommend that you add a custom initializer to Ship so that you can add these attributes, and the ones that you initialized in the previous task. Remember to call super()so that you properly inherit the GImage attributes as well. At the start, the velocity vector should be zero. The facing vector depends on the angle of the ship. If $\theta$ is the angle of the ship counterclockwise from the x-axis, then the facing of the ship is defined as

However, remember that the Python functions cos and sin require the angle to be in radians, while the ship attribute angle is in degrees.

Turning the Ship

To turn the ship, you will need to take into account the player’s key presses. The ship only turns when the player presses (or holds down) a key to make it move. By default, we assume that the player will use the left and right arrow keys to turn the ship. However, if you prefer WASD controls or some other control scheme, that is okay.

To see how to turn the ship, you should look at the arrow.py demo from the provided sample code. This example shows how to check if the arrow keys are pressed, and how to use that to animate a shape. Note that this is actually easier than dismissing the welcome message. We do not care if a key press is the first one. The ship will continue to move so long as we hold down a key.

The ship movement takes place every animation frame. That is why you want to put it in the update method of Wave. Remember that this method must be called within the update method of Planetoids, or nothing will happen. Again, see the subcontroller.py demo from the sample code to understand what we are asking for.

To check the keyboard, the method update in Wave will need to access the input attribute Planetoids, which is an instance of GInput. Again, since Wave is not allowed to access any of the attributes of Planetoids, that means you need to pass input as an argument in this method call.

When the player presses left, the ship should turn counterclockwise. To do that, add SHIP_TURN_RATE to the angle. When the player presses right, turn clockwise by subtracting this value from the angle. You are free to change this value in consts.py if you want to make turning faster or slower.

When you update the angle, you also need to update the facing vector as well (using the formula above). For this reason, we like to add a method called turn to the ship class that both 1. updates the angle and 2. updates the facing.

Applying an Impulse

One of the challenges of this game is that the ship must obey Newton’s First Law of Motion. Once the ship starts moving, it continues moving at that speed in a straight line. You can only change this by applying a force, which is caused by the ship’s rear thrusters. While we will not be drawing the rear thrusters (that is an additional features), we will be modeling the affect of this force.

Like velocity, force is represented by a vector. However, force has different units than velocity, as it is mass times acceleration. But if the force does not change over time, and the mass does not change either, we can compute an impulse from the force. An impulse is force times time, and it creates a vector that is added to the ship’s velocity to get the new velocity for this animation frame.

Applying an Impulse

We are not going to get into any complicated physics for this assignment. So to compute the impulse for the ship thrusters, simply multiply the _facing vector by the value SHIP_IMPULSE. If the player is pressing the up key, then add this to _velocity attribute to get the new velocity. Otherwise, leave the velocity unchanged. The Vector2 class has implemented the methods __add__ and __mul__ to make this step very easy.

However, there is one more important detail. We do not want your ship to reach light speed. So we are going to put a cap on the velocity. The ship speed (which is the length() of the velocity vector) can never exceed SHIP_MAX_SPEED. If that happens, you should replace the velocity with one in the same direction, but a speed of SHIP_MAX_SPEED. The simplest way to do this is to normalize the vector (making it a unit vector) and then multiply that vector by SHIP_MAX_SPEED. Once again, Vector2 has methods that make this easy so you do not have to do the math on your own.

Moving the Ship

Moving the ship is now easy. All you do is add the velocity to the ship position to get the new position (we assume that each animation frame is one time unit). Make sure that you do this after you update the velocity with the thruster impulse.

Do this and try out your ship. If you can fly about the screen, you have succeeded. Of course, you may find yourself flying offscreen. That is okay. You will fix that problem in the next step.

Take all together (turning the ship, applying an impulse, and moving the ship), this is not that hard of activity, provided you understand the arrows.py demo in the provided sample code. The impulse computation may be the hardest part, but again, everything you need is provided by the Vector2 class.

With that said, some people will find that they cannot get the ship to move, even after properly adapting the code from arrows.py. If your ship refuses to move, add a watch statement to the draw method of Wave. Print out the id (the folder name) of the ship. Run the game and look for this print statement. What you see will (hopefully) identify your bug.

The print statement never appears: In this case, you have forgot to call the update method for Wave from Planetoids. Make sure Planetoids has this line of code in its update:

    self._wave.update(self.input)

The ship id keeps changing: In this case, you are accidentally reseting the Wave object each frame. Go back and look at the instructions for loading a level file to see how to stop this.

The ship id is constant: If this is true and the ship still will not move, we have no idea what your problem is. It is something unique. Please see a consultant immediately.

Reviewing the Task

At a minimum, this task requires you to put code in Planetoids and Wave. To meet the 30-line rule, you may wish to pull out some code and put it into Ship, but we will not tell you how to do that.

In the update method of Planetoids you simply call the update method in Wave, remembering to pass it any input (e.g. what keys are pressed).

In the update method of Wave, you should

1. Adjust the ship’s angle if the left or right arrows are pressed
2. Compute the ship thrust if the up arrow is pressed
3. Add the ship thrust to the velocity
4. Limit the ship’s speed if it is going too fast
5. Add the velocity to the position

Adjusting the Constants

The movement of the ship is controlled by three constants: SHIP_TURN_RATE, SHIP_IMPULSE and SHIP_MAX_SPEED. Smaller values make the ship feel more sluggish. Larger values make the ship feel more repsonsive – if perhaps harder to control. Finding the right values is a matter of trial-and-error. We have chosen values that we liked. However, if you do not like them, you are free to change them.

If you do want to change these values, you must change them in the file consts.py. Remember, we do not want any magic numbers in this assignment. All constants go in one place. This also allows us to change back to our values if it makes it easier to grade the assignment.

Pacing Yourself

This is the first tricky part of the assignment. We recommend that you finish this by Thursday, November 21, which is well into the first week. This is the first place were students are likely stuck, and you can take advantage of the open office hours on that day (there are no lab sections that Tuesday).

Because this is the first major hurdle of the assignment, once you complete this task, you can be confident that you will be able to complete the rest of the assignment. Enjoy your Thanksgiving Break, and be prepared to start again when you get back.

4. Wrap the Movement

Eventually the ship is going to go offscreen. When that happens, we want to wrap it back around to the other side. So objects going offscreen to the left should come back around on the right, and objects going offscreen to the top should come back around to the bottom (and vice versa).

To simplify this problem, we are going to break it up into two parts.

Wrapping Horizontal Movement

First, we are going to solve the problem of horizontal wrapping. This is what happens when the ship goes offscreen either on the left or the right. Naively, the way to do this is to look at the x position of the ship. If it is less than 0, set it the width of the window (moving it to the other side). If it is greater than the width, set it to 0.

However this solution causes a major problem: “snapping”. The x attribute is the center of the object. So we will see half of the object immediately disappear on one side, and the other half teleport in on the other side. We want the movement to be smooth.

We could try to solve the snapping problem by using attributes left and right instead of x. If the left attribute is fully off the right of the screen, we set the right attribute to 0. And similarly if the right attribute is less than 0, we set the right attribute to the width. This gets rid of snapping and the movement looks smooth. The problem is that the concept of left and right only work if the ship is not rotating. Which it is doing all the time.

We want a solution that eliminates snapping but also allows us to rotate the ship. The solution is to have a dead zone. This is a little bit of a distance that all objects are allowed to go offscreen. The x value is allowed to be as low as -DEAD_ZONEand as high as GAME_WIDTH+DEAD_ZONE. When the x attribute crosses this threshold, then the object should wrap around to the other offscreen edge. Note that this distance is GAME_WIDTH+2*DEAD_ZONE as we have a dead zone on each side. We either add or subtract this value from x, depending on the direction the ship is moving.

The Horizontal Dead Zone

This all sounds harder than it is. You can accomplish all of this with a few if-statements.

Wrapping Vertical Movement

To wrap the ship vertically, we do the same thing for the y coordinate. The dead zone is the same size. The only difference is that we use GAME_HEIGHT instead of width. Once again, your code is just a few if-statements

The only thing to keep in mind is that it is possible for the ship to wrap both horizontally and vertically at the same time. This occurs at the corners. Make sure you write your if-statements to make this possible. And then test it out by flying your ship about the screen.

Reviewing the Task

This really is just a set of if-statements. Test if the ship is outside the deadzone, and if so, move the ship to the other side of the screen.

Pacing Yourself

While it takes a while to wrap your head around this (pun intended), the code is very simple. You should be able to do this by Saturday, November 23, the weekend before Thanksgiving Break. If you are struggling with this task, use the open office hours that will be available the Tuesday before break.

5. Add the Asteroids

Now that you have the ship working, it is time to place the asteroids and animate them on screen. Asteroids move very much like the ship. They have a velocity that is added to the position each frame, and they wrap about the screen. The only difference is that the velocity of an asteroid can never change. This means that if you have written your code properly, breaking it up into helpers, you should be able to use those helpers for asteroids as well.

Placing the Asteroids

The class Wave should have an attribute _asteroids that contains a list of asteroids. In the initializer for Wave you should make this attribute and fill it with Asteroid objects.

For now, you can work with the existing Asteroid class. It does not have a custom initializer. But like Ship, it is a subclass of GImage and so already has all of the attributes that we need other than velocity (which we will add later). In particular, we can set the position, the source image, and the width and height of that image.

To get the information about the asteroids, we need to look at the JSON dictionary in the _data attribute. The key "asteroids" has a value that is a list of dictionary objects. These dictionary objects define an Asteroid object in the same way that the ship dictionary defined the Ship object.

Each asteroid dictionary has three keys: "size", "position", and "direction". You can ignore "direction" for now. The key "position" is exactly the same as it was for the ship. So the only thing different is the "size" key.

The value for the "size" key should be one of "small", "medium" or "large". Inside of the file consts.py we have different constants for each of these groups. They all have different images, different sizes, and different speeds. For example. SMALL_IMAGE is the image for a "small" asteroid, while LARGE_IMAGE is the image for a "large" asteroid.

Fill the list _asteroids with Asteroid objects, using these constants to define the image and size. When you are done, remember to update the draw method in Wave to draw the asteroids. You can draw the asteroids either before or after the ship; it does not matter. If you do everything correctly, the level wave1.json should look like the image below.

Asteroids for Level wave1.json

Customizing the Asteroid Class

To do anything more with the asteroids, we need to add some custom attributes. An asteroid needs to remember its size and its velocity, so you will need attributes for these. Add an __init__ method to Asteroid that creates these attributes.

The only tricky part of this step is the velocity. You will note that the value in the JSON file is not called velocity, but "direction". Recall that velocity is defined as a direction and magnitude (or speed). The speed of an asteroid is determined by its size – SMALL_SPEED, MEDIUM_SPEED, or LARGE_SPEED. So you need to combine the direction and speed by converting direction into a unit vector and multiplying it by the speed.

There is one exception to this rule about the velocity. Some asteroids, such as the one found in easy1.json have direction [0,0]. If you attempt to normalize this vector, the program will crash (you cannot normalize zero vectors). Any such asteroids should have the zero velocity, indicating that they are stationary.

In addition to the initializer, you may want getters for these attributes, so that you can access them in Wave. However, neither the size nor velocity of an asteroid will ever change, so you do not need setters.

Animating the Asteroids

Animating the asteroids is the same as the ship. For each animation frame, add the velocity to the position to get the old position. Asteroids wrap just like the ship does, so you can use the same DEAD_ZONE code for the asteroids. The only difference is that _asteroids is a list of Asteroid objects, so you will need to loop through this list to animate them all.

Once you complete this, you should see the asteroids moving about the screen. They will pass harmlessly through the ship. We will worry about collisions later.

Reviewing the Task

There is a lot to do in this task, but a lot of it (potentially) reuses code that you have used before. In particular, you need to

1. Get the list of positions, directions, and sizes from the JSON dictionary
2. Create a list of Asteroid objects with those positions, directions and sizes
3. Animate the Asteroid objects by adding the velocity to the position
4. Use the dead zone to wrap the Asteroid objects about the screen

Pacing Yourself

Try to finish this part by Tuesday, November 26, which is the day before Thanksgiving Break. That allows you to take advantage of the open office hours should you need any help. It will also put you on track for finishing the assignment while still being able to study for the exam.

6. Fire Bullets

Even though the asteroids are not a threat (yet), we need to give the ship a chance to defend itself. The player can fire a bullet by pressing the space bar. In game2d this is referred to as the key "spacebar" in the method is_key_down or is_key_pressed.

Placing the Bullet

The Bullet class is a subset of GEllipse, not GImage. While you might want to add fancy graphics for the bullets in your addition features, the base game draws them as circles. The attributes for a GEllipse are exactly the same as GImage, except that there is no source attribute for an image. Instead, you use the fillcolor attribute to set the color, with BULLET_COLOR as the value.

The only challenge at this step is placing the bullet. The bullet should be placed at the tip of the ship. To find the tip of the ship, taking the facing vector (which is a unit vector), multiply it by SHIP_RADIUS, and add this vector to the ship position (which is the center of the ship).

Write code that adds a bullet every frame the user is pressing the space bar. Do not worry about whether the space bar was pressed last animation frame (yet). The bullet should be added to the attribute _bullets in Wave, which is a list of bullet objects. Remember to initialize this list as empty in the initializer for Wave if you have not already done so.

Finally, you need to draw the bullets in the list, just like you drew the asteroids. Test out your code by firing while spinning your ship in a circle. You should be able to create a ring about your ship, as shown below.

Non-Moving Bullets With Continuous Shots

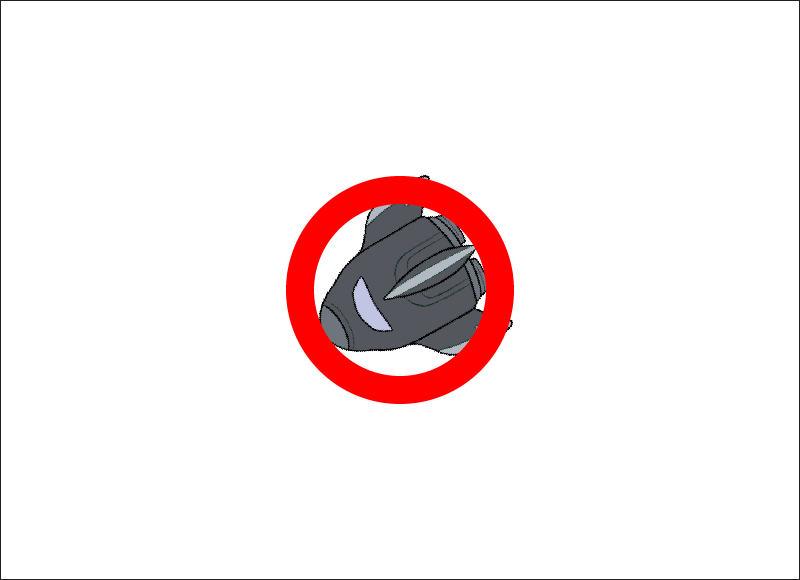

Timing the Shots

We do not want to create bullets every frame. That would create an solid stream of bullets and make the game too easy. But we do not want to have to force the player to release the space bar to fire again. Instead, we want to fire the bullets as long as the player holds the space bar down, but only create bullets at specific frames.

The solution is to implement a “rate of fire”. You need to create an attribute in Wave that counts the number of frames since we last fired a bullet. This is set to zero every time a bullet is generated. Every frame you add one to this attribute.We only create a bullet if the space bar is held down and this attribute is equal to or more than BULLET_RATE, defined in consts.py.

Add this change and trying spining your ship while firing. You should see gaps in the ring as the ship takes time to reload.

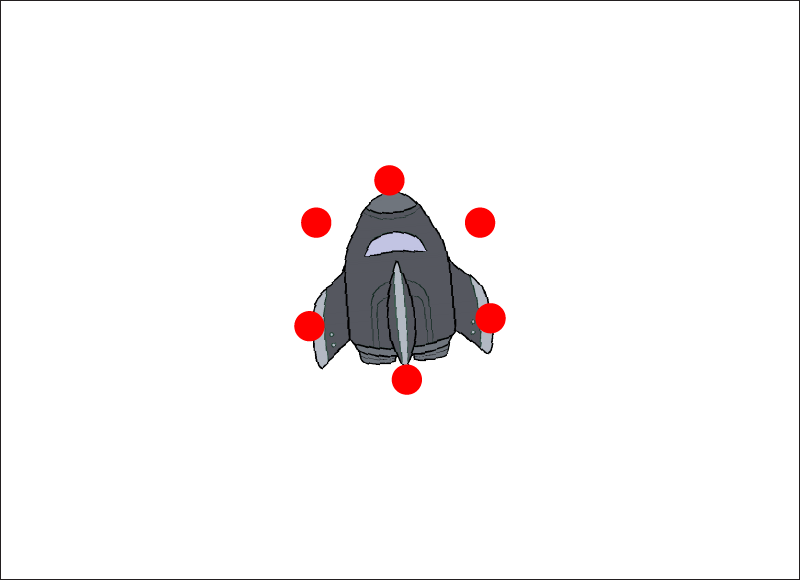

Non-Moving Bullets With Timed Shots

Customizing the Bullet Class

The only attribute that a bullet needs is velocity. However, once again, velocity is not included in the GEllipse class, so we will need to add this. As with Ship and Asteroid, make a custom initializer that sets the velocity of the bullet.

The velocity of the bullet is set when it is fired. The velocity is the facing vector of the ship (which is a unit vector) multiplied by BULLET_SPEED. As with asteroids, the velocity of a bullet never changes.

Animating the Bullets

We animate bullets just like we do asteroids. For each animation frame, add the velocity to the position to get the old position. The only difference is that bullets do not wrap. If a bullet ever travels outside of the dead zone, it is destroyed. That means you should remove it from the list _bullets. This keeps bullets from traveling forever.

To destroy bullets, remember that you should never modify a list that you loop over with a for-loop. You need to do this with a while-loop. See the demo pyro.py from the provided sample code for an example of how to do this with the rocket objects.

Reviewing the Task

Once again, the steps to carry out here are to

1. Detect if the spacebar is down and if it is time to fire a new bullet
2. Create a new bullet at the tip of the ship
3. Give the bullet a velocity of BULLET_SPEED in the direction the ship is facing
4. Animate the bullet by adding the velocity to the position
5. Delete the bullet if it ever goes outside the dead zone

Distribute these about the classes as you see fit.

Pacing Yourself

We recommended that you work on the previous parts of this assignment before the Thanksgiving Break. When you get back from break, it is time to start thinking about the exam. So we need to give you some time to do that.

With that said, you still need to finish this assignment by the deadline. So we recommend that you complete this part by Friday, December 6. That is the day after this the exam. In our experience, this task can take up to two days at this point, so this just means working on the assignment on Monday, studying for the exam until Thursday, and then working on it again on Friday.

Once you have this done, you are almost there. There is only one last major step to the game.

7. Process Collisions

You should now have everything flying about the screen. But everything feels pretty useless. The asteroids are not a threat. And the bullets do nothing. It is time to give the game some bite. We need to detect collisions and remove objects from the game.

In this activity, you are going to detect two types of collisions: asteroid-ship collisions and asteroid-bullet collisions. Asteroids past each other harmlessly (this is space, after all), and a the ship can never be hurt by its own bullets.

The common factor in all these collisions are the asteroids. So in this section we will talk about how to collide something with an asteroid. Your code in Wave should loop over all the asteroids and detect any object – ship or bullet – that collides with each asteroid

Detecting Collisions

When we sized the ship, asteroids, and bullets, we did it by giving them a radius. That is a hint that we are going to treat everything in this game as a circle. Obviously the images are not perfect circles, not even the asteroids. But they are close enough for this assignment.

Circles are nice because it is super easy to detect if they collide with each other. Compute the distance between the two centers. If this distance is less than the sum of the radii of the two circles, they must overlap. You can see this in the image below.

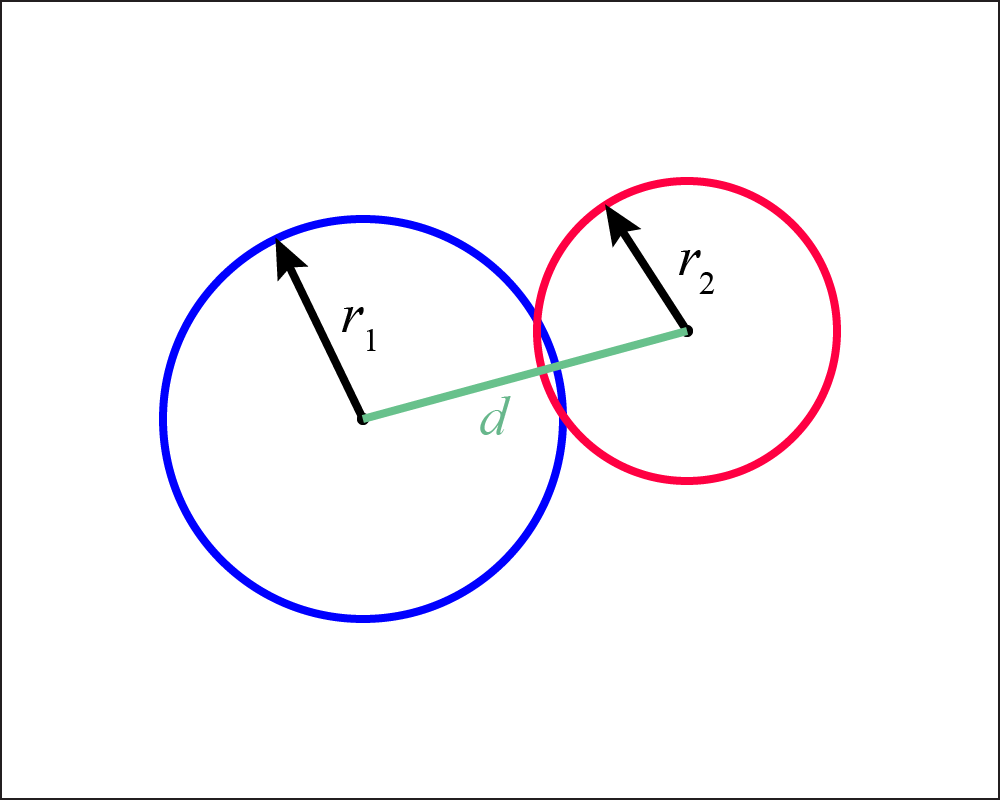

Calculation for Overlapping Circles

Resolving Collisions

When two objects collide, they are destroyed. Both the asteroid and the bullet and/or ship. In the case of an asteroid or bullet, this means removing the object from the appropriate list. In the case of the ship, this means setting it to None. Because a None ship can cause a lot of problems with the code in Wave, you may want to add an if-statement to update that skips over everything if the ship is None.

Removing an asteroid or a bullet from a list is easier. But if you have studied the demo pyro.py from the provided sample code you may have noticed that a lot of times it is easier to delete objects in its own loop, after all the collisions are processed. This is okay. However, an important rule is that each object may only be involved in one collision. If a collision destroys an object, then the object should be ignored from future collision computations if you do not delete it right away.

We recommend that you test your code pretty thoroughly after this step. With this code you should be able to destroy all the asteroids on screen. If the game is too hard for you, think about reducing the BULLET_RATE so you can fire more often.

Breaking Up Asteroids

One of the challenges of asteroids is that one bullet is often not enough. This is why we have asteroids of different sizes. If the asteroid is small, then the bullet will destroy it. However, if it is large or medium, the bullet will only break it up into smaller asteroids.

This means that, at the same time you remove a medium or large asteroid from the list, you will need to add more asteroids to the list, replacing them. These asteroids should not be including in any collision calculations. They are not allowed to collide with anything until the next animation frame.

Each large or medium asteroid should be replaced with three asteroids of the next smaller size. So a large asteroid produces three medium asteroids, and a m edium asteroid produces three small asteroids. To calculate the placement of these asteroids, you need the collision vector. If the collision is with a bullet, then this is the unit vector for the bullet velocity. If this collision is with the ship, it is the unit vector for the ship velocity, unless the ship is standing still. In that case, we use the facing vector of the ship instead.

Given the collision vector, we need to compute two other vectors. Each to these vectors should be a 120° rotation of the collision vector, in either direction. We call these three vectors the resultant vectors. They are shown below.

Resultant Vectors for a Collision

As we explained in the tutoral, we rotate a vector $v = \langle v_x, v_y \rangle$, we let $\theta$ be the angle of rotation in radians and compute

We working with this formula in Python, we need to convert 120° to $\frac{2\pi}{3}$ in radians. In addition, all of the resultant vectors are unit vectors, so remember to normalize them if you have not done so.

Once you have the resultant vectors, it is time to place the three asteroids. Each asteroid is associated with one of the resultant vectors. The asteroid should be placed so that its center is the result of multiplying its (new) radius times the resultant vector and adding that to the center of the old asteroid. In addition, the velocity of the asteroid is the resultant vector times the asteroid speed. This is shown below.

Calculating the New Asteroid Positions

Once you have completed this, you are effectively done with the game.

Reviewing the Task

There are essentially two collisions types: asteroid-bullet and asteroid-ship. To do the later, you will loop over all asteroids and test for a collision with the ship. To do the former, you have a nested loop where you loop over asteroids and over bullets, comparing each one.

The actual collision test is the same whether it is asteroid-bullet or asteroid-ship. You do the following:

1. Add the two radii of the circle-like objects
2. Compute the distance between the two centers
3. Mark a collision if the distance is less than the radii sum

If a bullet or ship collides, it is deleted. If an asteroid collides, it is only deleted if it is the smallest asteroid. Otherwise, we

1. Compute the velocity vector at the point of impact
2. Compute the three results vectors and put them at the asteroid center
3. Add a smaller asteroid along each resultant vector, radius amount from the center
4. Assign each small asteroid a velocity along the resultant vector

Pacing Yourself

It is critical that you finish this part by Sunday, December 8. This is the last hard part of the assignment. When you are done with this, the assignment is effectively over, and you can be confident that you will be able to turn in a working game.

However, you should test this part pretty thoroughly before moving on to the next part. Playing the game a lot can help you discover bugs in your code. The main problem to test is what happens when an object to be involved in multiple collisions. Or discovering that an object (asteroid, bullet, or ship) is deleted too soon.

How can you test this? Make a custom level file! Put two stationary asteroids in a file where it is easy to hit them at the same time.

8. Finish the Game

You now have a (mostly) working game. However, however, to truly be a working game, you have to be able to win or lose. So that is the final step.

To keep things simple (as there is no time left for anything more difficult), the base game only gives the player one life. So if the ship dies, the game is over. The game is also over if all of the planetoids are destroyed. Both of these need to be checked in the update method of Wave.

When the wave ends, and the player has either won or lost, you should put up one last message. Use a GLabel to put up a congratulating (or admonishing) message. Finally, you should change the state one last time to indicate that the game is over. This is the purpose of the state STATE_COMPLETE.

Pacing Yourself

This is the end of the basic game, and we expect you to finish it by Monday, December 9. If you want to add any additional features, you will either need to finish this early or get an extension on the assignment.

Additional Features

Our suggested timeline gives you just enough time to work on this assignment. But if you are able to finish early, then we will give you the opportunity to extend the game and try to make it more fun. While this is not required, this is an opportunity for extra credit. We will award up to 8 points for extra credit, according to how interesting your features are. However, you can only go above 100 if your features are truly extraordinary.

When you add new features, you might find yourself reorganizing a lot of the code above. You may add new methods or change any of the methods you have written. For example, you may want to add afterburner animations for the thrusters. You may even want to add new classes to support a UFO opponent.

You are allowed to change anything you want so long as you update the specifications to reflect the changes. There are only four things that you are not allowed to change.

• The game must be able to load wave1.json without any modifications to the files.
• Only cosmetic changes (graphics and sound) are allowed for wave1.json
• Any new game rules should only be present when a custom JSON file is loaded
• Constants may be changed, but the bullet fire rate is never allowed to be 0.

The second condition is the most important. If we load wave1.json, collisions work as normal and the win condition (destroy all asteroids) and lose condition (the ship dies) remain the same. You can add animations or sound, and change the game assets. But if you add new game features, like a UFO opponent, they cannot be present in that level file (or in any of the level files provided). You will need to make a custom level file. But you are allowed to change DEFAULT_WAVE to use your custom level file.

Everything else is fair game. However, we highly suggest that you save a copy of the basic game in a separate folder before you start to make major changes. That way you have something to revert to if things go seriously awry when implementing your features. Also, we suggest that you make sure to comment your code well in order to keep track of where you are in the coding process. As we have said before, make sure your basic game is working properly before you start on new features.

Once again, addition features are simply for extra credit. You can earn full points on this assignment with just the basic game. The purpose of these new features to allow you to earn back any points that you might miss for implementing a feature incorrectly. However, you cannot get back any points lost for writing bad specifications or for violating the 30-line rule, no matter how good your extra features are. And again, your features must be truly exceptional to earn more than 100. You cannot exceed 100 just for implementing our suggestions below.

Possible Features

Here are some possible ways to extend the game, though you should not be constrained by any of them. Make the game you want to make. We will reward originality more than we will reward quantity. While this is a fairly simple game, the design space is wide open with possibilities.

Multiple Lives

Historically, the base game included three lives (e.g. the ship could die three times before you lose). We removed it this year to cut down on the assignment length. But you can add it back in for one point of extra credit (this is one of the easiest extra features).

When the ship is destroyed, you shoul dpause the game by changing the state in Planetoids to STATE_PAUSED, not STATE_COMPLETE. If the player still has lives left after losing a ship, Planetoids should display a message (as you did on the welcome screen) that the player press ‘S’ to continue. As soon as the player presses this key, you should switch the state back to STATE_ACTIVE and start the game again. The wave will continue where it left off.

Force Field

One of the most annoying things about the base game is that, if your ship respawns on top of an asteroid, it is immediately destroyed. This can cause you to get unlucky and lose the game after just one life lost. To get around this, most asteroid games start you with a temporary force field that protects your ship for a second or two. You can see this feature in the feature-complete video at the start of this assignment.

This is another feature that was originally part of the assignment. However, this feature significantly complicates the code for the Ship class, and we cut it during early beta testing.

Multiple Waves

The easiest feature is to implement multiple waves. If the player completes a wave without losing all the ship lives, it is time for a new wave of asteroids. This is really easy, since all you have to do is make a new Wave object. The state STATE_CONTINUE indicates the transition from one wave to another.

For this to count as a proper feature, you need some way to decide which file to use for the new wave. One way to do this is to add a new entry to the JSON file. In addition to the keys "ship" and "asteriods", you could have a key "nextwave" which contains the name of the next JSON file to use.

One of the nice features of JSON files is that we can add new features to them without breaking our code. The old features are still there and still work. However, for style purposes, we recommend that you change the version number if you start adding elements to a JSON file. This is a way of indicating that it is changed from the original format. And remember that we require your game still be able to support wave1.json, which does not have a next wave.

Sound Effects

Another easy feature is to add appropriate sounds for game events. We have provided several audio files with the source code. You will want to look at them, but you are not restricted to only those sounds. Remember that it is a violation of the Academic Integrity Policy to use unlicensed copyrighted material.

To load an audio file, you simply create a Sound object as follows:

    pewSound = Sound('pew1.wav')

Once it is loaded, you can play it whenever you want (such as when the ship fires the laser) by calling pewSound.play(). The sound might get monotonous after awhile, so make the sounds vary, and figure out a way to let the user turn sound off (and on).

Read the online specification to see how to use Sound objects. You cannot replay a sound until the current version of the sound stops. So if you want to play the same sound multiple times simultaneously (such as if two aliens fire simultaneously), you will need two different Sound objects for the same sound file. Proper game audio can get really complicated and this is one of the professor’s active areas of research.

Important: Loading sounds can take a while. We recommend that you load all sounds you plan to use at either the start of the game or the start of a wave. If a sound has not loaded properly, there will be noticeable lag the first time that you play it.

Player Score

A large part of the challenge of Asteroids is getting a high score. Each time you break up or destroy an asteroid you get more points. You should display the score at all times using a GLabel object. Where you display it is up to you, but you should minimize its interferance with the game itself. Please do not make a new GLabel object each time the score changes. This will slow down the program tremendously. Simply change the text attribute in your GLabel object.

In classic Asteroids, this score carries over between waves. If you chose to implement multiple waves, then each wave after the first should start with the score from the previous wave. That would require you to track the score in Planetoids, as that is the only object remains for the duration of the entire game.

Afterburner Animation

In the original game, we can see flames coming from the back of the ship when we fire the thrusters. We have given you some files in Images for adding this feature to your ship. The file flame.png is designed so that if it is drawn on top of the ship centered, and at the same angle, it will put the flames at the back of the ship. Simply turn this image on and off as the player fires the thrusters.

If you want even more interesting animations, you can use a sprite. A sprite is a collection of images that you flip through to create an illusion of movement. You got some experience with one of these in the GUI lab. The file flames.png has flames of different sizes that you can cycle through to give the flames some movement. To use this sprite sheet, you need to make a GSprite object as follows:

    alien = GSprite(source='flame-sprites.png',format=(4,1),width=...,height=...)

The (4,1) indicate that the sprite has four rows of frames, each with only one column. The GSprite class has an attribute called frame which tracks which frame in the sprite sheet is currently displayed. At the start, the frame is always 0, showing no flames. To fire the thrusters, simply change the frame attribute.

UFO Enemies

In classic Asteroids, an UFO will occasionally appear on the screen and shoot at the player. The player needs to destroy the UFO or wait until it goes away. We have provided an image of UFO in the Images folder if you want to add this feature. The UFO is roughly circular, so you can handle collisions the same way you do with any object on the screen.

You do not need to understand artificial intelligence to implement the UFO. The original game moves the UFO randomly, but makes sure that the UFO bullets always fire in the direction of the player’s ship. To move randomly, generate a random velocity vector and add it to the position. To keep the ship from moving too erratically, only generate a new velocity vector every few frames (like we do with the bullets), and make all of the UFO velocities have the same speed.

If you do add a UFO enemy, we recommend that you update the JSON files to specify how the UFO appears. Specify when the UFO comes on the screen, where it comes from, and when it will leave (if not destroyed). Doing it this way allows you to control the difficulty of the level by making the UFO harder or easier. This even allows you to put multiple UFOs on the screen at the same time.

Your Imagination

What else have you always wanted a game like this to do? Would you like it to be more of a survival horror with crafting like Sinistar?
Do want power-ups or special combat maneuvers like the game 1942? With that said, do not go too wild with power-ups or collectibles. We much prefer a few innovations that greatly improve the play as opposed to a screen filled with gizmos.

You also are not restricted to the art assets that we have provided. You can add or replace whatever art you want provided that you respect copyright.

Again, you can make any modifications to the game you want, but the core gameplay must be there. If we load the game on our wave1.json, it should play as normal with nothing more than cosmetic differences.

Finishing Touches

Before submitting anything, test your program to see that it works. Play for a while and make sure that as many parts of it as you can check are working. Remember to check the win and lost conditions.

When you are done, reread the specifications of all your methods and functions (including those we stubbed in for you), and be sure that your specifications are clear and that your functions follow their specifications. If you implemented extensions, make sure your documentation makes it very clear what your extensions are.

As part of this assignment, we expect you to follow our style guidelines:

• You have indented with spaces, not tabs (VS Code handles this automatically).
• Classes are separated from each other by two blank lines
• Methods are separated from each other by a single blank line
• Class contents are ordered as follows: getters/setters, initializer, non-hidden methods, hidden methods
• Lines are short enough that horizontal scrolling is not necessary (about 80 chars is long enough)
• The specifications for all of the methods and classes are complete
• Specifications are immediately after the method header and indented
• No method is more than 30 lines long, not including the specification

We are serious about the last one. This is a potential 10 point deduction.

Turning it In

You are potentially modifying a lot of files in this assignment. At a bare minimum, your are modifying app.py, wave.py, and models.py. You might be modifying consts.py. You might have extra art and sound files.

To simplify the submission process, we are not asking you upload each individual file. Instead, put all your files in a zip file called planetoids.zip and submit this instead. We need to be able to play your game, and if anything is missing, we cannot play it.

In addition, you should create a text file called features.txt. In this file, you should write a brief description of your additional feature(s). Tell us what you were trying to do and how you did it. If you used any art or sound assets that required an attribution license, you should put that attribution here. Include this in the zip file you submit. If you do not include this file, we will assume that you did not add an extra features, and you will not get extra credit.

Completing the Survey

One last time, we need you to do a survey. The survey should be done individually (even if you worked in a group). As always, the survey will ask about things such as how long you spent on the assignment and your impression of the difficulty. Please try to complete the survey within a day of turning in this assignment. Remember that participation in surveys comprises 1% of your final grade.
